● Product Parameters

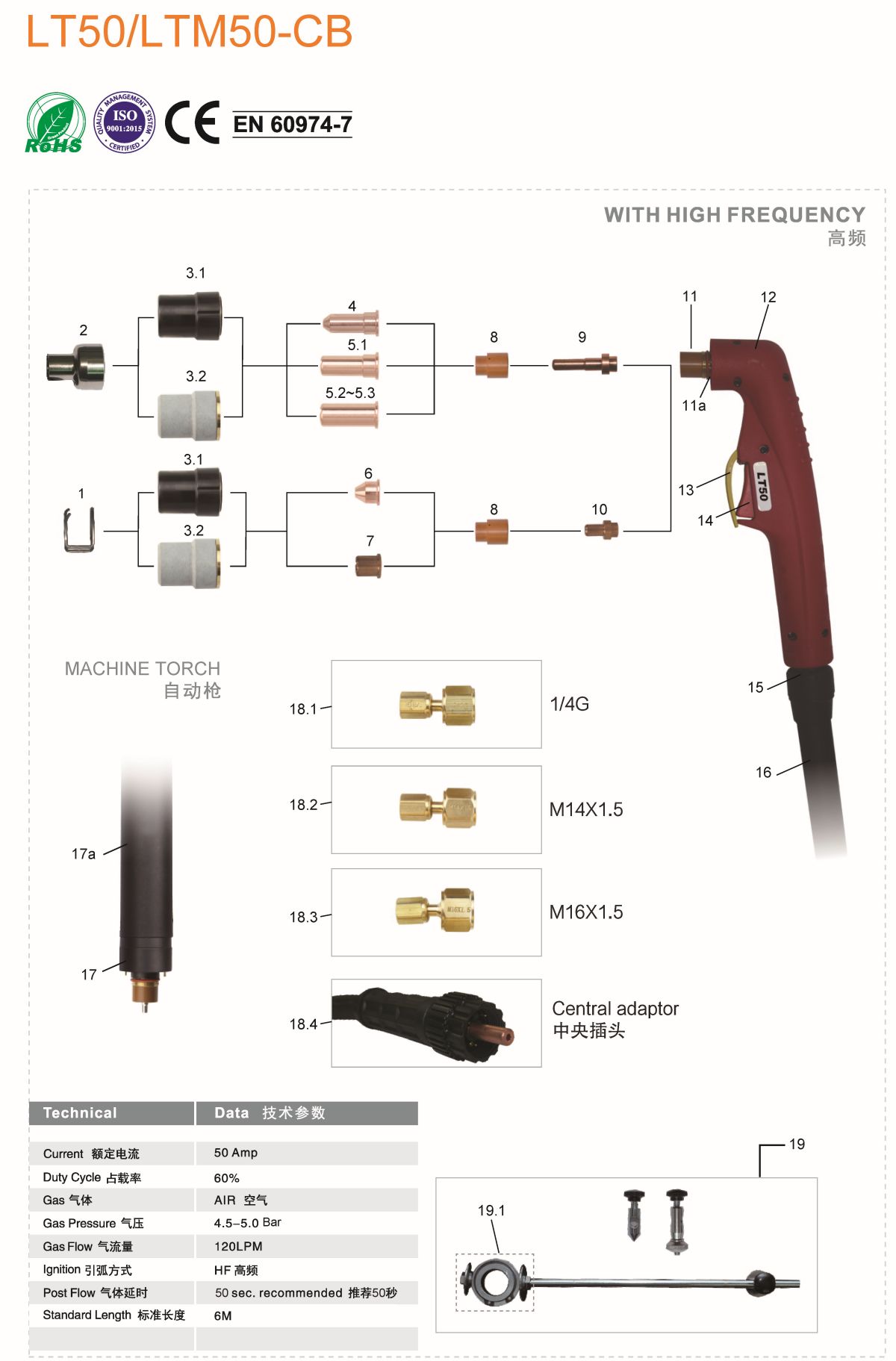

| Position | Code | Ref. | Description |
| 1 | KSM0603 | Spacer spring/LT50 | |
| 2 | KSM0006 | Shield cap for extended tip/LT50 | |
| 3.1 | KVS0008-03 | 5.710.121 | Outside nozzle/bakelite/LT50 |
| 3.2 | KVS0008-05 | Outside nozzle/maximum life/gray glass fiber/LT50 | |
| 4 | KVU0069-10 | 1306 | Extended conical tip ф1.0mm/LT50 |
| 5.1 | KVU0019-10 | 1370 | Extended tip ф1.0mm/LT50 |
| 5.2 | KVU0018-10 | 1395 | Extended tip ф1.0mm/LT50-70 |
| 5.3 | KVU0018-11 | Extended tip ф1.1mm/LT50-70 | |
| 6 | KVU0064-10 | 1305 | Conical tipф1.0mm/LT50-70 |
| 7.1 | KVU0033-10 | 1396 | Tip ф1.0mm/LT50-70/L=12.3mm |
| 7.2 | KVU0033-11 | Tip ф1.1mm/LT50-70/L=12.3mm | |
| 7.3 | KVU0033-12 | Tip ф1.2mm/LT50-70/L=12.3mm | |
| 7.4 | KVU0065-10 | 1304 | Tip ф1.0mm/LT50-70/L=11.2mm |
| 8 | KVF0002 | Diffuser LT50-70 | |
| 9 | KVB0015 | 1518-HF | Extended electrode HF Plasma LT50 |
| 10 | KVB0062 | 1521-HF | Electrode HF Plasma LT50 |
| 11 | KVZ0050 | Plasma torch head LT50 | |
| 11a | KFT0707 | "O‘ RING ф 13x16.6x1.8MM /LT50-70/RED SILICONE | |
| 12 | KGV0039 | PLASMA HANDlE MANUALE/CB50-70/RED | |
| 13 | KHJ0722 | PROTECTION PART/PLASMA/YELLOW | |
| 14 | KHQ0070 | 185.0031 | TRIGGER RED |
| 15 | KHJ0893 | TIG JOINT/SMALL/NEW TYPE | |
| 16.1 | KVN00006066-00 | CABLE ASSEMBELY/LT50-70/6MMQ/6M 1/8G | |
| 16.2 | KVN00006060-00 | CABLE ASSEMBELY/LT50-70/6MMQ/6M CENTER ADAPTER | |
| 16.3 | KVN10006060-00 | CABLE ASSEMBELY/LTM50-70/6MMQ/6M CENTER ADAPTER | |
| 16.4 | KVN10006066-00 | CABLE ASSEMBELY/LTM50-70/6MMQ/6M 1/8G | |
| 17 | KVZ0085 | PLASMA CUTTING TORCH HEAD LTM50 | |
| 17a | KGV0013 | PLASMA HANDlE KIT/LTM | |
| 18.1 | KZT5687 | CONNETECING ADAPTER 1/8G-1/4G | |
| 18.2 | KZT5685 | CONNETECING ADAPTER 1/8G-M14X1,5 | |
| 18.3 | KZT5689 | CONNETECING ADAPTER 1/8G-M16X1,5 | |
| 18.4 | KZX0078 | CENTRE ADAPTER TORCHSIDE PLASMA 5 PINS | |
| 19 | KSM0081 | Circle cutting attachment/LT50 | |
| 19.1 | KSM0082 | 166 | Wheel spacer with spanner/LT50 |
● Complete Torch
| Code | Ref. | Description | |
| KVT6800 | 1526 | Plasma cutting torch LT50/6m 1/8G | |
| KVT6805 | Plasma cutting torch LT50/6m 1/4G | ||
| KVT6806 | Plasma cutting torch LT50/6m M14x1.5 | ||
| KVT6809 | Plasma cutting torch LT50/6m M16x1.5 | ||
| KVT6807 | 1574 | Plasma cutting torch LT50/6m central adaptor | |
| KVT6730 | Plasma cutting auto torch LTM50/6m 1/8G | ||
| KVT6722 | Plasma cutting auto torch LTM50/6m 1/4G | ||
| KVT6723 | Plasma cutting auto torch LTM50/6m M14x1 | ||
| KVT6724 | Plasma cutting auto torch LTM50/6m M16x1.5 | ||
| KVT6736 | Plasma cutting auto torch LTM50/6m central adaptor | ||
