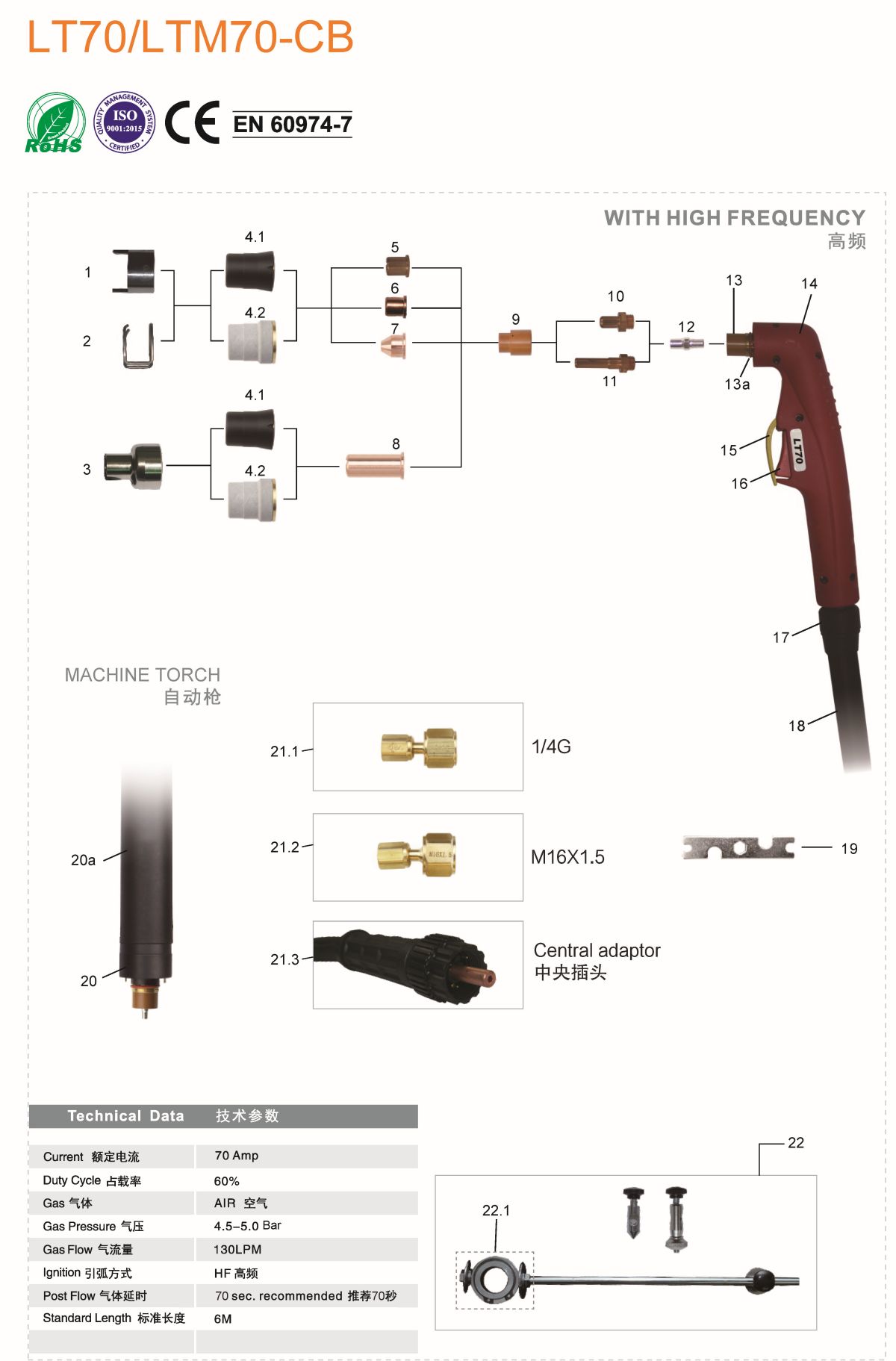

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KSM6662 | 1405 | Double pointed spacer/LT70 |
| 2 | KSM0060 | 1394 | Spacer spring/LT70 |
| 3 | KSM0007 | Shield cap for Extended tip/LT70 | |
| 4 | Outside nozzle | ||
| 4.1 | KVS0087-03 | 5.710.191 | Outside nozzle/bakelite/LT70 |
| 4.2 | KVS0087-05 | Outside nozzle/maximum life/gray glass fiber/LT70 | |
| 5 | Tip | ||
| 5.1 | KVU0065-09 | 1309 | TipΦ0.9mm/LT50-70/L=11.2mm |
| 5.2 | KVU0033-10 | 1396 | TipΦ1.0mm/LT50-70/L=12.3mm |
| 5.3 | KVU0033-11 | TipΦ1.1mm/LT50-70/L=12.3mm | |
| 5.4 | KVU0033-12 | TipΦ1.2mm/LT50-70/L=12.3mm | |
| 6 | Tip | ||
| 6.1 | KVU0028-10 | Flat tip Φ1.0MM | |
| 6.2 | KVU0028-12 | Flat tip Φ1.2MM | |
| 7 | Tip | ||
| 7.1 | KVU0064-10 | 1305 | Conical tip 1.0/LT50-70 |
| 7.2 | KVU0064-12 | Conical tip 1.2/LT50-70 | |
| 8 | Tip | ||
| 8.1 | KVU0018-10 | 1395 | Extended tip Φ 1.0mm/LT50-70 |
| 8.2 | KVU0018-11 | Extended tip Φ 1.1mm/LT50-70 | |
| 8.3 | KVU0018-12 | Extended tip Φ 1.2mm/LT50-70 | |
| 9 | KVF0002 | Diffuser LT50-70 | |
| 10 | KVB0018 | 1402 | Electrode HF Plasma LT70 |
| 11 | KVB0019 | 1368 | Extended electrode HF Plasma LT70 |
| 12 | KZN0766 | 3.065.204 | Air tube/LT70 |
| 13 | KVZ0015 | Plasma torch head LT70 | |
| 13a | KFT0707 | "O"ring Φ12.42x1.78mm in silicon red | |
| 14 | KGV0039 | Plasma handle manual/CB50-70/Red | |
| 15 | KHJ0722 | Protection part/Plasma/Yellow | |
| 16 | KHQ0070 | 185.0031 | Trigger |
| 17 | KHJ0893 | Joint/small/new type | |
| 18 | Cable assembly | ||
| 18.1 | KVN00006066-00 | Cable assembly/LT50-70/6MMQ/6M ATT.1/8G | |
| 18.2 | KVN00006060-00 | Cable assembly/LT50-70/6MMQ/6M center adaptor | |
| 18.3 | KVN10006060-00 | Cable assembly/LTM50-70/6MMQ/6M center adaptor | |
| 18.4 | KVN10006066-00 | Cable assembly/LTM50-70/6MMQ/6M ATT.1/8G | |
| 19 | KCG6006 | Spanner for Plasma | |
| 20 | KVZ0073 | 1349 | Plasma torch head LTM70 |
| 20a | KGV0013 | Fiber glass position tube/LTM | |
| 21 | Adaptor | ||
| 21.1 | KZT5687 | Connecting adaptor 1/8G-1/4G | |
| 21.2 | KZT5689 | Connecting adaptor 1/8G-M16×1.5 | |
| 21.3 | KZX0078 | Central adaptor torch side Plasma 5 pins | |
| 22 | KSM0029 | Circle cutting attachment/LT70 | |
| 22.1 | KSM0028 | Wheel spacer with spanner/LT70 |
● Complete Torch
| Code | Ref. | Description | |
| KVT6870 | 1564 | Plasma cutting torch LT70/6m 1/8G | |
| KVT6876 | Plasma cutting torch LT70/6m 1/4G | ||
| KVT6875 | Plasma cutting torch LT70/6m M16×1.5 | ||
| KVT6877 | 1573 | Plasma cutting torch LT70/6m central adaptor | |
| KVT6740 | 1563 | Plasma cutting auto torch LTM70/6m 1/8G | |
| KVT6742 | Plasma cutting auto torch LTM70/6m 1/4G | ||
| KVT6744 | Plasma cutting auto torch LTM70/6m M16×1.5 | ||
| KVT6746 | 1566 | Plasma cutting auto torch LTM70/6m central adaptor | |
