● Product Parameters

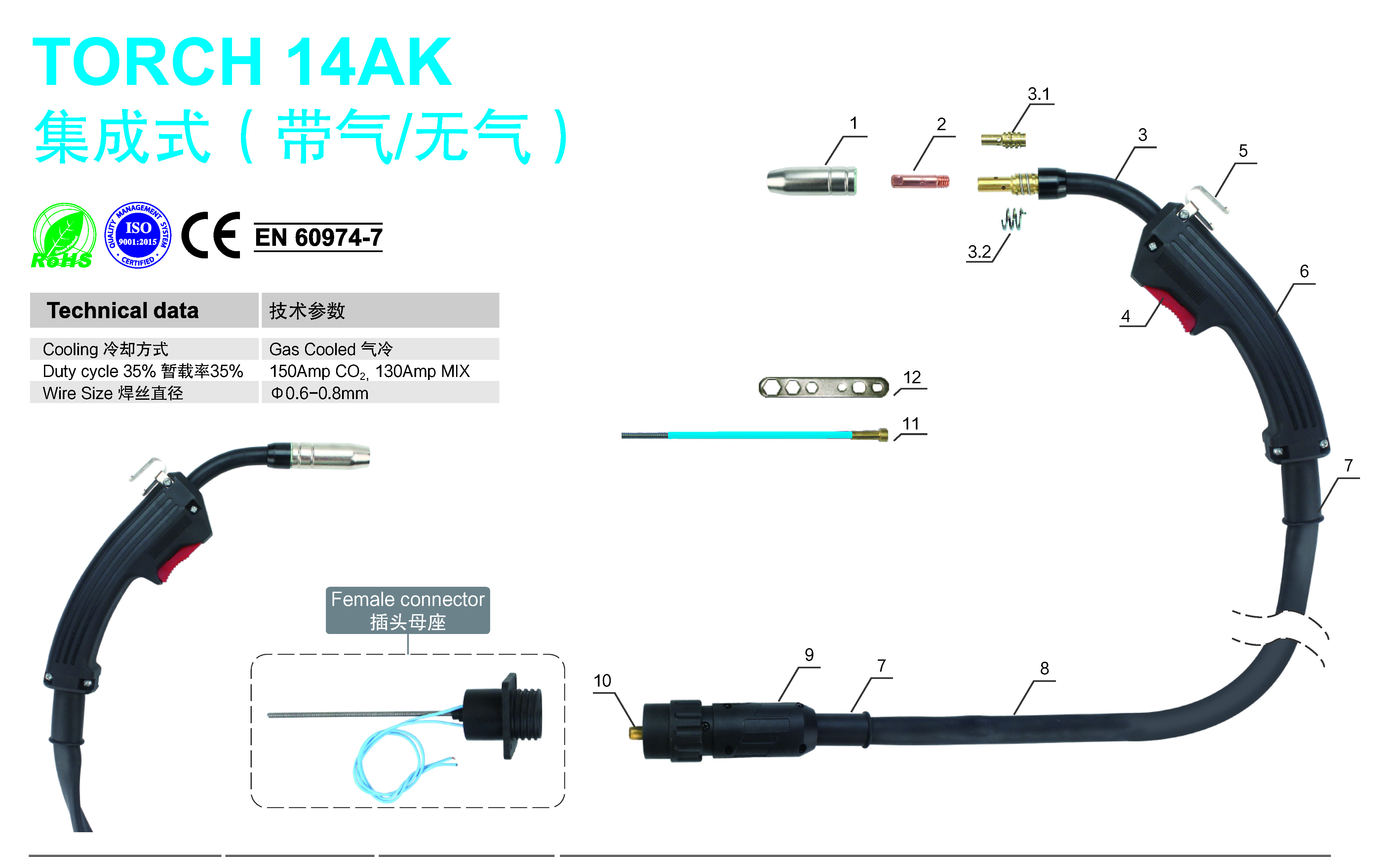

| Position | Code | Ref. | Description |
| 1 | KCS0063-05 | Gas nozzle Φ12mm 14-15AK/0.8mm/brass/E | |
| 2 | KCU0056-08 | Contact tip/Φ0.8mm/M6*25/E | |
| 3 | KCZ0002-15 | Torch head 45°/MINI15/short brass adapter/with valve/euro | |
| 3.1 | KZH0672 | Gas diffuser/mini15 | |
| 3.2 | KFT0808 | 2.0058 | Nozzle spring 15AK |
| 4 | KHQ0260-01 | Trigger/MINI15/2020 | |
| 5 | KFT0971 | Hook up/MINI15 | |
| 6 | KCV0051-01 | MINI15 grip handle/Φ12/L23.6/black/2020 | |
| 7 | KHJ0609 | Cable support/soft plastic | |
| 8 | KCN6778-30 | Cable assembling with gas tube 2.5M | |
| 9 | KHJ0108 | Back box hole/MINI15/nylon | |
| 10 | KTB0053-01 | Central adapter body/MINI15/nylon/total | |
| 11 | KKC0880 | Brass liner Φ0.4X3.4X1.4 L=2.6M | |
| 12 | KCG6000 | Spanner for MIG | |
| Complete Torch | Female connector |
| Code | Ref. |
Description |
|
| KCT2046-30 | MINI15 torch/2.5m/with gas tube/brass valve/replacable liner | ||
| KCT2146-30 | MINI15 torch/2.5M/non gas tube/replacable liner | ||
| KTG0064-01 | Welder end/mini15/set/with gas | ||
| KTG0064-02 | Welder end/mini15/set/non gas | ||
