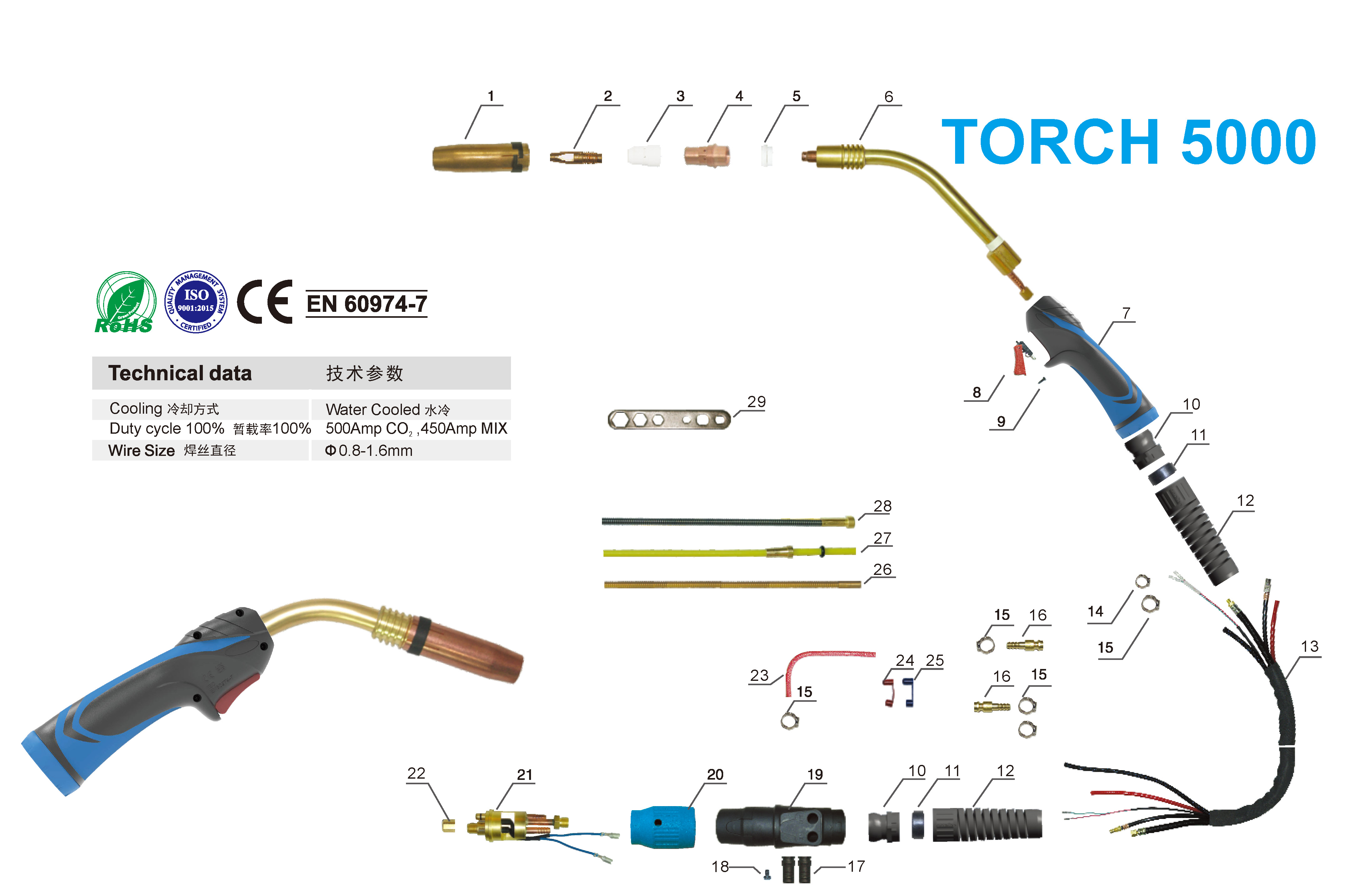

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KCS0720 | Gas nozzleΦ16mm | |
| 2 | KCU0807-12 | Contact tipΦ1 .2mmE-CU/M10*40 | |
| 3 | KCF0532 | 42.0100.1007 | White ceramic gas diffuser |
| 4 | KCF0003 | 42.0001.5122 | Gas Diffuser |
| 5 | KZH1235 | 42.0100.1016 | Insulator ring |
| 6 | KCI0053 | Torch head 5000 | |
| 7 | KCV0890-01 | MIG handle Blue/Grip | |
| 8 | KHQ0070 | 185.0031 | Trigger |
| 9 | KFT0874 | Screw M3*10 | |
| 10 | KHJ0021 | Joint for MIG handle | |
| 11-1 | KHJ0852 | HOUSING RING/BIG/INSIDE | |
| 11-2 | KHJ0855 | HOUSING FOR PL ASMABACK BOX/BIG | |
| 12 | KHJ0822 | Spring for cable support | |
| 13 | KCD0067 | Cable assenbly 3m 401D-501D | |
| 14 | KFT0722 | Clamp Φ9.5 | |
| 15 | KFT0730 | Clamp Φ8.7 | |
| 16 | KZT8070-02 | Quick connector waterΦ6/APH | |
| 17 | KHJ0764 | 190.0099 | Hose support for water cooled rear box |
| 18 | KFT0063 | Screw M4*6 | |
| 19 | KHJ0763 | Back box for water cooled | |
| 20 | KHJ0072 | Adaptor nut/Blue | |
| 21 | KTB0057 | 501.2156 | Euro central adaptor body/water cooling |
| 22 | KZT0071 | 501.0082 | Liner nut |
| 23 | KKH0605 | Output water tube M5*8mm 0.8m red | |
| 24 | KHJ0306 | Plastic support for water cooling connector Red | |
| 25 | KHJ0308 | Plastic support for water cooling connector Blue | |
| 26 | KIC0226 | Brass terminalp 3.0*4.5mm 0.3 5m | |
| 27 | KIC0210 | 126.0039 | Teffion linera 3.0*4.5mm 3m Yellow |
| 28 | KIC0580 | 122.0056 | Steel linerΦ1.2-1.6mm 3m |
| 29 | KCG6000 | Spanner for MIG torches |
● Complete Torch
| Code | Ref. | Description | |
| ICH2338-36 | MIG 5000 torch 3m euro adaptor/spring pins | ||
| ICH2339-36 | MIG 5000 torch 4m euro adaptor/spring pins | ||
| ICH2335-36 | MIG 5000 torch 5m euro adaptor/spring pins | ||
