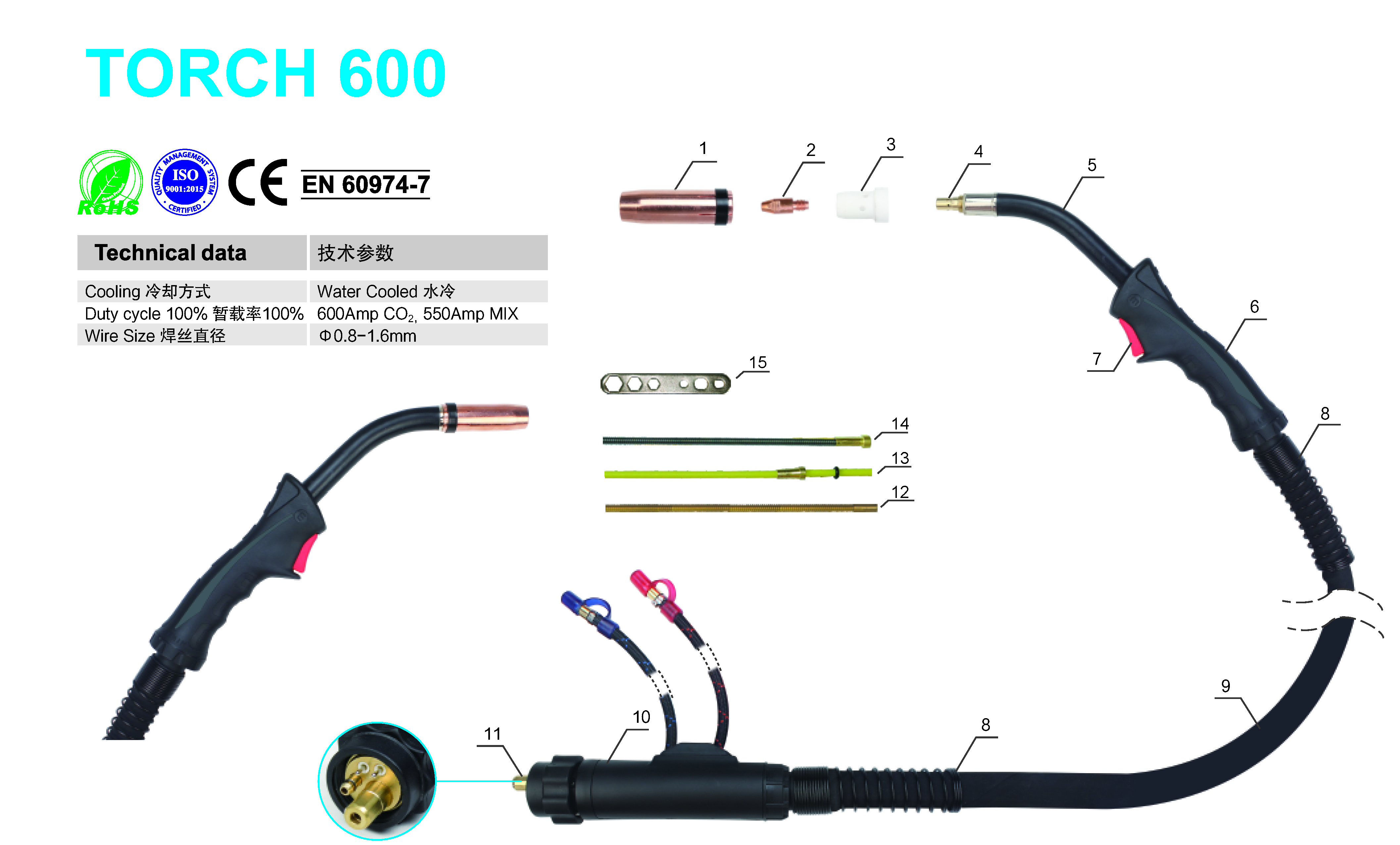

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KCS0713 | 145.0085 | Gas nozzle Φ16mm |
| 2 | KCU0005-12 | 140.0442 | Contact tip/Φ1.2mm E-CU/M8×30 |
| 3 | KCF0524 | 30.019 | White ceramic gas diffuser 401D-501D |
| 4 | KCF0021 | 142.0022 | Contact tip holder M8×25mm |
| 5 | KCK0067 | Torch head/555SC | |
| 6 | KCV0044 | MIG grip handle/euro type/500HC/PA66+GF30%/black body/rubber RAL 5018/MINOO/2017 | |
| 7 | KHQ0070 | Trigger red | |
| 8 | KFT0870 | Spring/cable support 401D-501D/black | |
| 9 | KCD0018 | Cable assembly 3M | |
| 10 | KHJ0772 | Back box hole 14 for water cooling | |
| 11 | KTB0058 | Water euro central adapter body/spring pins/with nut | |
| 12 | KKC0226 | Brass liner Φ4.5X2.1mm/0.35m | |
| 13 | KKC0210 | 126.0039 | Teflon liner Φ3.0X4.5mm/3m/yellow |
| 14 | KKC0580-02 | Steel liner Φ1.2-1.6mm/3.4m | |
| 15 | KCG6000 | Spanner for MIG |
● Complete Torch
| Code | Ref. | Description | |
| KCH2698 | MIG 600 torch 3m with spring pins | ||
| KCH2699 | MIG 600 torch 4m with spring pins | ||
| KCH2695 | MIG 600 torch 5m with spring pins | ||
