● Product Parameters

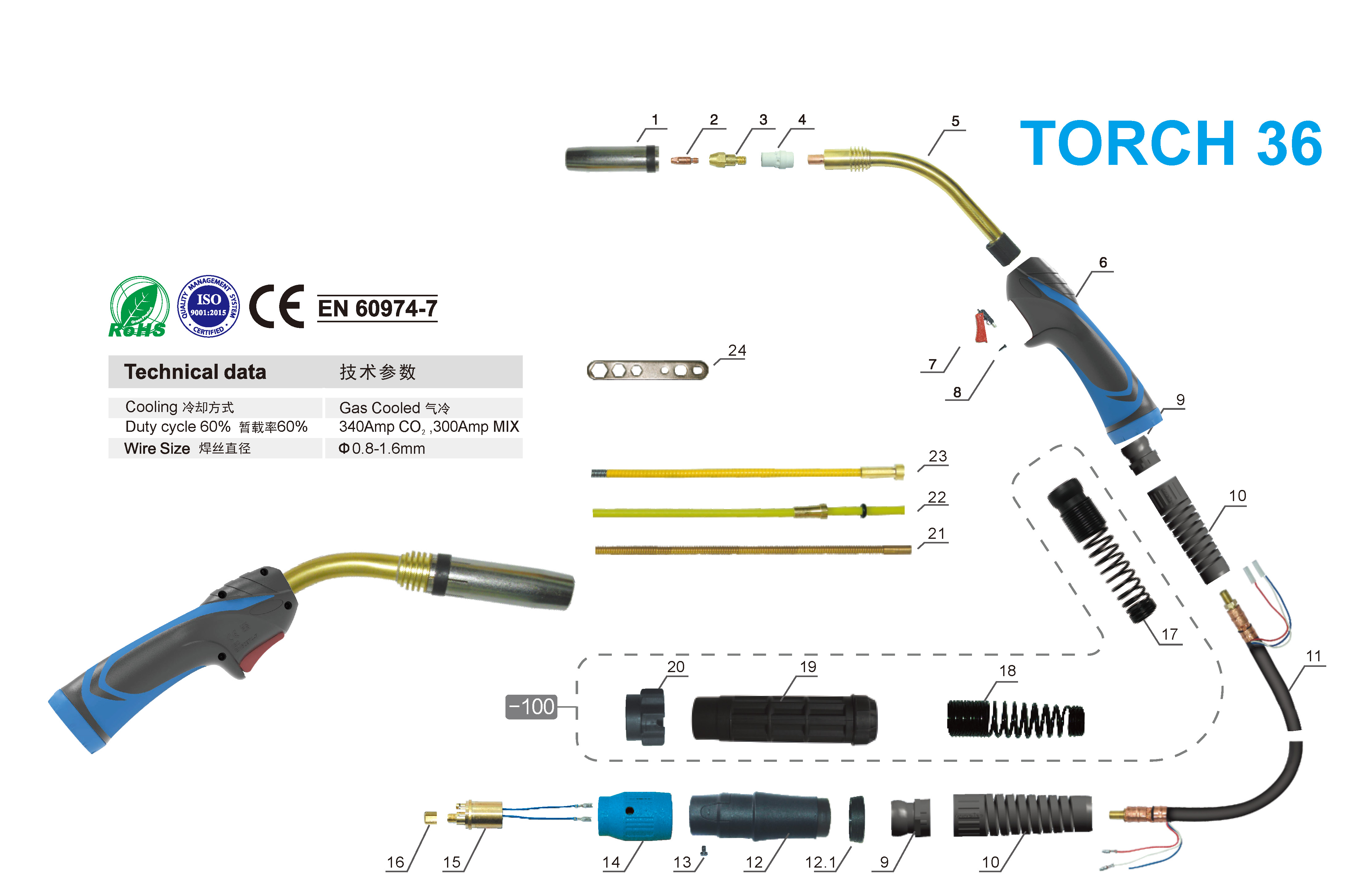

| Position | Code | Ref. | Description |
| 1 | ICS0072 | 145.0078 | Gas nozzle Φ16mm 36KD |
| 2 | ICU0005-12 | 140.0442 | Contact tip/Φ1.2mm E-CU/M8×30 |
| 3 | ICU0687 | Contact tip/holder 36KD M8 32MM | |
| 4 | ICF0562 | 14.0023 | White ceramic gas diffuser 36KD |
| 5 | ICZ0089 | 014.0006 | Torch head 36KD |
| 6 | ICV0890-01 | MIG grip handLe/blue body and black rubber/without logo/ | |
| 6.1 | ICV0890 | MIG grip handle/blue body and black rubber/with innotec logo/ | |
| 7 | IHQ0070 | 185.0031 | Trigger red |
| 8 | IFT0874 | Screw D.3x10 UNI9707 | |
| 9 | IHJ0021 | Ball joint | |
| 10 | IFT0882 | Spring/cable support/gas | |
| 11 | ICN0670 | 160.0364 | Coaxial cable 3M |
| 12 | IHJ0703 | Back box hole | |
| 12.1 | IHJ0715 | Closing ring/grip handle | |
| 13 | IFT0063 | Screw M4X6 UNI 6107 | |
| 14 | IHJ0072 | Gun plug nut new blue | |
| 15 | ITB0059 | 501.2155 | Euro central adapter body/spring pins |
| 16 | IZT0071 | 501.0082 | Liner nut |
| 17 | IZH0864 | Joint with spring | |
| 18 | IFT0897 | Spring/cable support/black | |
| 19 | IHJ0645 | Back box hole | |
| 20 | IHJ0070 | Gun plug nut | |
| 21 | IIC0220 | Brass liner Φ4.5X2.1mm 0.35M | |
| 22 | IIC0160 | 126.0039 | Teflon liner Φ3.0X4.5mm 3M yellow |
| 23 | IIC0560 | 124.0041 | Insulated steel liner Φ1.2-1.6mm 3M yellow |
| 24 | ICG6000 | Spanner for mig |
● Complete Torch
| Code | Ref. | Description | |
| KCT2998-36 | MIG 36KD torch 3m euro adaptor/spring pins | ||
| KCT2999-36 | MIG 36KD torch 4m euro adaptor/spring pins | ||
| KCT2995-36 | MIG 36KD torch 5m euro adaptor/spring pins | ||
| KCT2998-100 | MIG 36KD torch 3m with spring pins/innotec; | ||
| KCT2999-100 | MIG 36KD torch 4m with spring pins/innotec | ||
| KCT2995-100 | MIG 36KD torch 5m with spring pins/innotec | ||
