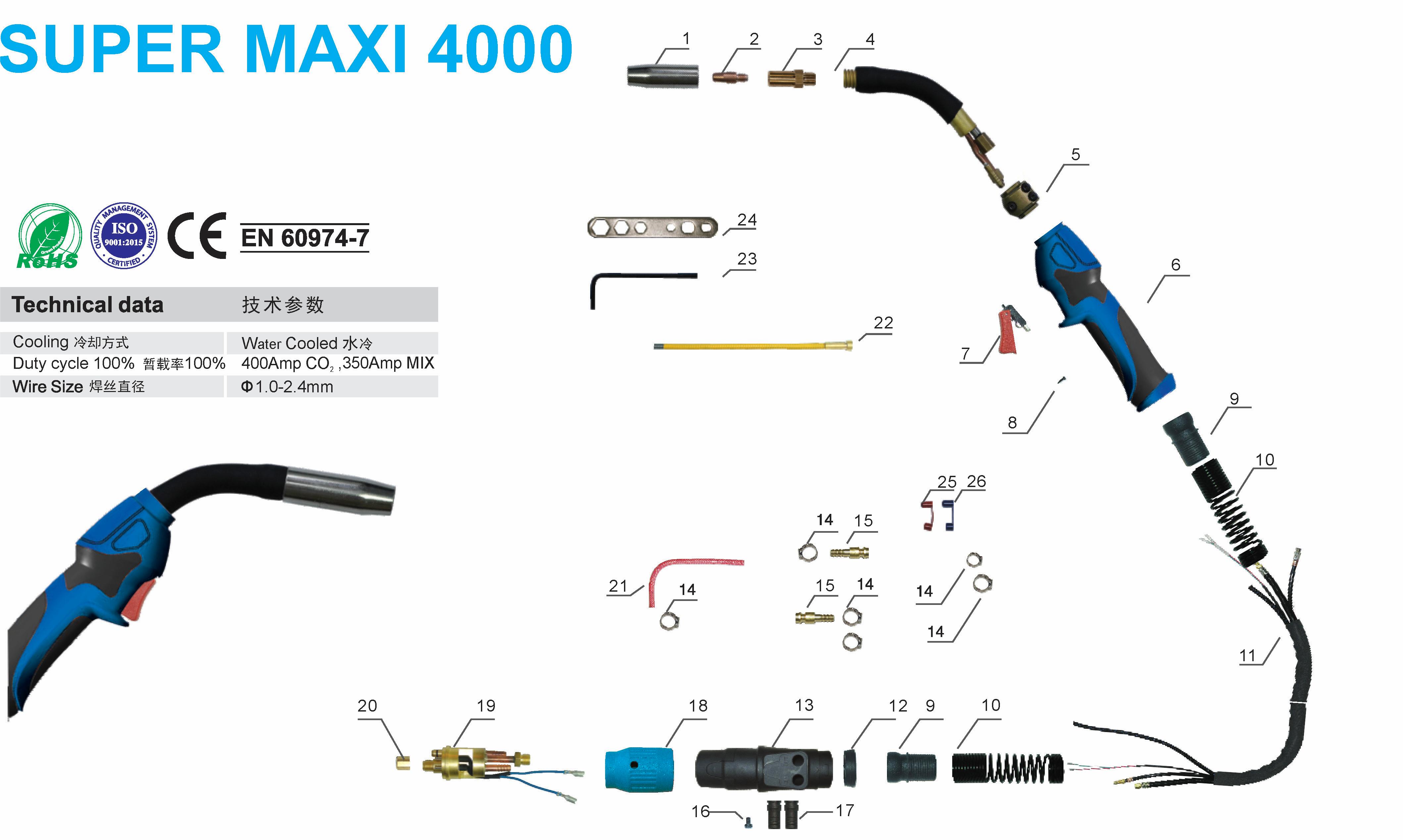

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KCS0067 | MC0012 | Gas Nozzle Φ18 |
| 2 | KCU0005-12 | MD0005-12 | Contact tip Φ1.2/M8 |
| 3 | KCF0004 | ME0009 | Gas diffuser |
| 4 | KCI0061 | MG0016 | Torch head |
| 5 | KCG0027 | MT0072 | Adjusting Block Kit Clamp |
| 6 | KCV0855-01 | Handle | |
| 7 | KHQ0070 | BX0020 | Trigger |
| 8 | KFT0874 | Screw 3.0*16 | |
| 9 | KHJ0777 | BX0222 | Joint for MIG handle |
| 10 | KFT0870 | EA0320 | Spring cable support |
| 11 | KCD0077 | MN0022 | Cable assenbly |
| 12 | KHJ0715 | BW0265 | Handle closing ring |
| 13 | KHJ0763 | Back box for water cooled torches | |
| 14 | KFT0722 | ClampΦ9.0mm | |
| 15 | KZT8070 | Quick connector waterΦ6mm | |
| 16 | KFT0063 | Screw M4*6 | |
| 17 | KFT0764 | Hose support for water cooled rear box | |
| 18 | KHJ0072 | Adaptor nut /Blue | |
| 19 | KTB0607 | AR0102 | Euro centre adaptor/water/maxi/spring pin |
| 20 | KZT0071 | IFA0026 | Liner nut |
| 21 | KKH0605 | QB0105 | EPDM output water tube Φ 5*8mm 0.8m red |
| 22 | KIC0590 | GM0540 | Insulated Steel Liner 1.2-1.6/3m/Yellow |
| 23 | KCG6007 | EA0297 | Spanner for pan torch |
| 24 | KCG6000 | Spanner for MIG | |
| 25 | KHJ0306 | Plastic support for water cooling connector red | |
| 26 | KHJ0308 | Plastic support for water cooling connector blue |
● Complete Torch
| Code | Ref. | Description | |
| KCH7898-36 | MB2343 | MIG MAXI 4000 torch 3m with spring pins | |
| KCH7899-36 | MB2344 | MIG MAXI 4000 torch 4m with spring pins | |
| KCH7895-36 | MB2345 | MIG MAXI 4000 torch 5m with spring pins | |
