    SUPER MAXI 450

    SUPER MAXI 450

    Product Details

    ● Product Parameters

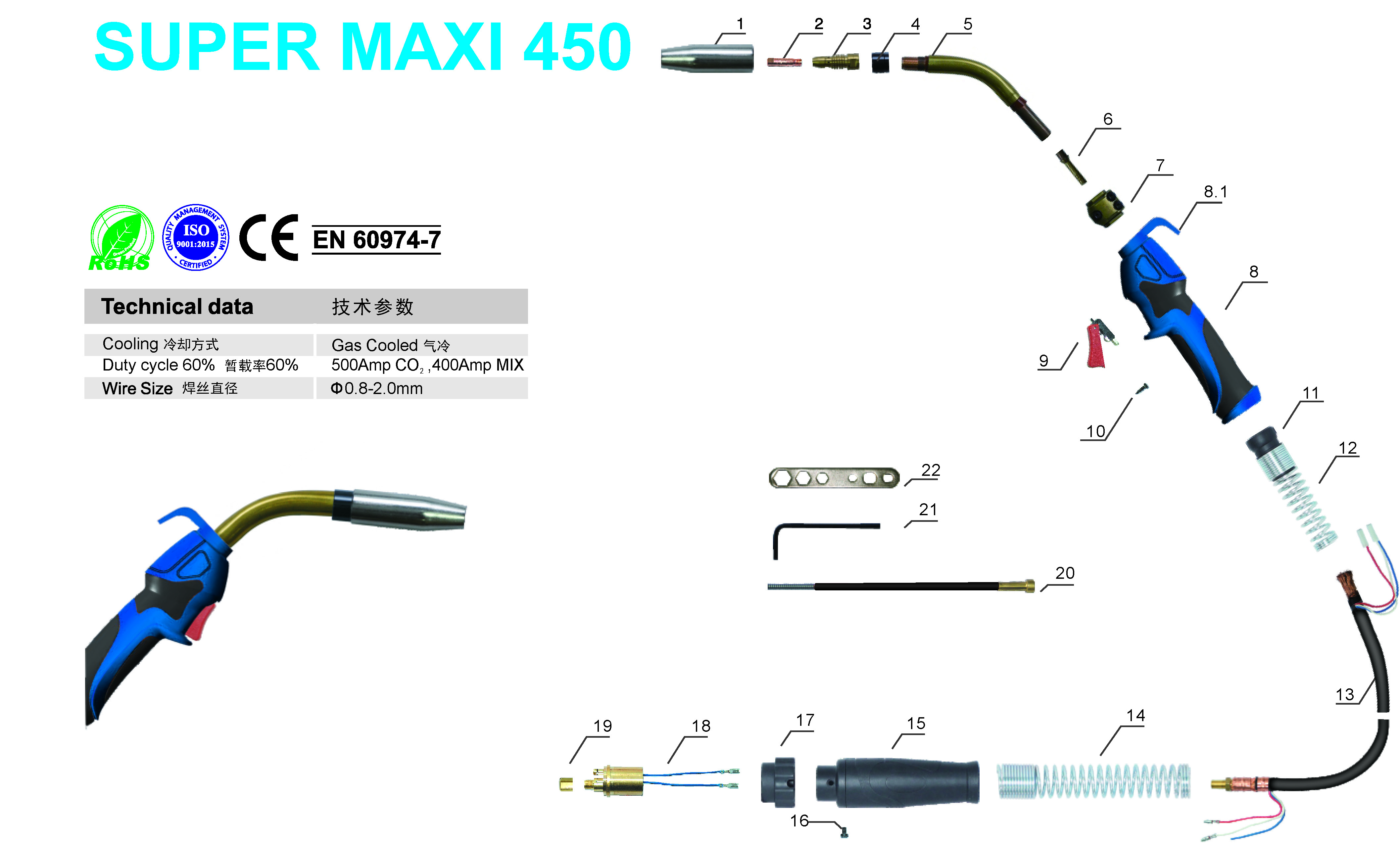

    Super Maxi 450
    Position Code Ref. Description
    1 KCS0067 MC0012 Gas Nozzle Φ18
    2 KCU0005-12 MD0005-12 Contact tip Φ1.2/M8
    3 KCF0001 ME0006 Gas diffuser
    4 KCK0637 MF0182 Insulator for Torch head
    5 KCZ0031 MF0086 Torch head
    6 KTY 0684 AU0028 Back fitting coaxial cable of MAXI
    7 KCG0027 MT0072 Adjusting Block Kit Clamp
    8 KCV0855-01   Handle
    8.1 KHJ0673   Hanger for handle Φ20
    9 KHQ0070 BX0020 Trigger
    10 KFT0874   Screw 3.0*10
    11 KHJ0777 BW0222 Joint for MIG handle
    12 KFT0876-01   Spring for cable support/Blue and white zinc plating
    13 KCN0794 M H0249 Coaxial cable 3m
    14 KFT0824   Spring for cable support/Blue and white zinc plating
    15 KHJ0872   Back box with closing ring
    16 KFT0063 EA0018 Screw M4*6
    17 KHJ0070   Adaptor nut
    18 KTB0038 AR0083 Central adaptor TW/Euro M12*1/Spring pins
    19 KZT0072 FA0027 Liner nut M11*1
    20 KIC0068-06   Steel liner 3.4m 1.2-1.6mm
    21 KCG6007   Spanner for pan torch
    22 KCG6000   Spanner for MIG



    ● Complete Torch

    Code Ref. Description
    KCT1915-36 MA6465 MIG MAXI 450 torch 3m with spring pins
    KCT1911-36 MA6466 MIG MAXI 450 torch 4m with spring pins
    KCT1912-36 MA6467 MIG MAXI 450 torch 5m with spring pins
