● Product Parameters

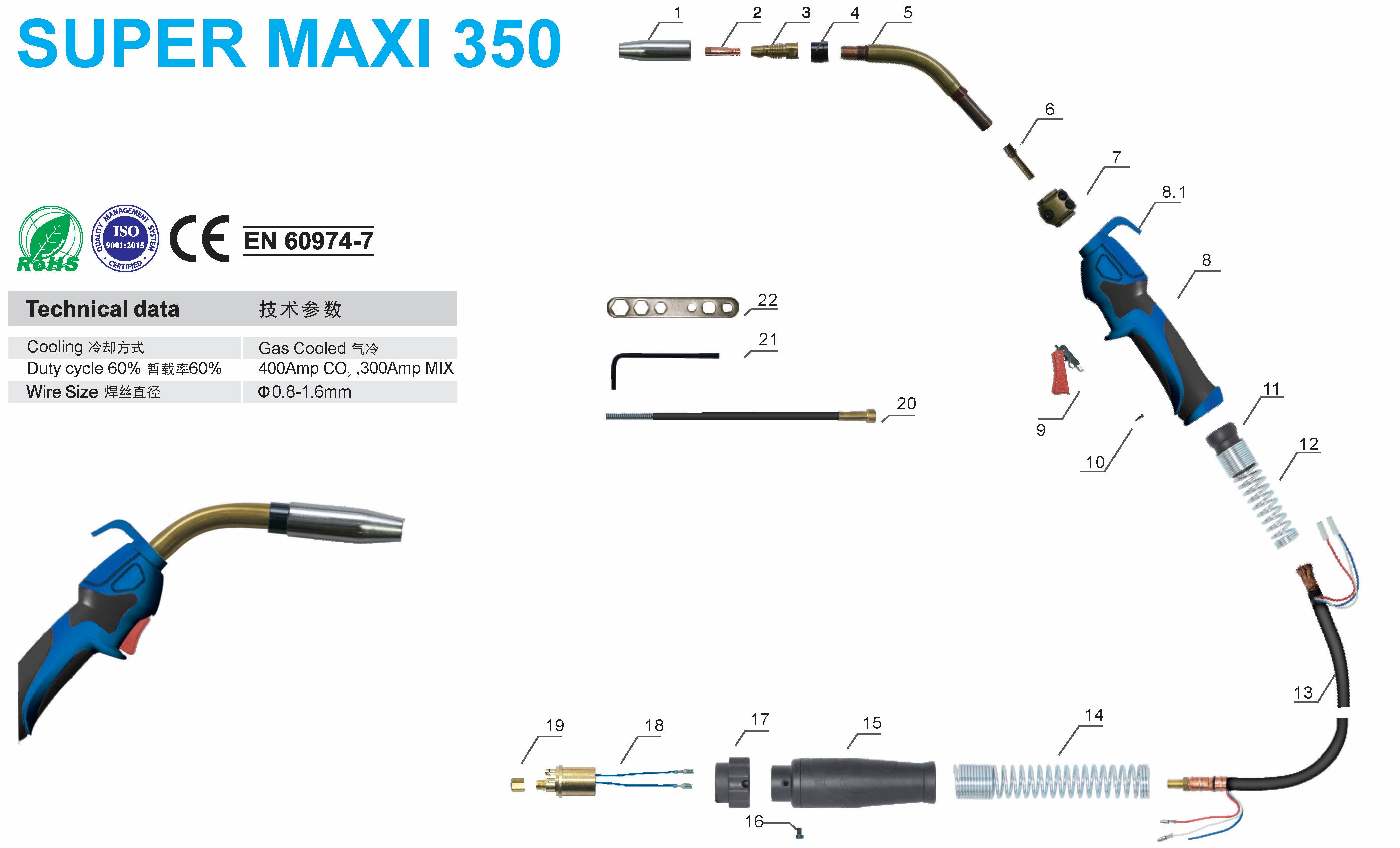

| Position | Code | Ref. | Description |
| 1 | KCS0067 | MC0012 | Gas Nozzle Φ18 |
| 2 | KCU0009-12 | MD0004-12 | Contact tip Φ1.2 |
| 3 | KCF0008 | ME0003 | Gas diffuser |
| 4 | KCK0637 | MQ0182 | Insulator for Torch head |
| 5 | KCZ0792 | MF0247 | Torch head |
| 6 | KTY 0684 | AU0028 | Back ftting coaxial cable |
| 7 | KCG0027 | MT0072 | Adjusting Block Kit Clamp |
| 8 | KCV0855-01 | Handle | |
| 8.1 | KHJ0670 | Hanger for handle Φ18 | |
| 9 | KHQ0070 | BX0020 | Trigger |
| 10 | KFT0874 | Screw 3.0*10 | |
| 11 | KHJ0777 | BW0222 | Joint for MIG handle |
| 12 | KFT0876-01 | Spring for cable support/Blue and white zinc plating | |
| 13 | KCN0791 | M H0246 | Coaxial cable 3m |
| 14 | KFT0824 | Spring for cable support/Blue and white zinc plating | |
| 15 | KHJ0872 | Back box with closing ring | |
| 16 | KFT0063 | EA0018 | Screw M4*6 |
| 17 | KHJ0070 | Adaptor nut | |
| 18 | KTB0038 | AR0083 | Central adaptor TW/Euro M12x1/Spring pins |
| 19 | KZT0072 | FA0027 | Liner nut M11*1 |
| 20 | KIC0068-06 | Steel liner 3.4m1.2-1.6mm | |
| 21 | KCG6007 | Spanner for pan torch | |
| 22 | KCG6000 | Spanner for MIG |
● Complete Torch
| Code | Ref. | Description | |
| KCT1815-36 | MA6365 | MIG MAXI 350 torch 3m with spring pins | |
| KCT1811-36 | MA6366 | MIG MAXI 350 torch 4m with spring pins | |
| KCT1812-36 | MA6367 | MIG MAXI 350 torch 5m with spring pins | |
