● Product Parameters

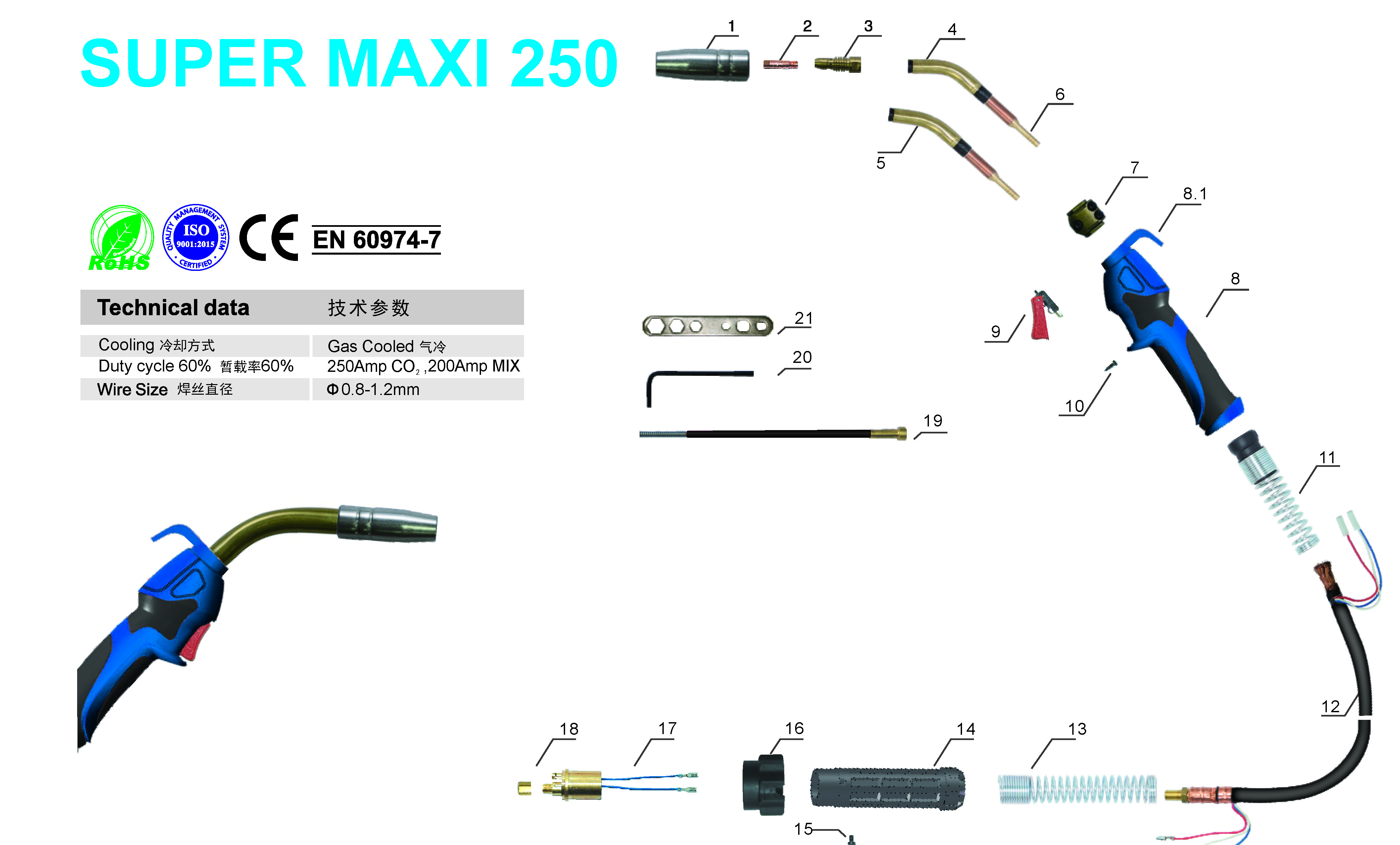

| Position | Code | Ref. | Description |
| 1 | KCS0673 | MC0128 | Gas Nozzle Φ16 |
| 2 | KCU0008-10 | MD0003-10 | Contact tip Φ1.0 |
| 3 | KCF 0006 | ME0001 | Gas diffuser |
| 4 | KCZ0629 | Torch head 45° | |
| 5 | KCZ0628 | Torch head 60° | |
| 6 | KTY0072 | AU0027 | Gas Hose Nipple |
| 7 | KCG0020 | MT0070 | Adjusting Block Kit Clamp |
| 8 | KCV0855-01 | Handle | |
| 8.1 | KHJ0672 | Hanger for handle MAXI250Φ16 | |
| 9 | KHQ0070 | BX0020 | Trigger |
| 10 | KFT0874 | Screw 3.0*10 | |
| 11 | KHJ0777 | BW0319 | Joint with spring |
| 12 | KCN0798 | MH0243 | Coaxial cable 3m |
| 13 | KFT0897-01 | EA0342 | Spring cable Support |
| 14 | KHJ0645 | BW0195 | Back box |
| 15 | KFT0063 | EA0018 | Screw M4*6 |
| 16 | KHJ0070 | BW0020 | Gun plug nut |
| 17 | KTB0038 | AR0083 | Central adaptor TW/Euro M 12*1/Spring pins |
| 18 | KZT0072 | FA0027 | Liner nutM11*1 |
| 19 | KIC0067-06 | Steel line 3.0m 0.8-0.9mm | |
| 20 | KCG6007 | Spanner for Pan torch | |
| 21 | KCG6000 | Spanner for MIG |
● Complete Torch
| Code | Ref. | Description | |
| KCT1715-36 | MA6265 | MIG MAXI 250 torch 3m with spring pins | |
| KCT1711-36 | MA6266 | MIG MAXI 250 torch 4m with spring pins | |
| KCT1712-36 | MA6267 | MIG MAXI 250 torch 5m with spring pins | |
