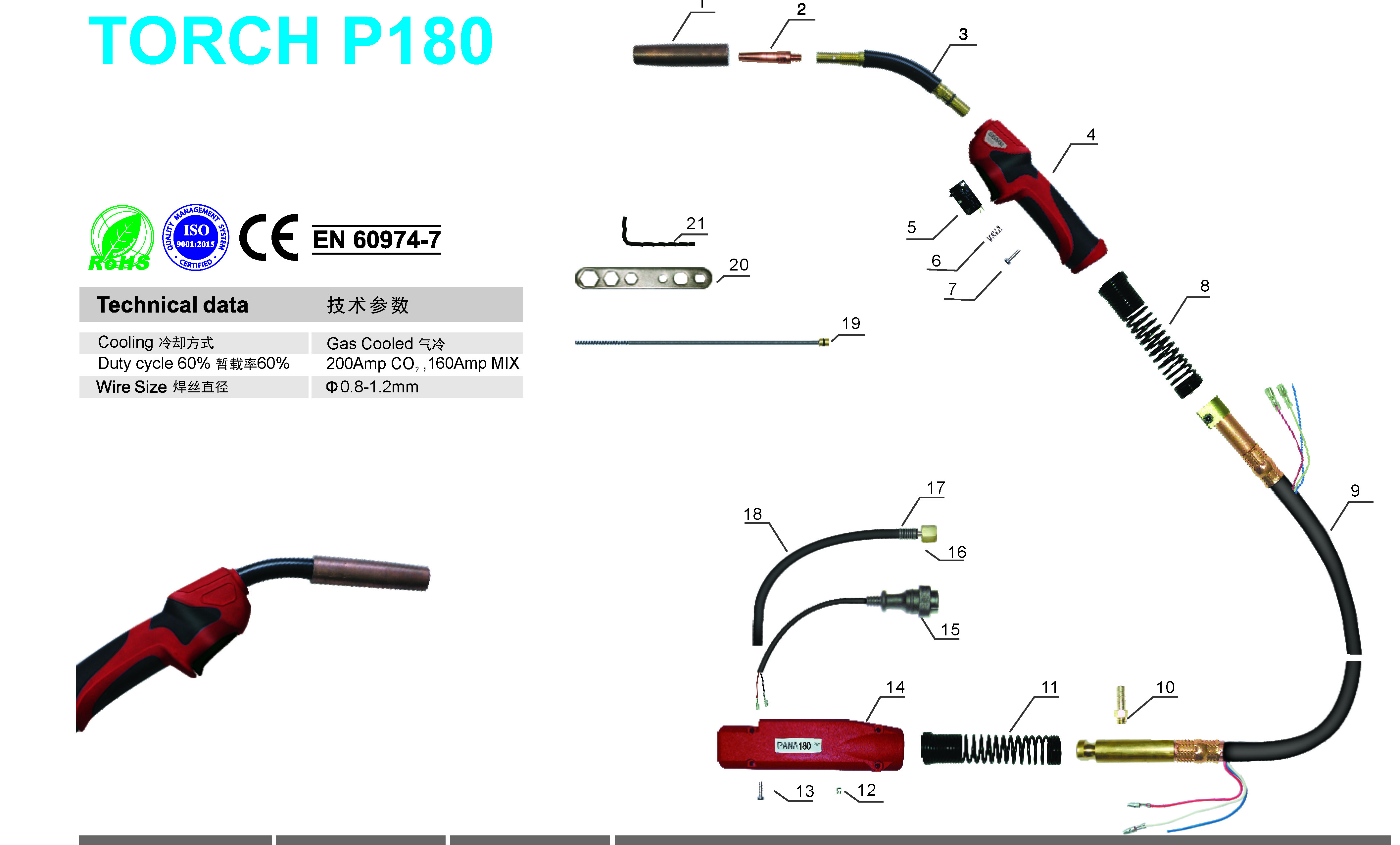

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KCS0456 | Nozzle PAN 180 | |
| 2 | KCU0746-10 | ContacttipΦ1.0 M6*45 | |
| 3 | KCZ0740 | Torch head PAN 180 | |
| 4 | KCV0895-01 | MIG handle PAN180 | |
| 5 | KHQ0186 | Switch for MIG/PAN | |
| 6 | KFT0860 | Spring for switch/PAN | |
| 7 | KFT0853 | Screw D.3*8 UNI9707 | |
| 8 | KFT0825 | Spring cable support | |
| 9 | KCN0110-01 | Coaxial cable assembling /3m/PAN | |
| 10 | KZH7065 | Gas connector for MIG torch/PAN | |
| 11 | KFT0821 | Spring cable support/PAN | |
| 12 | KFT0020 | Nut M4 | |
| 13 | KFT0079 | Screw M4*20 | |
| 14 | KHJ0793 | Back box for PAN torch | |
| 15 | KHQ0759 | Connector 2 holes/PAN | |
| 16 | KZT9009 | Connector with hexagonal nut 9/16-18 | |
| 17 | KFT0803 | Spring for gas tube | |
| 18 | KKH0669 | Epdm tube 4.8*10m | |
| 19 | KC0551 | Insulated steel liner 0.8-1.0 3.1m Black PAN 180 | |
| 20 | KCG6000 | Spanner for MIG torches | |
| 21 | KCG6007 | Spanner for PAN torch |
● Complete Torch
| Code | Ref. | Description | |
| KCT6531-36 | MIG 180 torch 3m PAN | ||
| KCT6532-36 | MIG 180 torch 4m PAN | ||
| KCT6533-36 | MIG 180 torch 5m PAN | ||
