● Product Parameters

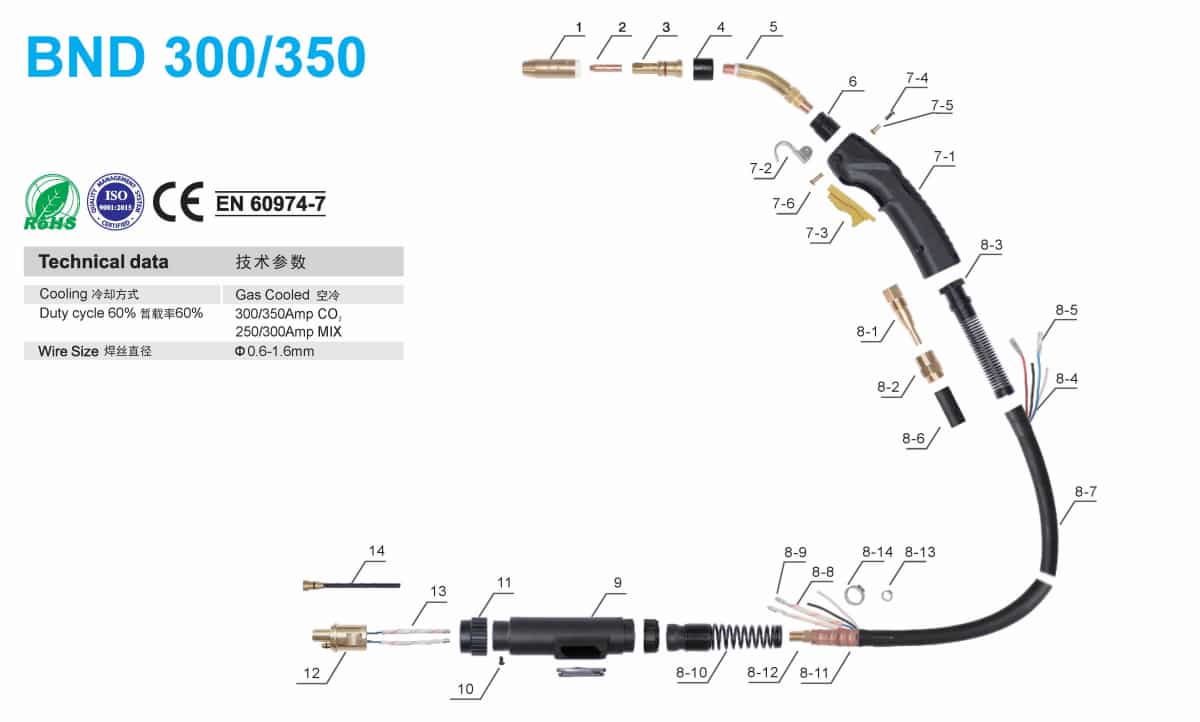

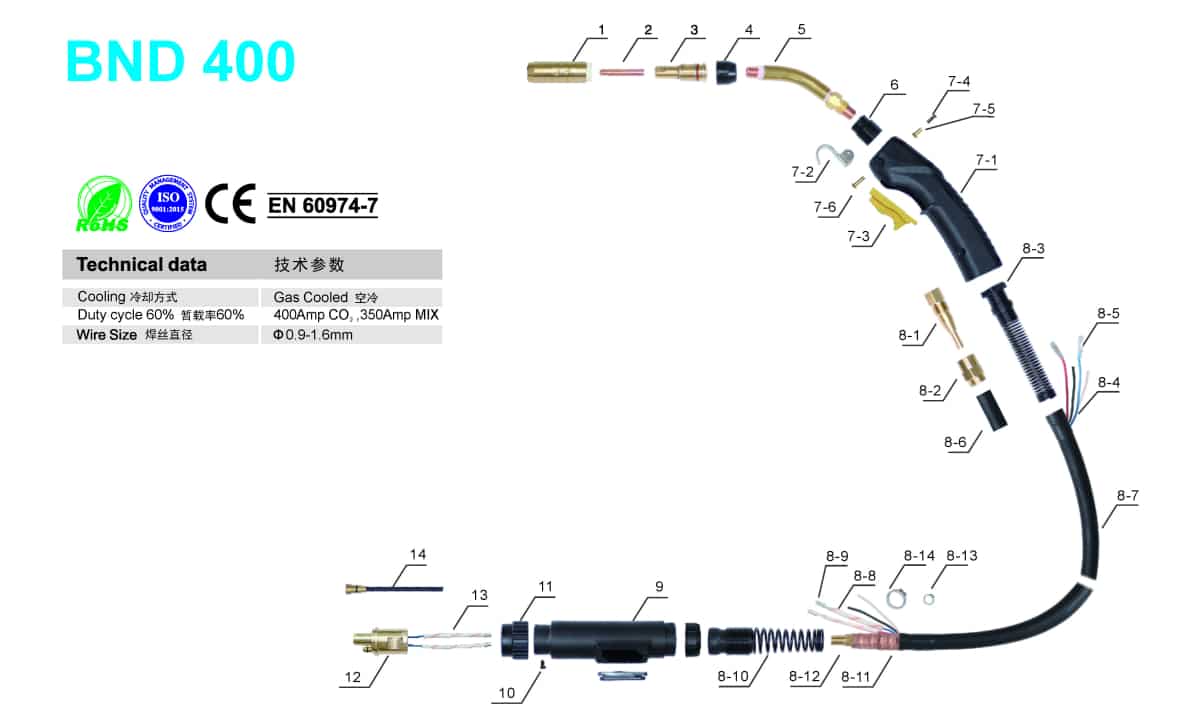

| Position | Code | Ref. | Description |
| 1 | KCS0965 | 4392 | Nozzle Φ12.5 Brass bd 4392 |
| 2 | KCU0765-16 | 7491 | Contact tip Φ1.6 bd serie 74 |
| 3 | KCF0660 | 4335 | Diffuser BD 4335 |
| 4 | KHJ0045 | 4323R | Inaultor torchbody BND |
| 5 | KCZ0715 | QT2-45 | Torchhead/qt2/45degree |
| 6 | KHJ0036 | 4780 | Neck insulator 4780 |
| 7-1 | KCV0053 | Handle/black/BND; | |
| 7-2 | KFT0972 | HOOK/BND | |
| 7-3 | KHQ0019 | 5662 | Trigger for BND/5662/yellow |
| 7-4 | KFT0616 | Scrwe M3.5x0.6-10 | |
| 7-5 | KFT0656 | Nut M3.5x0.6-11 CH6.3/nickel plating | |
| 7-6 | KFT0650-01 | Nut M3.5x0.6-15 CH6.3/nickel plating; | |
| 8 | KCN0126 | Coaxial cable 4.6M/4wires | |
| 8-1 | KTY6700 | 4213B | Back Fitting Cable BD4213B |
| 8-2 | KFT0930 | Mut/BND | |
| 8-3 | KFT0839 | Cable suppor spring/BND300-400 | |
| 8-4 | KHQ0700 | Female Trigger Wire Connector | |
| 8-5 | KHQ0708 | Insulator for connector | |
| 8-6 | KCK0876 | Heat shrink tubing Φ25mm | |
| 8-7 | KCN0376 | Coaxial cable 4.6m/4wires | |
| 8-8 | KHQ0090 | Insulator tube/Φ3 M | |
| 8-9 | KHQ0740 | Preinsulated Male Cylindrical Plug | |
| 8-10 | KZH0864 | Joint With Spring | |
| 8-11 | KSG0977 | Rings For Cable Clamping D19 ,3*21,3*42 | |
| 8-12 | KTY0690 | Back fitting cable/BND | |
| 8-13 | KFT0739 | ClampΦ11,5mm | |
| 8-14 | KFT0720 | ClampΦ20mm | |
| 9 | KHJ0713 | Back box for air cooling; | |
| 10 | KFT0063 | Screw M4*6 UNI6107 | |
| 11 | KHJ0078 | Gun Plug Nut/BINZEL TYPE/BRASS SCREW | |
| 12 | KTB0035 | Assembly of euro centre adaptor/BND | |
| 13 | KHQ0050 | Insulator tube/Φ5 M; | |
| 14 | KIC0095 | 44215 | Liner 4,5 m-1,2-1,6 mm.(44215) |
| Code | Ref. | Description | |
| KCT5770 | TORCH BND300-350/3.6M/EURO ADAPTOR | ||
| KCT5776 | TORCH BND300-350/4.6M/EURO ADAPTOR | ||
