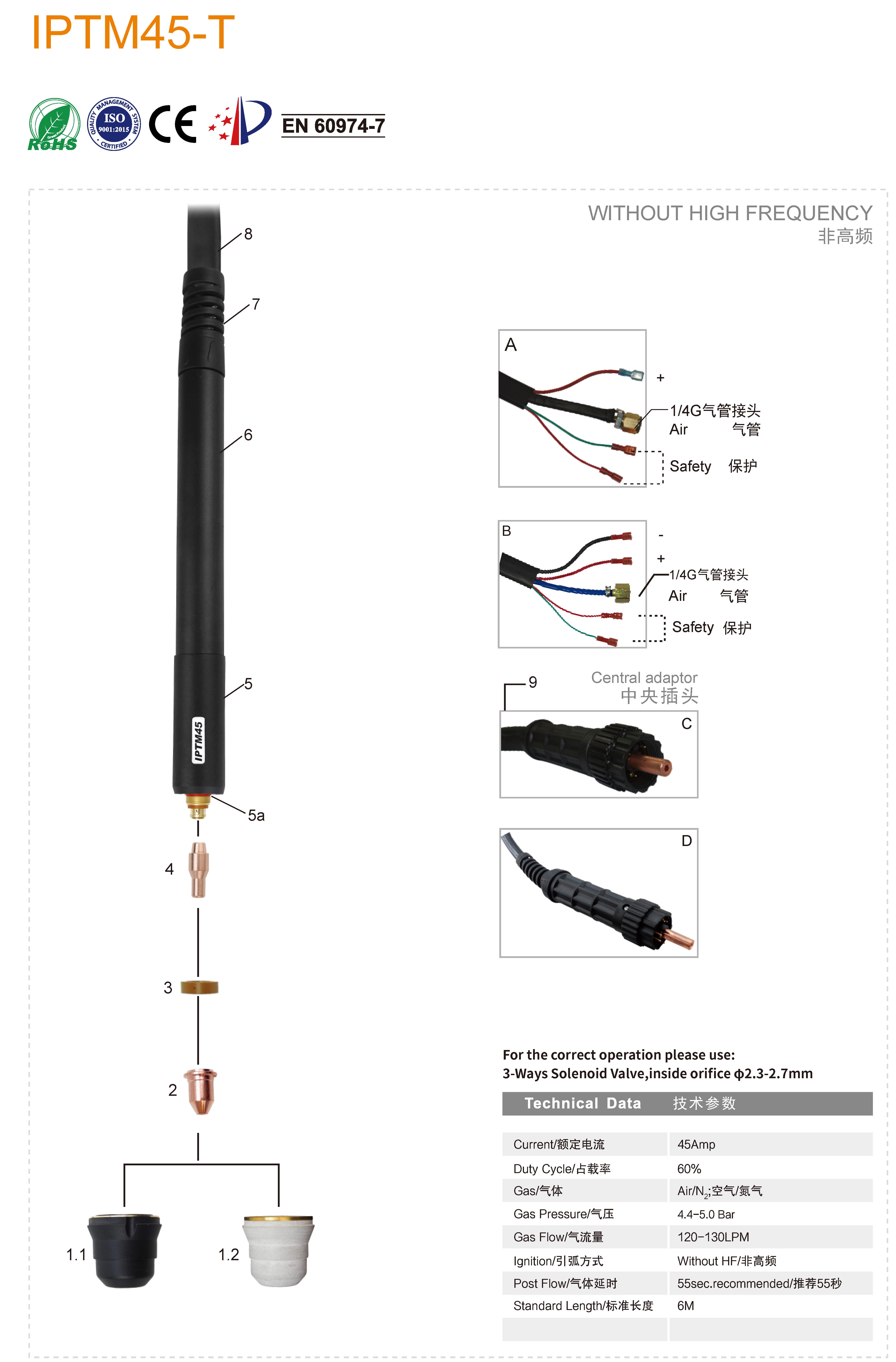

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | Outside nozzle | ||
| 1.1 | KVS0661-03 | 60389 | Outside nozzle 6holes IPT60/bakelite |
| 1.2 | KVS1661-05 | Outside nozzle 6holes IPT60/Gray Glass fiber | |
| 2 | Tip | ||
| 2.1 | KVU0792-08 | Tip Φ0.8mm/30A/IPT40 | |
| 2.2 | KVU0792-09 | Tip Φ0.9mm/40A/IPT40 | |
| 3 | KVF1601 | 60028 | Diffuser IPT20C-IPT60 |
| 4 | KVB1048-03 | Electrode/IPT40/IPX62/90° | |
| 5 | KVZ0724 | Plasma machine torch head IPTM45-T/IPTM65-T | |
| 5a | KFT0709 | 51620.6 | Oring Φ15XΦ18 IPT60 RED SIL |
| 6 | KGV0706 | Fiberglass position tube/PTM torch | |
| 7 | KHJ0931 | Cable suppor spring/big/TIG,PLASMA/black | |
| 8 | Cable assembely | ||
| 8.1 | KVN01004063-300 | Cable assembely/IPT40/6M/2 wires/integrated | |
| 8.2 | KVN01004061-300 | Cable assembely/IPT40/6M/2 wires/separated | |
| 8.3 | KVN01004060-300 | Cable assembely/IPT40/6M/2 wires/centre adaptor | |
| 8.4 | KVN1110606C-300 | Cable assembely/IPTM60/IPXM62/6M/coaxial cable/centre adapter | |
| 9 | KZX0078 | Central adaptor torch side Plasma 5 pins |
● Complete Torch
| Code | Ref. | Description |
| KVT33161 | Plasma cutting torch IPTM45-T/6M/1/4G/integrated | |
| KVT33162 | Plasma cutting torch IPTM45-T/6M/1/4G/separated | |
| KVT33163 | Plasma cutting torch IPTM45-T/6M/center adapter | |
| KVT33164 | Plasma cutting torch IPTM45-T/6M/coaxial cable/center adapter |
