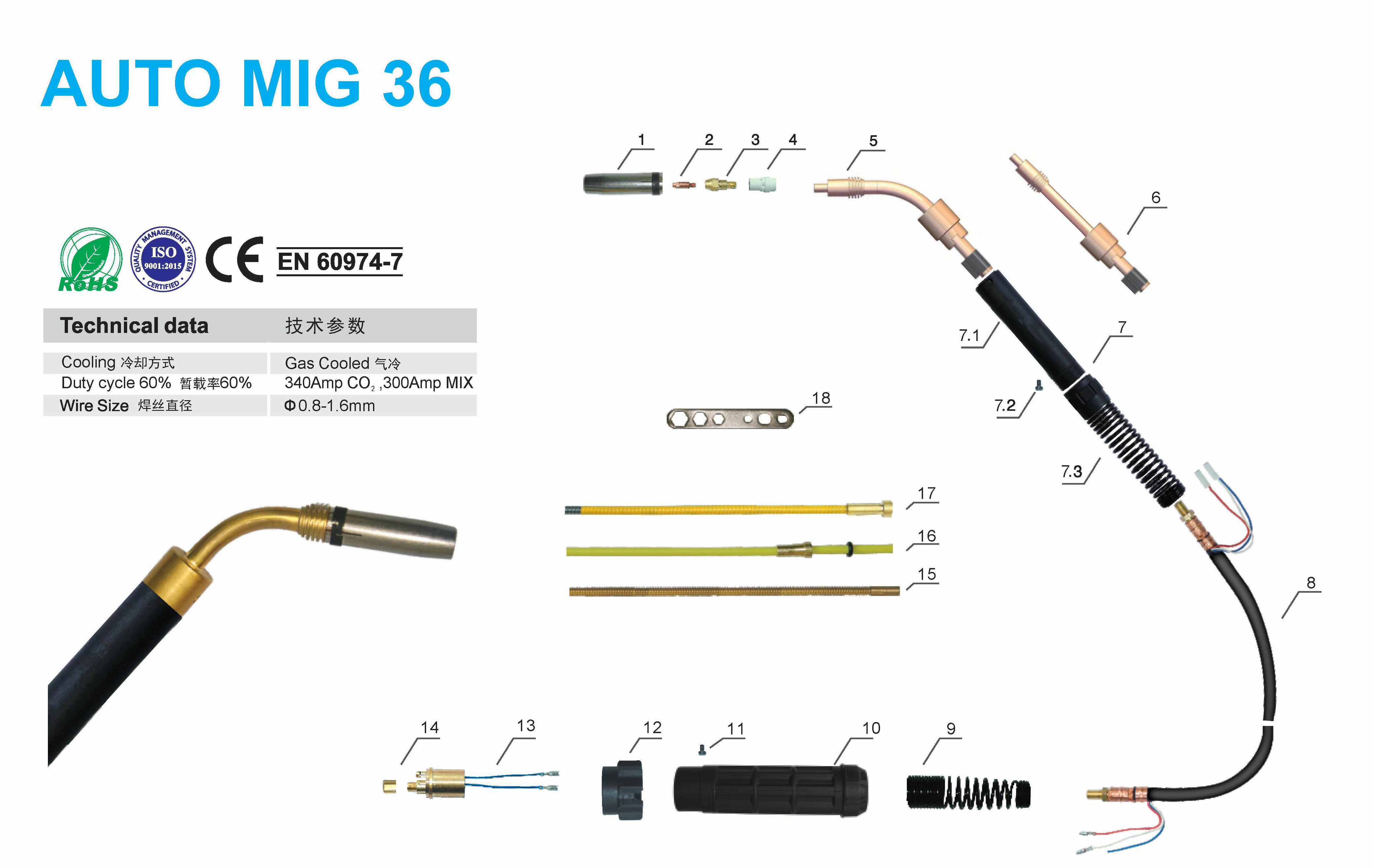

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KCS0072 | 145.0078 | Gas nozzleΦ16mm |
| 2 | KCU0004-12 | 140.0379 | Contact tipΦ1.2mmE-CU/M6*28 |
| 3 | KCU0686 | 142.0011 | Contact tip holder M6*32mm |
| 4 | KCF0562 | 014. 0023 | White ceramic gas diffuser |
| 5 | KCZ0022 | Torch head auto 36KD 45° | |
| 6 | KCZ0023 | Torch head auto 36KD 0° | |
| 7 | KCV0671 | Handle for auto MIG torch | |
| 7.1 | KCV0675 | Handle for auto MIG torch | |
| 7.2 | KFT0069 | Screw M4*8 | |
| 7.3 | KFT0898 | Spring for cable support | |
| 8 | KCN0670 | 160. 0364 | Coaxial cable 3m |
| 9 | KFT0897 | Spring for cable support | |
| 10 | KHJ0645 | Back box | |
| 11 | KFT0063 | Screw M4*6 | |
| 12 | KHJ0070 | Adaptor nut/Blue | |
| 13 | KTB0059 | 501.2155 | Euro central adaptor body/air cooling |
| 14 | KZT0071 | 501.0082 | Liner nut |
| 15 | KIC0226 | Brass terminalΦ3.0*4.5mm 0.35m | |
| 16 | KIC0210 | 126.0039 | Teflon linerd 3.0*4.5mm 3m Yellow |
| 17 | KIC0590 | 124.0041 | Yellow linerΦ 1.2-1.6mm 3m |
| 18 | KCG6000 | Spanner for MIG torches: |
● Complete Torch
| Code | Ref. | Description | |
| KCT0522 | Torchauto MIG36KD 0°3m euro adaptor/spring pins | ||
| KCT0529 | Torchauto MIG36KD 45°3m euro adaptor/spring pins | ||
