● Product Parameters
| Model | MIG-165 | MIG-185 | MIG-205 | MIG-205K | MIG-250K | ||
| Rated Input Voltage | 1P 220V | 220V/380V | 220V/380V | ||||
| 220V | 380V | 220V | 380V | ||||
| Rated Input Power(KVA) | 5.6 | 6.6 | 7.5 | 8 | 10 | ||
| Rated Input Current(A) | 26 | 30 | 35 | 34 | 23 | 40 | 23 |
| No-Load Voltage(V) | 52 | 62 | 58 | 62 | 54 | 54 | 54 |
| Rated Output(A/V): MIG | 1 50/21 | 1 80/22 | 200/23 | 200/24 | 250/26 | ||
| Rated Output(A/V): MMA | 1 50/25.6 | 1 80/26.4 | 200/27.2 | 200/28 | 250/30 | ||
| Duty Cycle (%) | 50 | 50 | 60 | 50 | 50 | ||
| Wire Weight(kg) | 1/5 | 1/5 | 5 | 1/5 | 5/15 | ||
| Wire Diameter(mm) | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.0 | 0.8-1.2 | ||
| Insulation Class | IP21S | IP21S | IP21S | IP21S | IP21S | ||
| Power Factor | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||
| Efficiency(%) | 80% | 80% | 80% | 80% | 80% | ||
| Machine Dimension (MM) | 425*200*355 | 425*200*355 | 530*310*500 | 425*200* 355 | 490* 245*415 | ||
| Net Weight(KG) | 8.9 | 9 | 11.2 | 9.5 | 15 | ||
● IGBT Inverter Automatic Submerged Arc Welding Machine

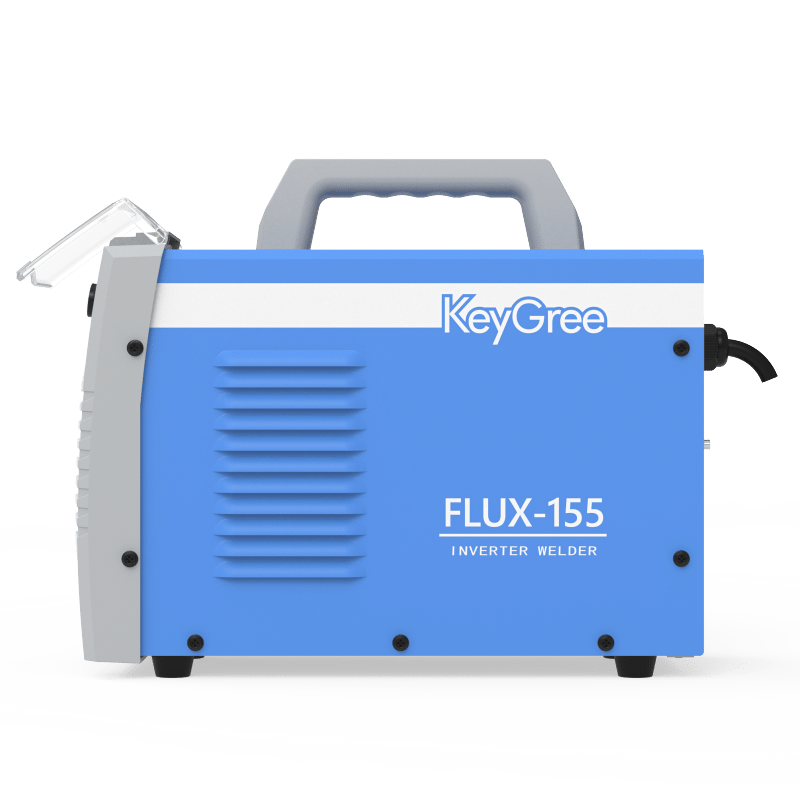

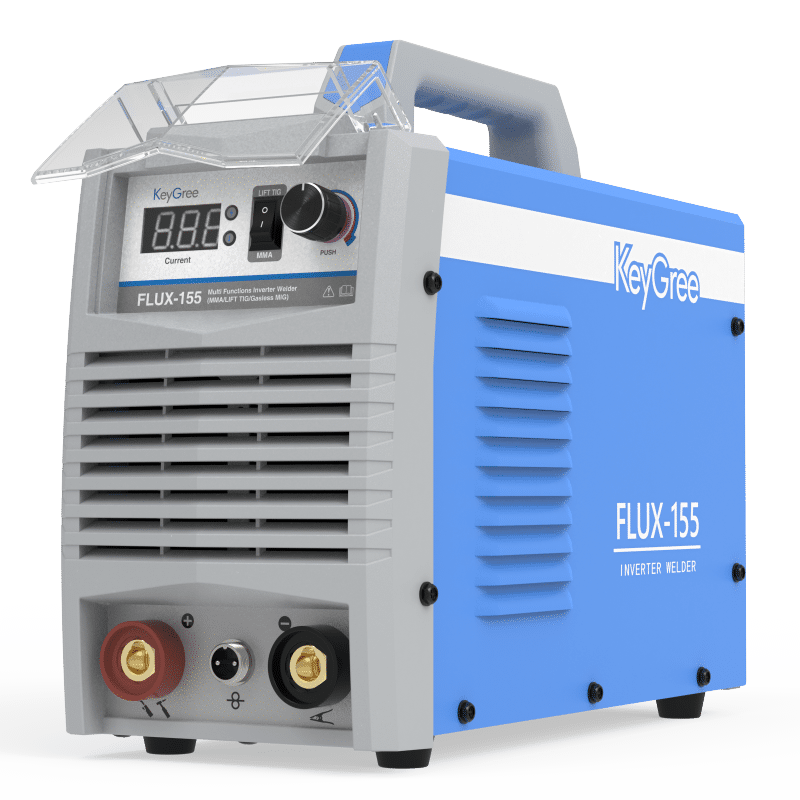

FLUX welding machine is a new power source developed by our company that can perform melting electrode welding without gas protection. mainly uses the positive and negative polarity exchange,at the same time the use of FLUX core welding wire, and can use co2,as well as manual welding ,simple scratch argon arc welding function.
The rated Duty cycle refers to the amount of welding that can be done within an amount of time. It is easiest to look at your welding time in blocks of 10Minutes and the Duty Cycle being a percentage of that 10 Minutes. If welding at 155 Amps with a 60% Duty Cycle, within a 10 Minute block of time you can weld for 6 Minutes with 4 Minutes of cooling for the welder.
● Operating methods

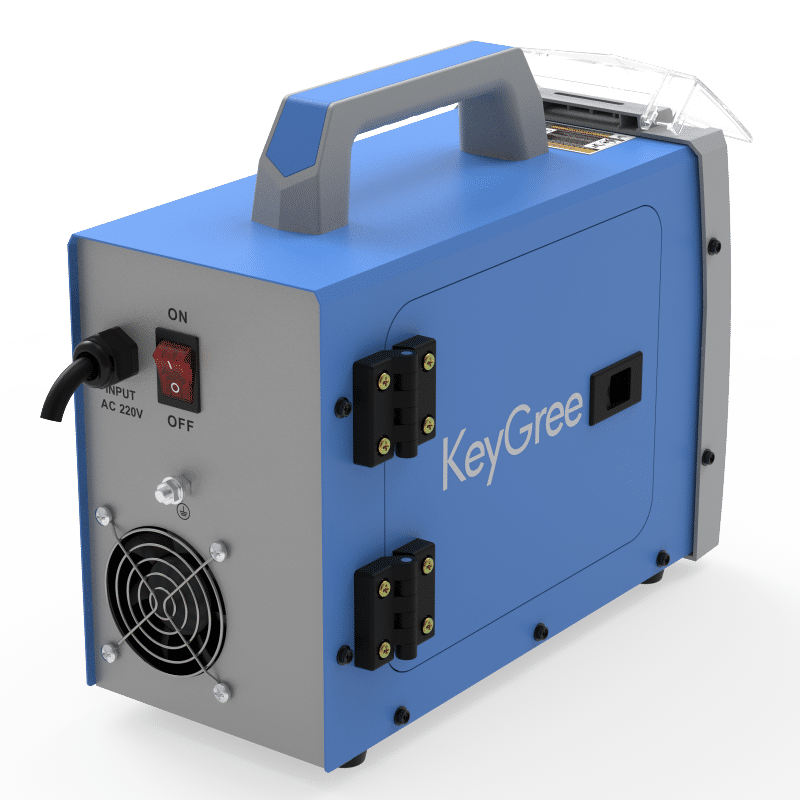

1) After correct installation, turn on the power switch and push the power switch in the "ON"position. Then, the power indicator light will be on and the fan inside the welder will start rotating.
2) According to the actual situation of use, the adapter is connected to the corresponding position,and the ground wire is firmly connected to the workpiece.
3) According to the diameter of the welding wire, select the diameter of the contact tip of the welding gun.

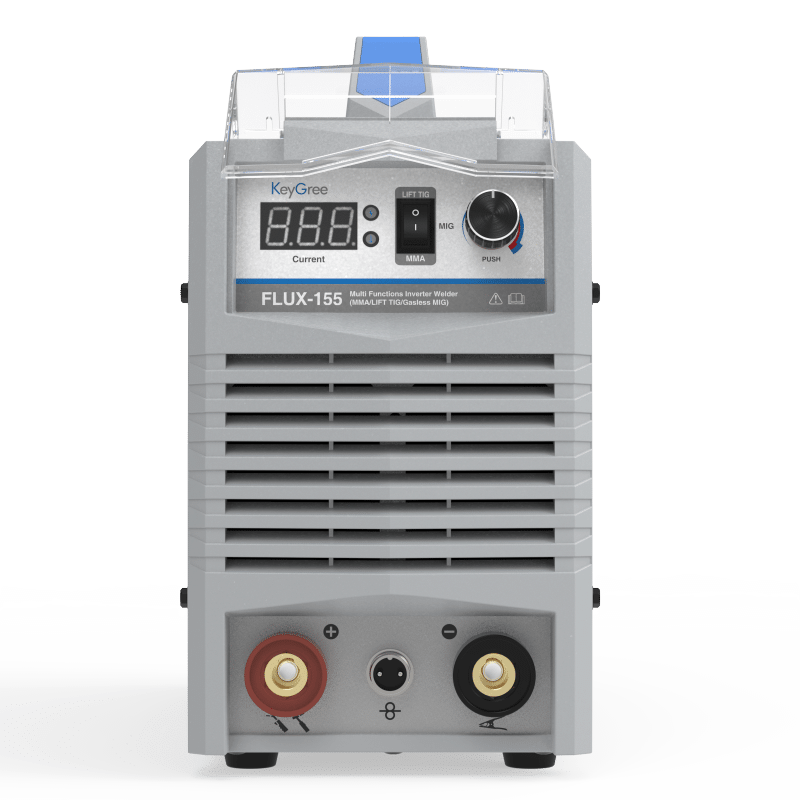

4) According to the thickness and process ofthe workpiece to be welded,cooperate with the"voltage adjustment" knob and "current adjustment" knob to the corresponding position.
5) "Auto" mode can be selected,at this time it is a unified adjustment, only the current needs to be adjusted, and the voltage is automatically matched.
6)In the "manual" mode,the current and voltage need to be adjusted separately,and the parameters can be manually matched to achieve a good welding process.
