PLASMA HF HD70

● Product Parameters

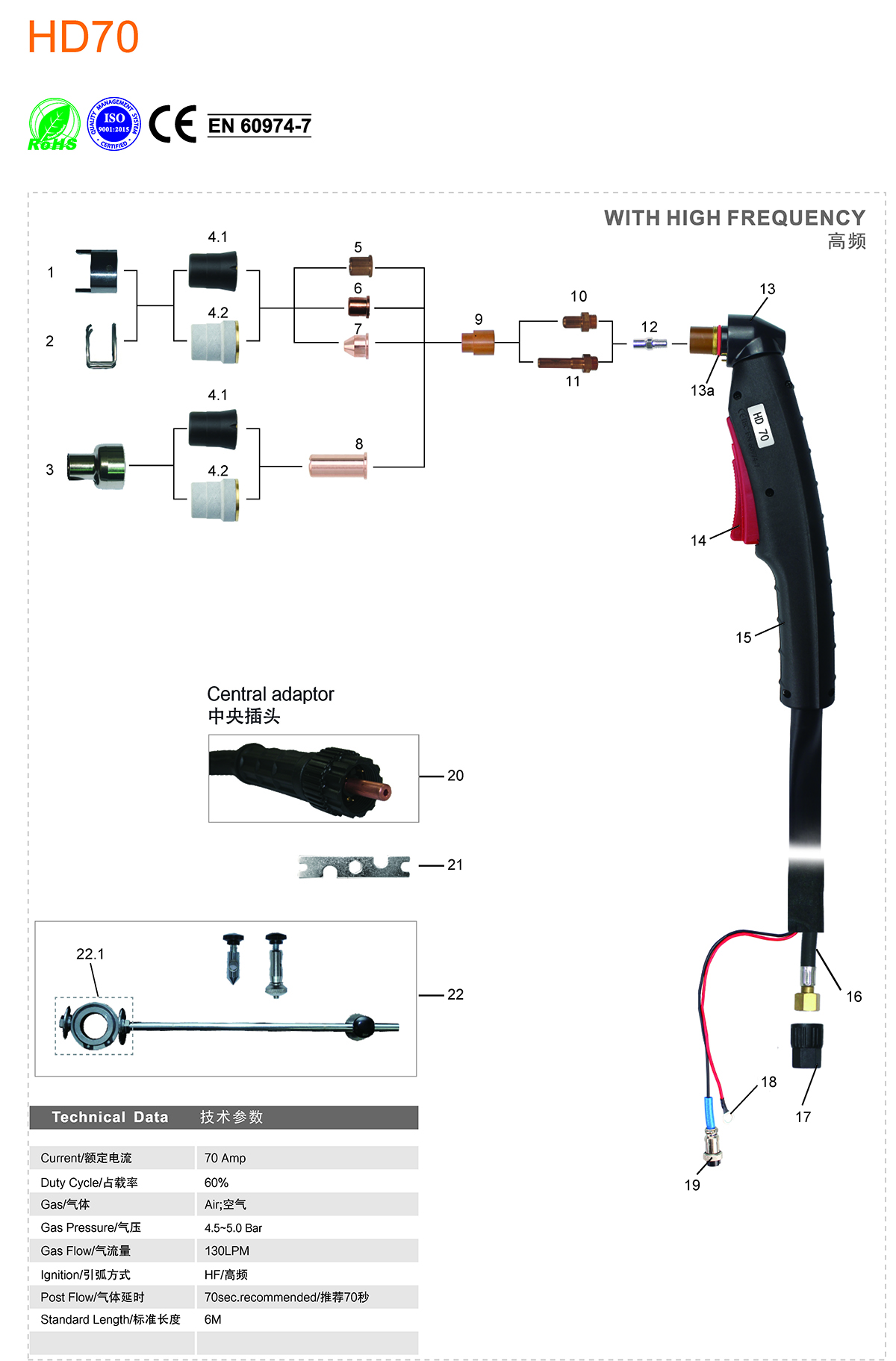

Position	Code	Ref.	Description
1	KSM6662		Double Pointed Spacer/LT70
2	KSM0060		Spacer Spring/LT70
3	KSM0007		Shield Cap For Extended Tip/LT70
4			Outside Nozzle
4.1	KVS0087-03	5.710.191	Outside Nozzle/Bakelite/LT70
4.2	KVS0087-05		Outside Nozzle LT70/Grey
5			Tip
5.1	KVU0065-09	1309	Tip Φ0.9Mm/LT50-70/L=11.2mm
5.2	KVU0033-10	1396	Tip Φ1.0mm/LT50-70/L=12.3mm
5.3	KVU0033-11		Tip Φ1.1mm/LT50-70/L=12.3mm
5.4	KVU0033-12		Tip Φ1.2mm/LT50-70/L=12.3mm
6			Tip
6.1	KVU0028-10		Flat Tip Φ1.0mm
6.2	KVU0028-12		Flat Tip Φ1.2mm
7			Tip
7.1	KVU0064-10	13.5	Conicial Tip Φ1.0mm/LT50-70
7.2	KVU0064-12		Conicial Tip Φ1.2mm/LT50-70
8			Tip
8.1	KVU0018-10	1395	Extended Tip Φ1.0mm/LT50-70
8.2	KVU0018-11		Extended Tip Φ1.1mm/LT50-70
8.3	KVU0018-12		Extended Tip Φ1.2mm/LT50-70
9	KVF0002		Diffuser LT50-70
10	KVB0018	1402	Electrode Hf LT70
11	KVB0019	1368	Extended Electrode/HF LT70
12	KZN0766	3.065.204	Air Tube/Cb70/LT70
13	KVZ1080		Plasma cutting torch head LT70
13a	KFT0707		"O"ring Φ13×16.6×1.8MM /LT50-70/red silicon
14	KHJ0995		Safety switch/plasma heavy duty grip handle/red
15	KGV0662		Plasma handle/heavy duty/LT50-LT151/black
16			Cable assembly
16.1	KVN00006065-35		Cable assembely/LT50-70/6M M16×1.5/2 wires/epdm
16.2	KVN00006060-35		Cable assembely/LT50-70/6M center adapter/2 wires/epdm
17	KHJ0029		Protection nut CH19
18	KTY2083		Connector M8/2MMQ
19	KHQ0757		Conntector 2 holes
20	KZX0078		Centre adapter torchside plasma 5 PINS
21	KCG6006		Spanner for Plasma
22	KSM0029		Circle cutting attachment/LT70
22.1	KSM0028		Wheel spacer with spanner/LT70

● Complete Torch

Code	Ref.	Description
KVT6875-00		Plasma cutting torch LT70/6M M16×1.5/heavy duty
KVT6877-00	1573	Plasma cutting torch LT70/6M center adapter/heavy duty
