● Product Parameters
| MODEL | MIG-270KB | MIG-315KB | MIG-350KB | ||||||
| Rated Input Voltage(V) | 1P 220V | 3P 220V | 3P 380V | 1P 220V | 3P 220V | 3P 380V | 1P 220V | 3P 220V | 3P 380V |
| Inverter Frequency(KHz) | 25 | 25 | 25 | ||||||
| Input Current(A) | 27 | 14 | 16 | 32 | 16 | 20 | 39 | 20 | 23 |
| Rated Input Capacity(KVA) | 11.6 | 14.6 | 17.2 | ||||||
| No-Load Voltage(V) | 54 | 56 | 62 | ||||||
| Duty Cycle（40° %） | 60 | 60 | 60 | ||||||
| Adjustment Current range(A) | 40-170 | 40-250 | 40-190 | 40-315 | 40-220 | 40-350 | |||
| Real Current(A) | 170 | 250 | 190 | 315 | 220 | 350 | |||
| Adjustment Voltage range(V) | 23 | 27.5 | 23.5 | 29.8 | 25 | 31.5 | |||
| Wire Feeder | Build-in | ||||||||
| Wire Diameter(MM) | 0.8-1.0 | 0.8-1.0 | 0.8-1.2 | ||||||
| Efficiency(%) | 80 | 80 | 80 | ||||||
| Insulation Class | F | F | F | ||||||
| Machine Dimensions(MM) | 485*275*465 | 470*230*460 | 470*230*460 | ||||||
| Net Weight(KG) | 18 | 21 | 23 | ||||||

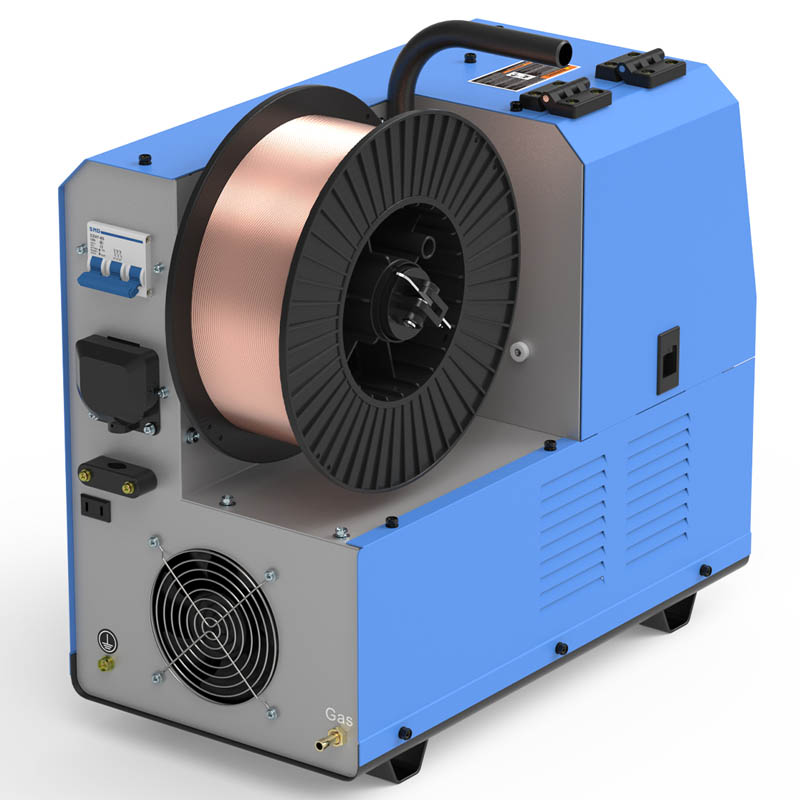

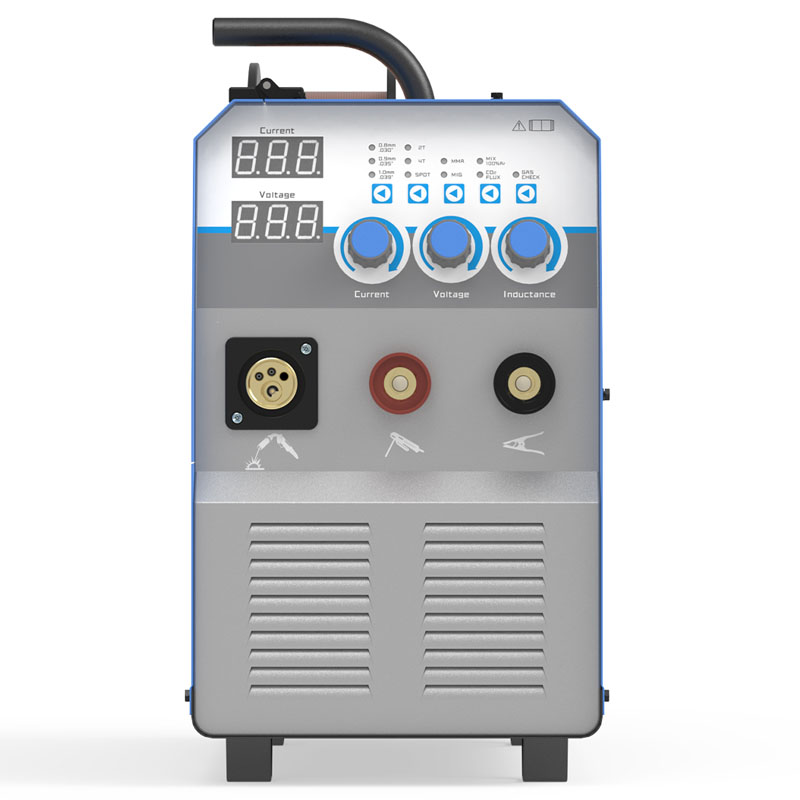

● IGBT Inverter Automatic Submerged Arc Welding Machine
The gas shielded welding machine actually has the characteristic of falling externally. It converts 220V and 380V AC into low-voltage direct current. Generally, the gas shielded welding machine can be divided into two types according to the type of output power supply, one is AC gas shielded welding machine; It is a DC gas shielded welding machine. The current conversion mode of the DC gas shielded welding machine is AC-DC-AC-DC. The gas shielded welding machine is composed of a power supply and a wire feeder. The shielding gas includes CO2, CO2 and argon mixed gas, and CO2 and helium mixed gas. do shielding gas
● Features of gas shielded welding machine
1 It has the advantages of light weight, small size, high efficiency and high reliability.
2 The welding current can output a rectangular pulse waveform to achieve spray transition and facilitate all-position welding.
3. It has automatic compensation function for grid voltage fluctuation.
4. It has automatic protection functions such as overvoltage, undervoltage, overcurrent and overheating.
5. Automatic compensation according to the cable length to ensure good welding performance for different cable lengths.
6. Open arc welding, the visibility of the arc and the molten pool is good, and the welding parameters can be adjusted according to the specific situation
7. Easy to operate, conducive to the realization of mechanization and automation
8. The welding quality is high, due to the concentrated arc heat, the welding speed is fast, the molten pool is small, the heat-affected zone is small, and the weldment is not easy to deform
9. After welding, an oxide film with high melting point can be formed at the weld
