● Product Parameters

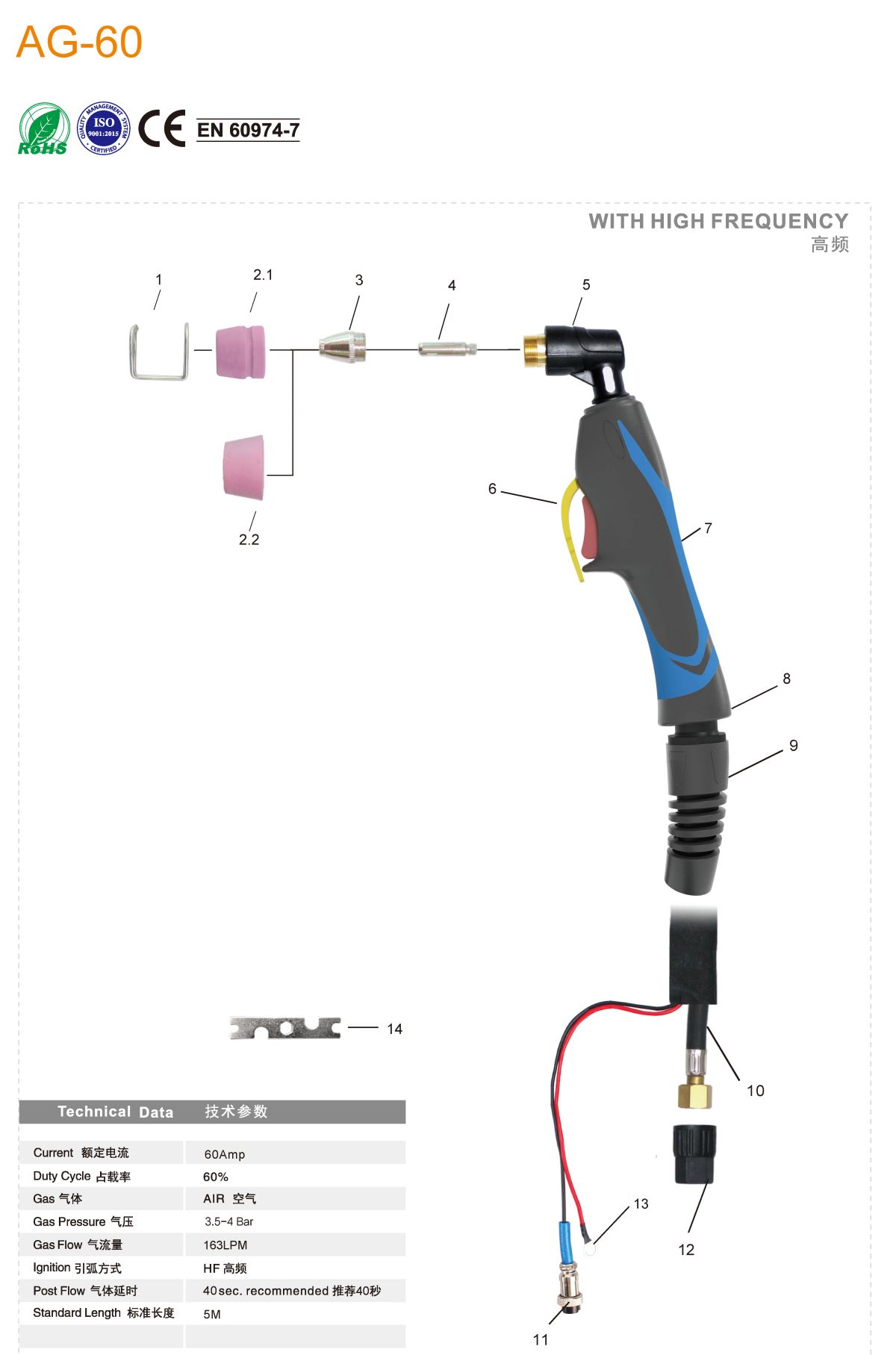

| Position | Code | Ref. | Description |
| 1 | KSM0062 | Spacer spring for SG55 | |
| 2 | Outside nozzle | ||
| 2.1 | KVS0076-01 | Outside nozzle with groove/ceramic/SG55/AG60 | |
| 2.2 | KVS0076 | Outside nozzle/ceramic/SG55/AG60 | |
| 3 | Tip | ||
| 3.1 | KVU0680-09 | Tip Ф0.9mm SG55/AG60 | |
| 3.2 | KVU0680-10 | Tip Ф1.0mm SG55/AG60 | |
| 3.3 | KVU0680-11 | Tip Ф1.1mm SG55/AG60 | |
| 3.4 | KVU0680-12 | Tip Ф1.2mm SG55/AG60 | |
| 4 | KVB0086 | Electrode/SG55/AG60 | |
| 5 | KVZ0034 | Plasma torch head AG60/with striking | |
| 6 | KHQ0240 | Switch/kit/SG51/SG55/P31 | |
| 7 | KGV0786 | Plasma handle for SG51-55/PT31/AG60 torch/black rubber/OEM | |
| 8 | KHJ0860 | Small joint TIG 9-17-20 | |
| 9 | KHJ0868 | Big spring support for TIG 18-26 | |
| 10.1 | KVN00706055-00 | Cable assembely/AG60/6MMQ/5M M16*1.5 | |
| 10.2 | KVN00706055-98 | Cable assembely/AG60/6MMQ/5M M16*1.5/E | |
| 11 | KHQ0757 | Conntector 2 PINS/F | |
| 12 | KHJ0029 | Protection nut CH19 | |
| 13 | KTY2083 | Connector M8/2MMQ | |
| 14 | KCG6006 | Spanner for plasma |
● Complete Torch
| Code | Ref. | Description | |
| KVT6630 | Plasma torch/AG60/5M M16*1.5 | ||
