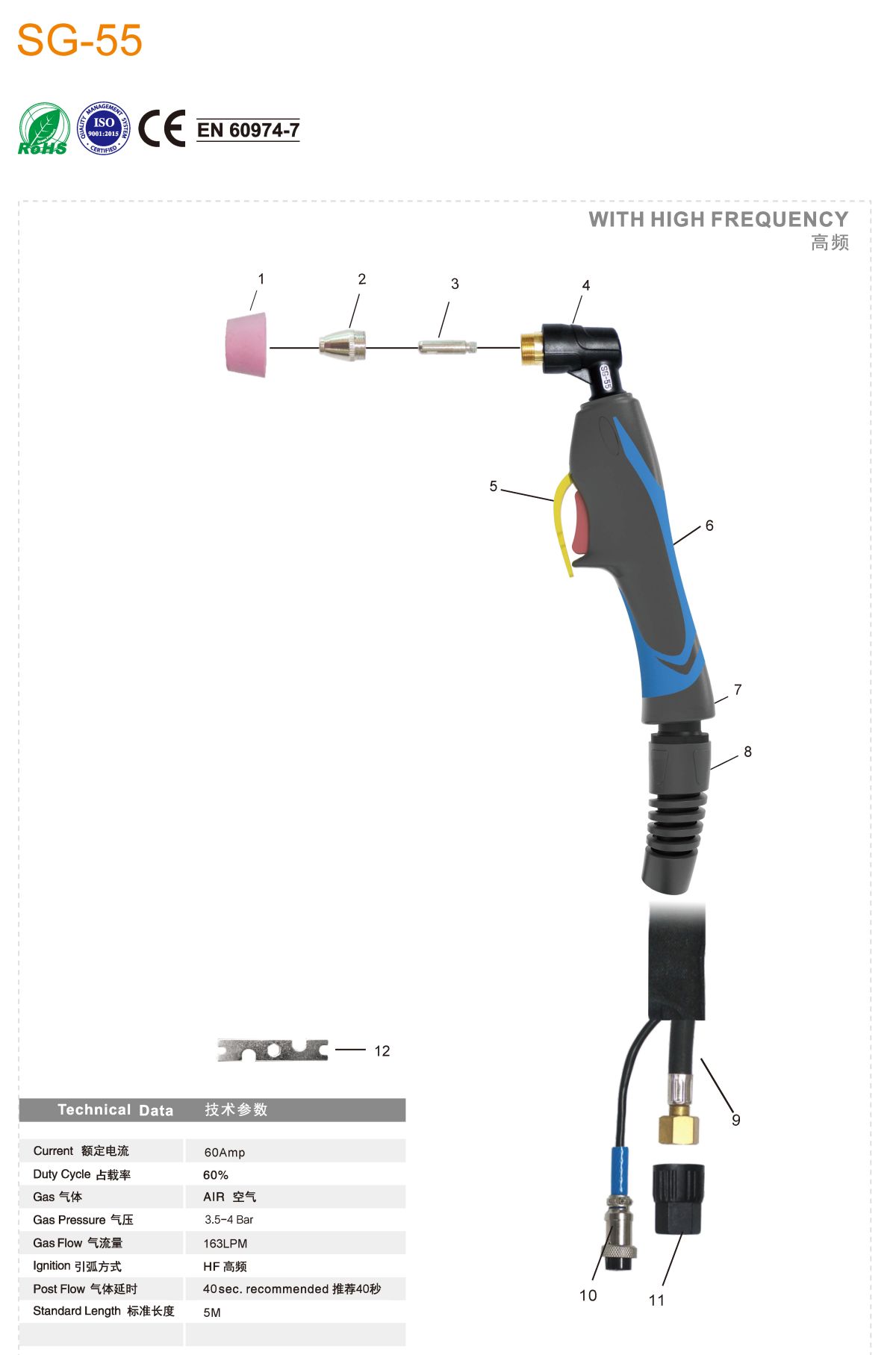

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KVS0076 | Outside nozzle/ceramic/SG55 | |
| 2 | Tip | ||
| 2.1 | KVU0680-09 | Tip Ф0.9mm SG55 | |
| 2.2 | KVU0680-10 | Tip Ф1.0mm SG55 | |
| 2.3 | KVU0680-11 | Tip Ф1.1mm SG55 | |
| 2.4 | KVU0680-12 | Tip Ф1.2mm SG55 | |
| 3 | KVB0086 | Electrode/SG55 | |
| 4 | KVZ0031 | Plasma torch head SG55 | |
| 5 | KHQ0240 | Switch/kit/SG51/SG55/P31 | |
| 6 | KGV0025 | Label/TIG、PLASMA/ITC;For IGV0685-01、IGV0025-01/TIG、PLASMA/ITC | |
| 7 | KHJ0860 | Small joint TIG 9-17-20 | |
| 8 | KHJ0868 | Big spring support for TIG 18-26 | |
| 9 | Cable assembely | ||
| 9.1 | KVN00606055-00 | Cable assembely/SG51/SG55/6MMQ/5M M16*1.5 | |
| 9.2 | KVN00606055-98 | Cable assembely/SG51/SG55/6MMQ/5M M16*1.5/E | |
| 10 | KHQ0757 | Conntector 2 PINS/F | |
| 11 | KHJ0029 | Protection nut CH19 | |
| 12 | KCG6006 | Spanner for plasma |
● Complete Torch
| Code | Ref. | Description | |
| KVT6610 | Plasma torch/SG55/5M M16*1.5 | ||
| KVT6210 | Plasma torch/SG55/5M M16*1.5/E | ||
