    PLASMA NHF PMX85

    PLASMA NHF PMX85

    Product Details

    ● Product Parameters

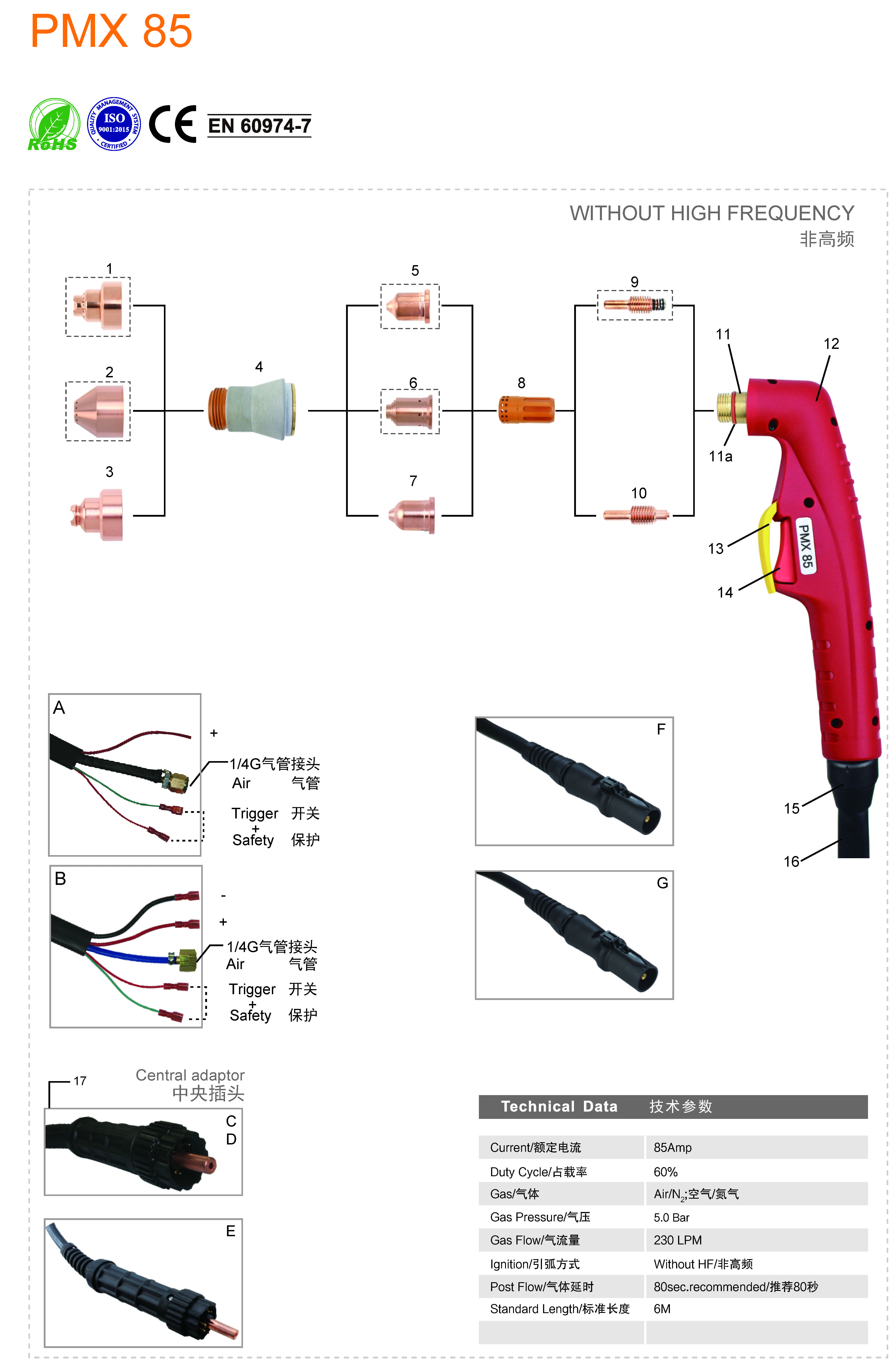

    PMX85 (2)
    Position Code Ref. Description
    1   HP220818 Shield cap
    2   HP220798 Shield cap/Gouging
    3 KSM0623   Shield cap PM×65/85/hand/45A-85A/PRO
    4 KVS0693   Outside nozzle PM×65/85/105/6 holes
    5     Tip
    5.1   HP220941 Tip/45A
    5.2   HP220819 Tip/65A
    5.3   HP220816 Tip/85A
    6   HP220797 Tip/Gouging
    7     Tip
    7.1 KVU0653-09   Tip Φ0.9mm45A/PRO
    7.2 KVU0653-11   Tip Φ1.1mm65A/PRO
    7.3 KVU0653-13   Tip Φ1.3mm85A/PRO
    8 KVF3001   Swirl ring PM×65/85 45-85A
    9   HP220842 Electrode
    10 KVB0032   Electrode PM×65/85/105/43.4
    11 KVZ0694   Plasma cutting torch head/PM×65/85/105
    11a KFT0675   O RING Φ17 × 20.6×1.8 /RED SILICONE
    12 KGV0035-01   Plasma handle manuale/A seires/red
    13 KHJ0722   Protection part/plasma/yellow
    14 KHQ0070   Trigger red
    15 KHJ0893   Tig joint/small/new type
    16     Cable assembely
    16.1 KVN02010061-300   Cable assembely/PM×85/105/6M/2 WIRES/separated
    16.2 KVN02010063-300   Cable assembely/PM×85/105/6M/2 wires/integrated
    16.3 KVN02010060-300   Cable assembely/PM×85/105/6M/2 wires/centre adapter
    16.4 KVN02010066-300   Cable assembely/PM×85/105/6M/4 wires/centre adapter
    16.5 KVN0201006C-300   Cable assembely/PM×85/105/6M/coa×ial cable/centre adapter
    17 KZX0078   Centre adaptor torchside PLASMA 5 PINS

    ● Complete Torch

    Code Ref. Description
    KVT03231   Plasma cutting torch PM×85/6M/ 1/4G /integrated/2 wires
    KVT03232   Plasma cutting torch PM×85/6M/ 1/4G /separate/2 wires
    KVT03233   Plasma cutting torch PM×85/6M/central adaptor/2 wires
    KVT032330   Plasma cutting torch PM×85/6M/central adaptor/4 wires
    KVT03234   Plasma cutting torch PM×85/6M/central adapto/coa×ial cabler
    KVT03235   Plasma cutting torch PM×85/6M/epdm tube/hypertherm adapter
    KVT03236   Plasma cutting torch PM×85/6M/coa×ial cable/hypertherm adapter
