PLASMA NHF IPT65

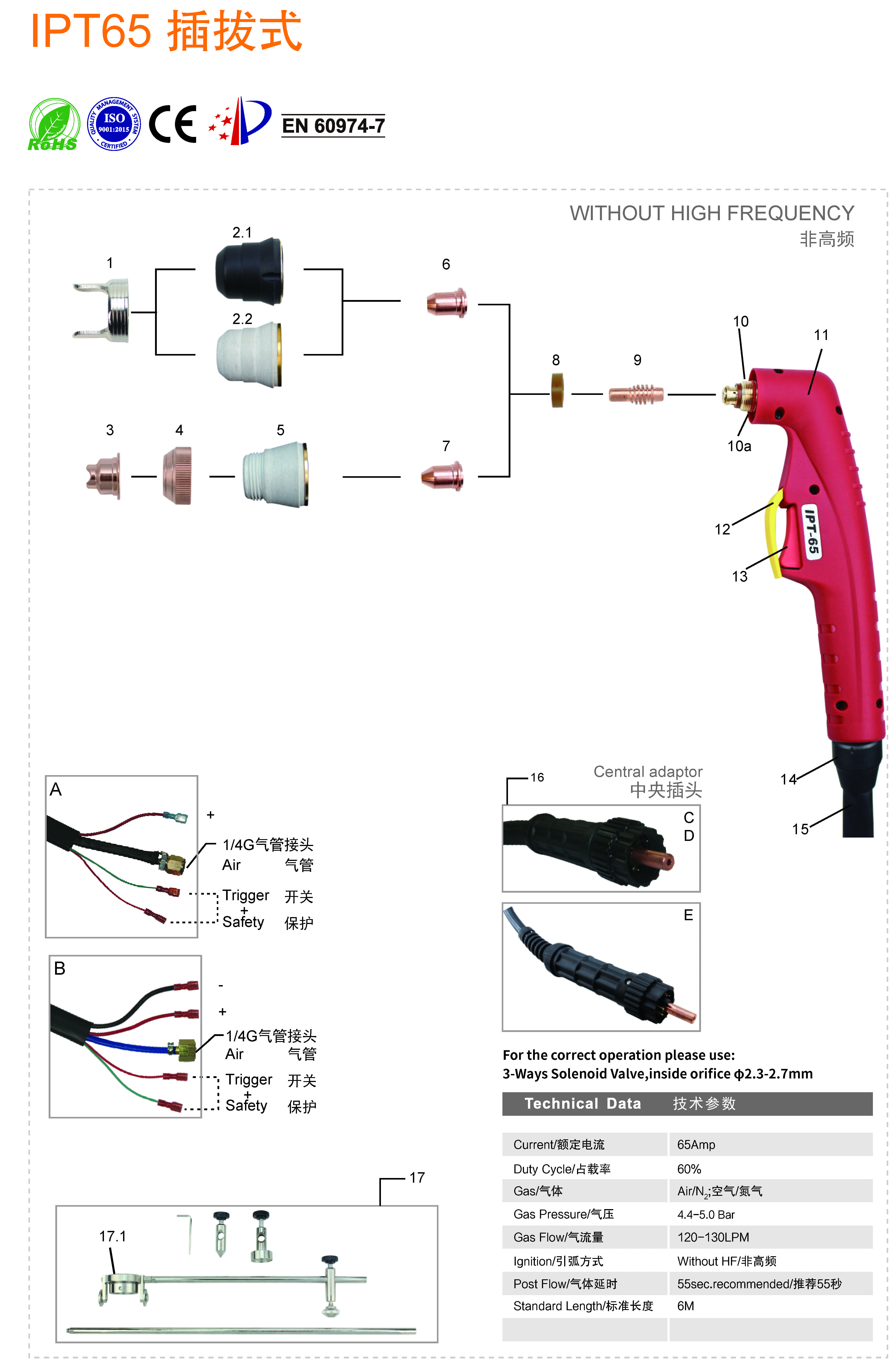

● Product Parameters

Position	Code	Ref.	Description
1	KSM0098-04	60432	Double pointed spacer/IPT60/backing striking
2			Outside nozzle
2.1	KVS0661-03	60389	Outside nozzle 6holes IPT60/bakelite
2.2	KVS1661-05		Outside nozzle 6holes IPT60/Gray Glass fiber
3	KSM0620		Shield cap/IPX62/Hand
4	KSM0658		Shield cap/IPX62/IPX82
5	KVS0632-05		Outside nozzle IPX62/gray glass fiber
6	KVU0792-11-00		Tip Φ1.1mm/65A/IPX62/Wide head
7			Tip
7.1	KVU0792-09		Tip Φ0.9mm/40A/IPX62
7.2	KVU0792-11		Tip Φ1.1mm/60A/IPX62
8	KVF1601	60028	Diffuser IPT20C-IPT60
9	KVB1048-06		Electrode/IPT40/IPX62
10	KVZ0076-03		Plasma torch head/IPT40/IPX62 torch head/90°
10a	KFT0709	51620.6	"O"ring Φ15XΦ18 IPT60 RED SIL
11	KGV0038-01		Plasma handle manual/IPT20-60/PX torch head
12	KHJ0722		Protection part/Plasma/Yellow
13	KHQ0070	7301.2	Trigger red
14	KHJ0898		Plasma Joint/IPT20-60
15			Cable assembly
15.1	KVN01106060-22		Cable assembly/IPT65/6M/2 wires/centre adaptor
15.2	KVN01106063-22		Cable assembly/IPT65/6M/2 wires/integrated
15.3	KVN01106066-22		Cable assembly/IPT65/6M/4 wires/centre adaptor
15.4	KVN01106061-22		Cable assembly/IPT65/6M/2 wires/PX torch head/separate
16	KZX0078		Central adaptor torch side Plasma 5 pins
17	KSM0032		Circle cutting attachment/IPT20-60
17.1	KSM0702		Wheel spacer with spanner IPT20-60

● Complete Torch

Code	Ref.	Description
IVT03171		Plasma torch IPT65/6M/ 1/4G /integrated/2 wires/screwless
IVT03172		Plasma torch IPT65/6M/ 1/4G /separate/2 wires/screwless
IVT03173		Plasma torch IPT65/6M/central adaptor/2 wires/screwless
IVT031730		Plasma torch IPT65/6M/central adaptor/4 wires/screwless
IVT03174		Plasma torch IPT65/6M/6MM/quick plug head/coaxial cable/center adapter
