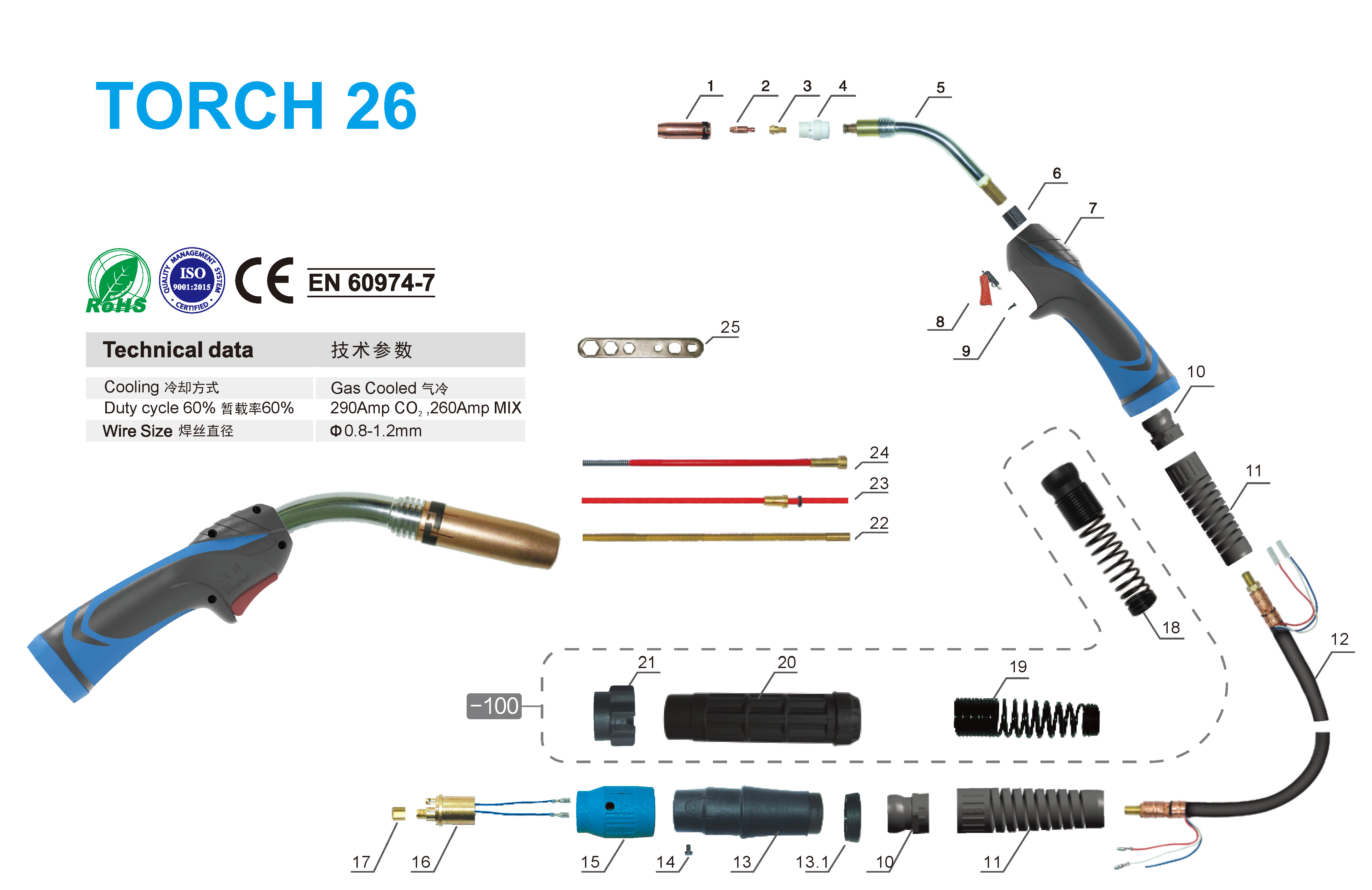

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KCS0713 | 145.0085 | Gas nozzle Φ 16mm |
| 2 | KCU0004-10 | 140.0242 | Contact tip Φ 1.0mm E-CU/M6*28mm |
| 3 | KCU0016 | 142.0007 | Contact tip holder M6*22mm |
| 4 | KCF0535 | 018.0141 | White ceramic gas diffuser 26KD |
| 5 | KCZ0636 | 018.0001 | Torch head 26KD:枪颈26KD |
| 6 | KHJ0030 -01 | 400.0044 | Plastic Body |
| 7 | KCV0890-01 | MIG handle Blue/Grip | |
| 8 | KHQ0070 | 185.0031 | Trigger |
| 9 | KFT0874 | Screw M3*10 | |
| 10 | KHJ0021 | Joint for MIG handle | |
| 11 | KFT0882 | Spring for cable support | |
| 12 | KCN0696 | 160.0239 | Coaxial cable 3m |
| 13 | KHJ0703 | Back box | |
| 13.1 | KHJ0715 | Housing for handle | |
| 14 | KF'T0063 | Screw M4*6 | |
| 15 | KHJ0072 | Adaptor nut | |
| 16 | KTB0059 | 501.2155 | Euro central adaptor body/air cooling |
| 17 | KZT0071 | 501.0082 | Liner nut |
| 18 | KZH0864 | Joint with spring; | |
| 19 | KFT0897 | Spring/cable support/black; | |
| 20 | KHJ0645 | Back box hole | |
| 21 | KHJ0070 | Gun plug nut | |
| 22 | KIC0220 | Brass terminalΦ2.0*4. 0mm 0.35m | |
| 23 | KIC0160 | 126.0021 | Teflon linerΦ2.0*4.0mm 3m Red |
| 24 | KIC0560 | 124.0026 | Red linerΦ1.0-1.2mm3m |
| 25 | KCG6000 | Spanner for MIG torches |
● Complete Torch
| Code | Ref. | Description | |
| KCT2898-36 | MIG 26KD torch 3m euro adaptor /spring pins | ||
| KCT2899-36 | MIG 26KD torch 4m euro adaptor /spring pins | ||
| KCT2895-36 | MIG 26KD torch 5m euro adaptor /spring pins | ||
