    LYG-L600A

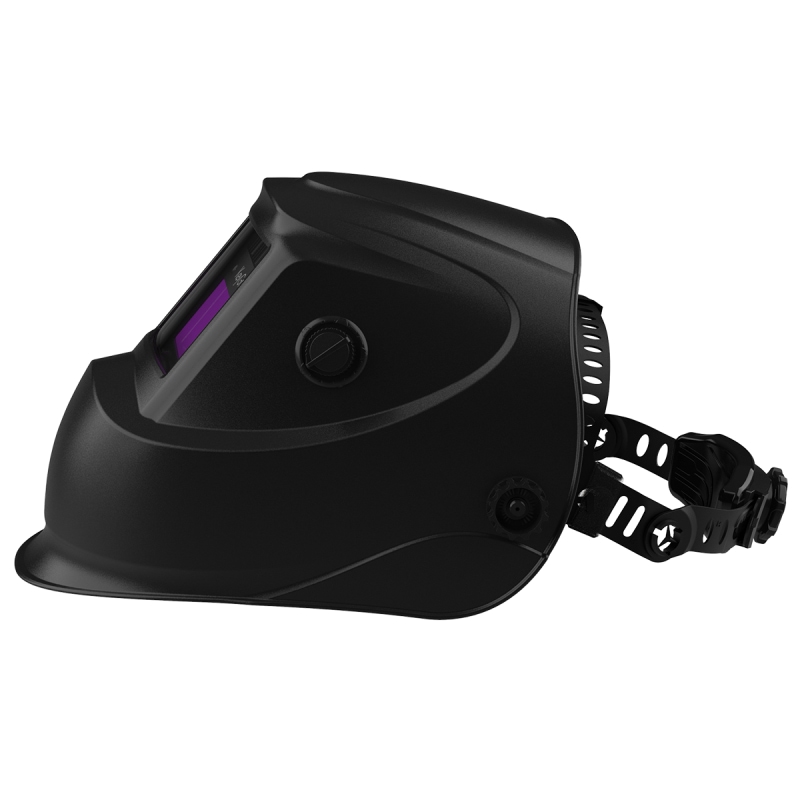

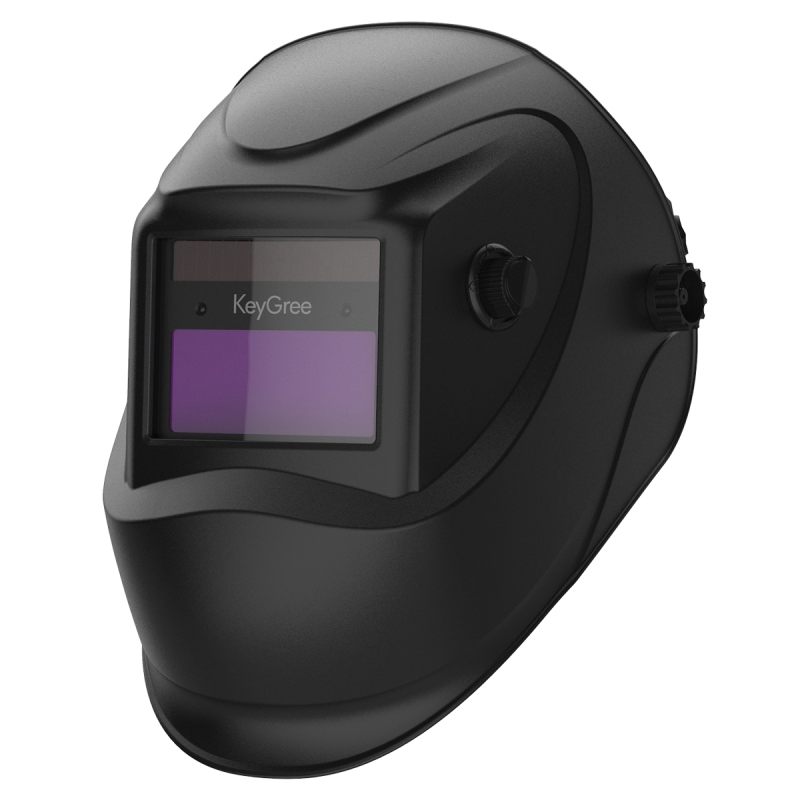

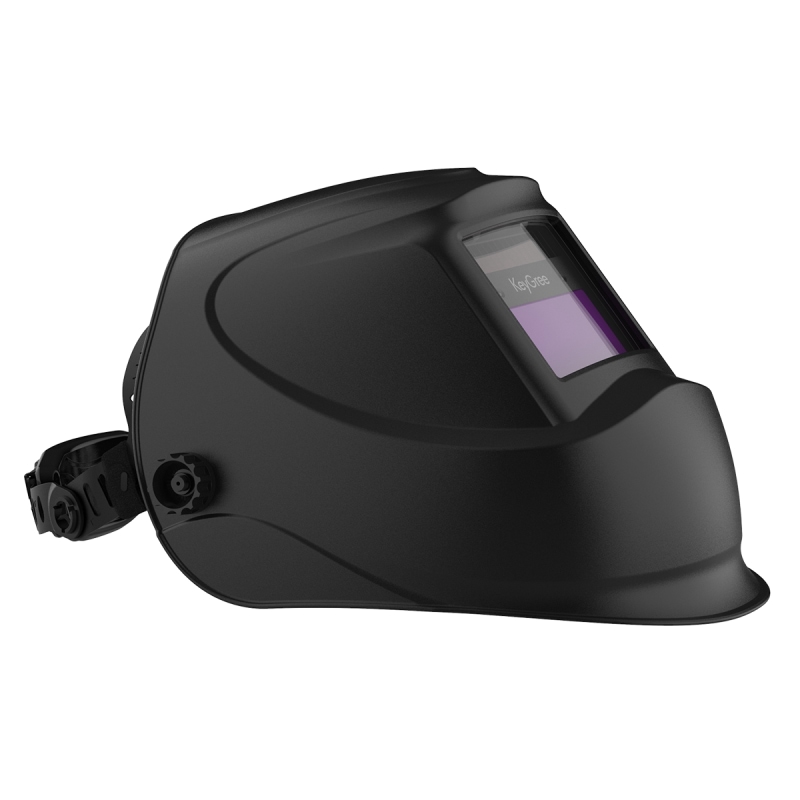

    True Color Auto Darkening Welding Helmet L600A

    Product Details

    ● Product Parameters

    MODEL L YG-L600A LYG-M800D
    Filter Size 110x90x9mm 133x114x1 0mm
    Active Viewing Area 92.5x42.5mm 100mmx93mm
    Light State DIN4 DIN4
    Dark State DIN9~DIN13 DIN5~9/9~13
    Way to Shift Dark State stepless shift External Variable
    Switching Time s 1/1 0000S 1/1 0000S
    Sensitivity Adjustment Stepless control Stepless Control
    Delay Time 0.1/0.8S 0.1/0.8S
    Power Supply Lithium battery & Solar supply Lithium battery & Solar supply
    Rated Capacity of Lithium Battery 600mAh 600mAh
    Replaceable Lithium Battery YES YES
    Operating Temperature -5~55°C -5°C~55°C
    Sensors to Weld Arc 4 2
    Protect Grade Against UVB DIN16 DIN16
    Grind YES YES
    Cut YES YES
    Low Battery YES YES
    Test YES YES
    Dimension (CM) 24.5x19.5x30 24.5x19.5x30
    33

    ● Detailed information

    Strong light is harmful to the eyes, and harmful ultraviolet and infrared radiation generated by the arc will also cause irreversible damage to the eyes. Metals melted or vaporized by high heat during operation will dissipate into the air through heat. When we inhale air containing metal powder, it will seriously affect our respiratory system. The welding helmet is a shielding tool to prevent the spatter, arc light and other radiation generated during welding from damaging the welder's face and neck. There are two types of welding helmets: hand-held and helmet-type. The welding cap is equipped with a goggle shielding lens to shield the harmful light from welding. Generally, those with better eyesight should use goggle glasses with larger and darker colors to protect their eyesight. In order to protect the goggles from being damaged by splashes during welding, two pieces of colorless and transparent protective white glass can be added outside.
