PLASMA HF P80 curved handle injection molding

PLASMA HF P80 Curved Handle Injection Molding

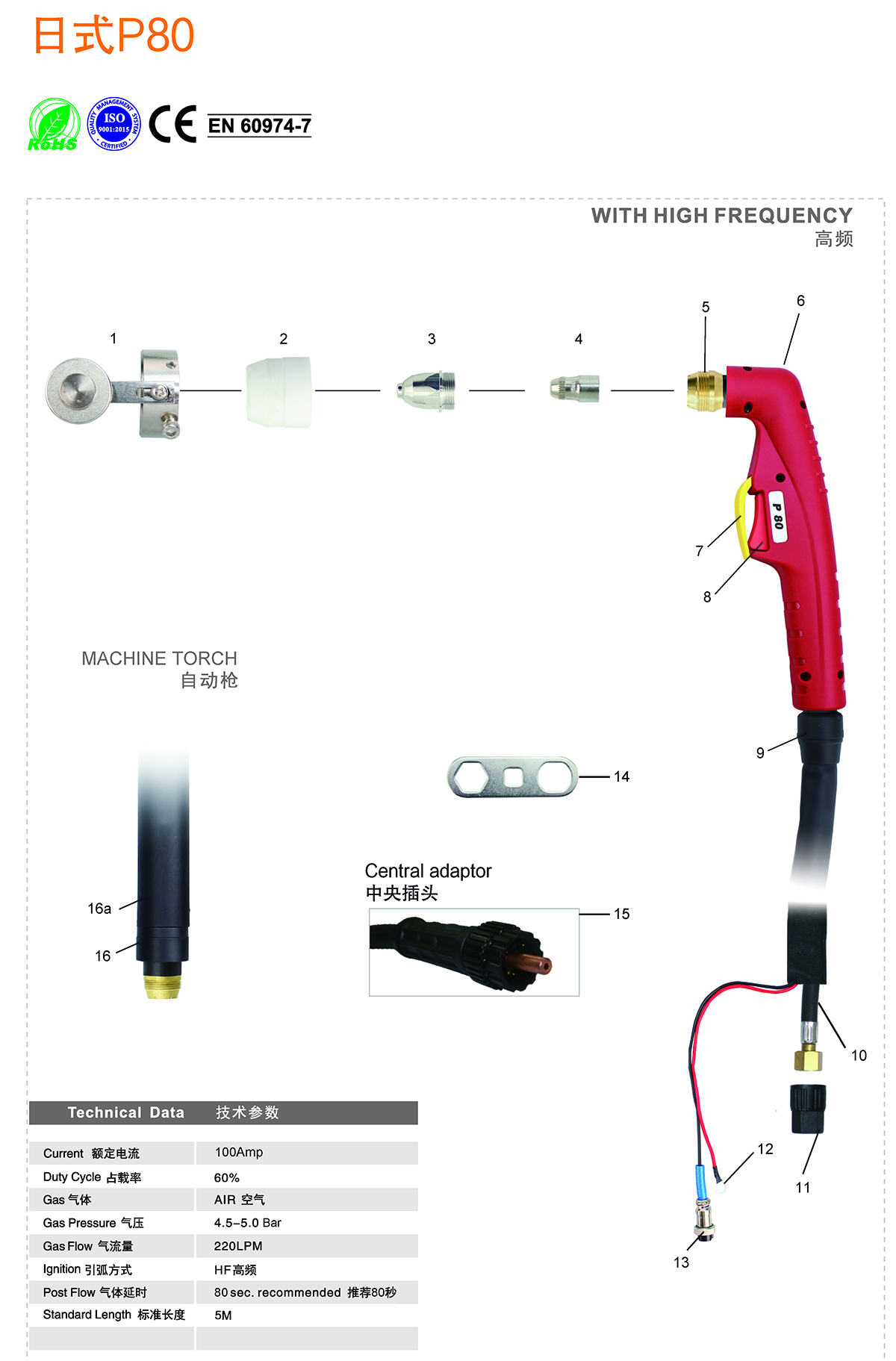

● Product Parameters

Position	Code	Ref.	Description
1	KSM0709		Isolated Wheel/P80
2	KVS0013-02	TGN02004	Ceramic outside nozzle/Panasonic P80
3			Tip
3.1	KVU0039-10	TET01110	Tip Ф1.0mm/P80
3.2	KVU0039-13	TET01130	Tip Ф1.3mm/P80
3.3	KVU0039-15	TET01512	Tip Ф1.5mm/P80
3.4	KVU0039-17		Tip Ф1.7mm/panasonic P80
4	KVB0020	TET02033	Electorde/P80
5			Torch Head
5.1	KVZ1048		Plasma Torch Head/P80
5.2	KVZ1048-01		Plasma Torch Head/P80/4 holes
6	KGV0666		Plasma handle P80
7	KHJ0534		Switch protection shield of plasma torech/OEM/2017
8	KHQ0700		Switch protection shield of plasma torech/OEM/2017
9	KHJ0893		Switch control line connector (female)
10			Cable assembely
10.1	KVN00810050-96		Cable assembely/P80/8MMQ/5M center adapter
10.2	KVN00810105-96		Cable assembely/P80/10MMQ/10M M16*1.5
10.3	KVN00808054-96		Cable assembely/P80/8MMQ/5M M14*1.5
11	KHQ0757		Conntector 2 PINS/F
12	KTY2083		Connector M8/2MMQ
13	KHJ0544		Spring/CH19 /CH19Central adaptor torch side Plasma 5 pins
14	KZX0078		Central adaptor torch side Plasma 5 pins
15	KCG6009		Spanner for P80

● Complete Torch

Code	Ref.	Description
KVT6899		Plasma cutting torch/curved injection molding handle P80 10MMQ 5M center adapter/6 holes
KVT6898		Plasma cutting torch/curved injection molding handle P80 10MMQ 5M M16×1.5/6 holes
KVT6893		Plasma cutting torch/curved injection molding handle P80 10MMQ 10M M16×1.5/6 holes
KVT6899-00		Plasma cutting torch/curved injection molding handle P80 10MMQ 5M center adapter/4 holes
KVT6898-00		Plasma cutting torch/curved injection molding handle P80 10MMQ 5M M16×1.5/4 holes
KVT6893-00		Plasma cutting torch/curved injection molding handle P80 10MMQ 10M M16×1.5/4 holes
