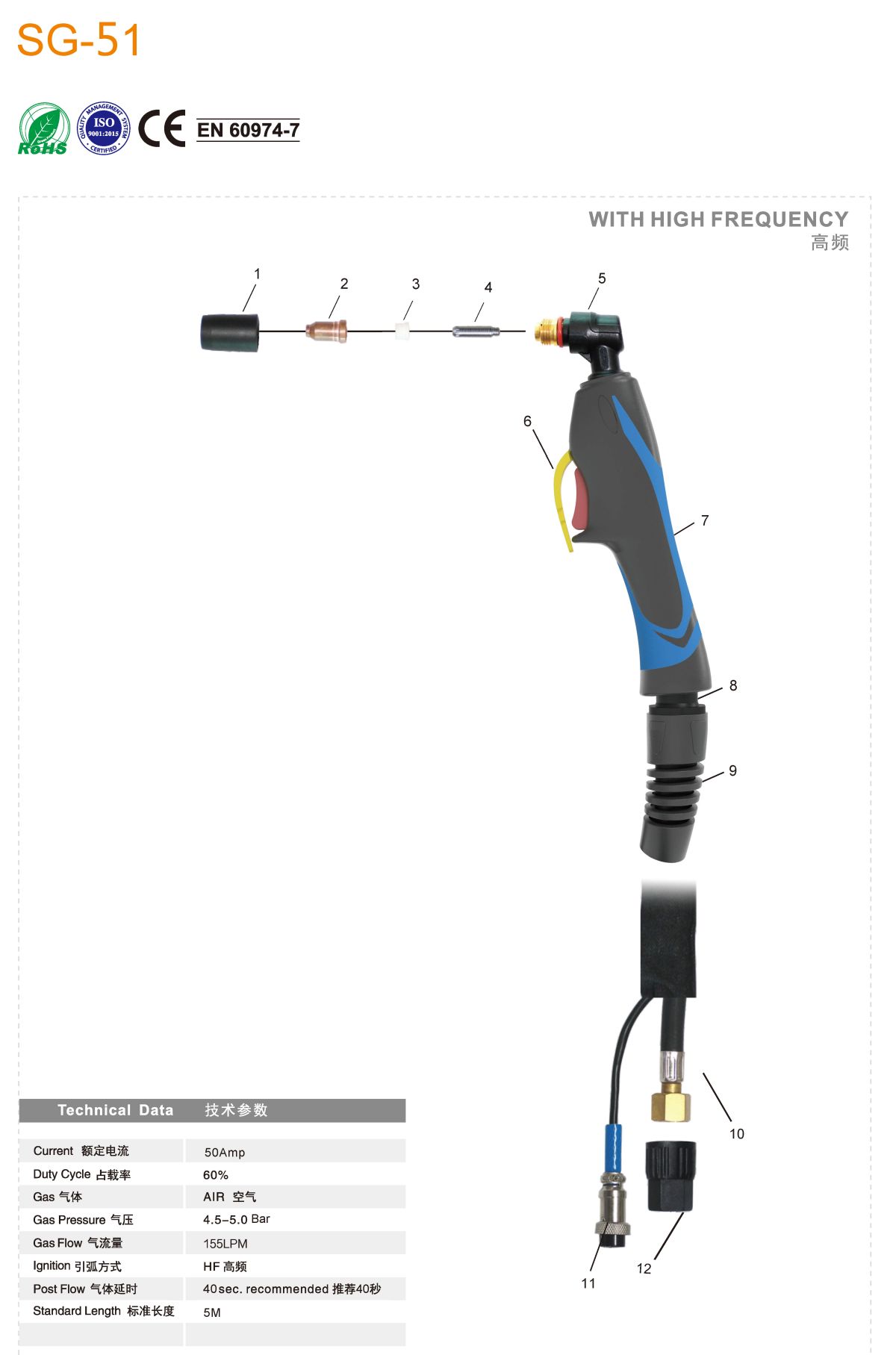

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KVS0092 | Outside nozzle SG51 | |
| 2 | Tip | ||
| 2.1 | KVU0689-10 | Tip Φ1.0mm SG51 | |
| 2.2 | KVU0689-12 | Tip Φ1.2mm 30A | |
| 3 | KVF0074 | Diffuser SG51 | |
| 4 | KVB0093 | Electrode SG51 | |
| 5 | KVZ0033 | Plasma torch head SG51 | |
| 6 | KHQ0240 | Switch/kit/SG51/SG55/P31 | |
| 7 | KGV0025 | Label/TIG、PLASMA/ITC;For IGV0685-01、IGV0025-01/TIG、PLASMA/ITC | |
| 8 | KHJ0860 | Small joint TIG 9-17-20 | |
| 9 | KHJ0868 | Big spring support for TIG 18-26 | |
| 10 | Cable assembely | ||
| 10.1 | KVN00606055-00 | Cable assembely/SG51/SG55/6MMQ/5M M16*1.5 | |
| 10.2 | KVN00606055-98 | Cable assembely/SG51/SG55/6MMQ/5M M16*1.5/E | |
| 11 | KHQ0757 | Conntector 2 PINS/F | |
| 12 | KHJ0029 | Protection nut CH19 |
● Complete Torch
| Code | Ref. | Description | |
| KVT6220 | Plasma torch/SG51 5M/M16*1.5 | ||
| KVT6220 | Plasma torch/SG51 5M M16*1.5/red body black rubber handle/E | ||
