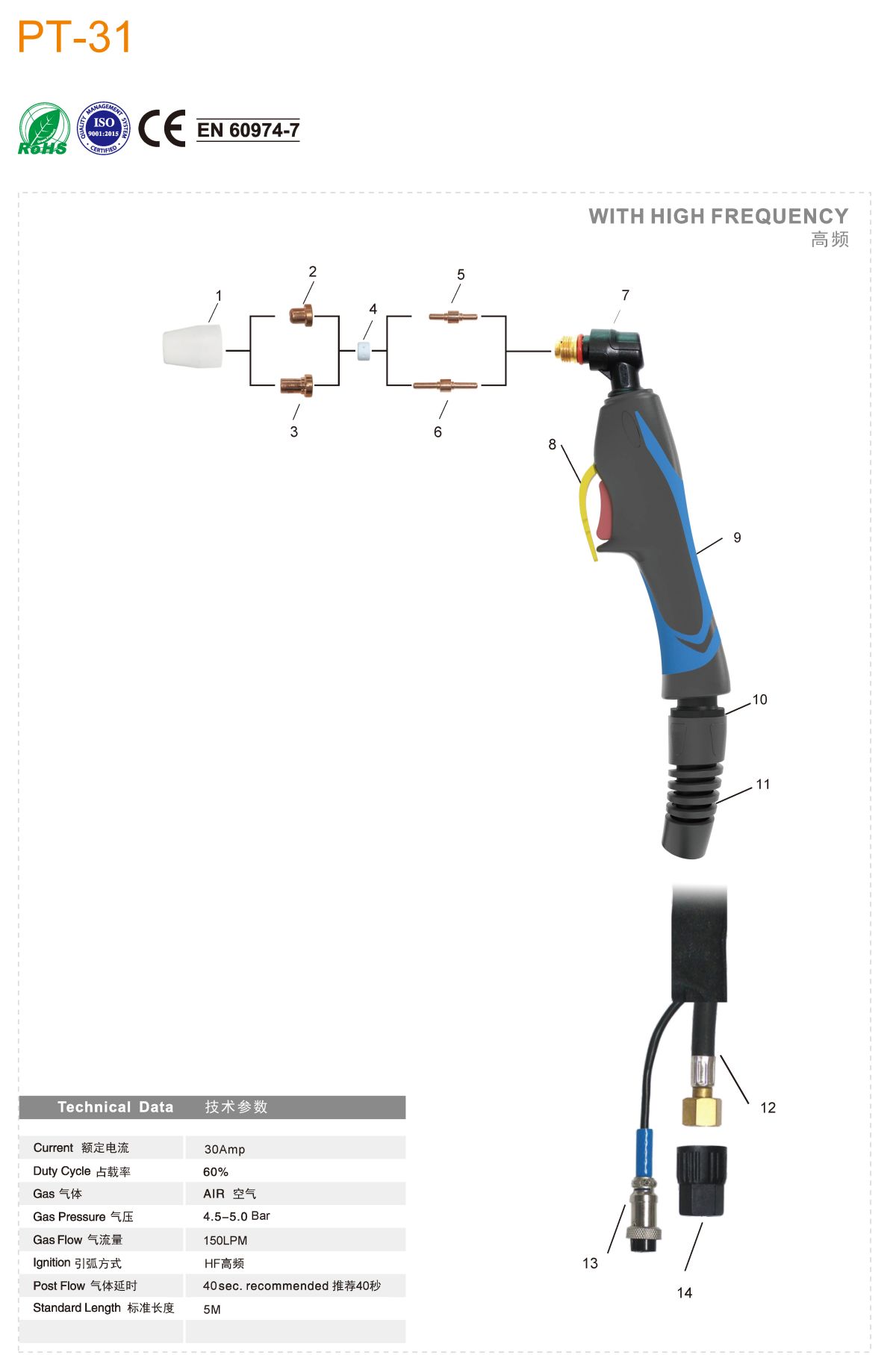

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KVS0071 | Outside nozzle PT-31 | |
| 2 | KVU0086 | Tip Ф1.0mm PT31 30A | |
| 3 | Tip | ||
| 3.1 | KVU0056-10 | Tip Ф1.0mm PT31/long | |
| 3.2 | KVU0056-11 | Tip Ф1.1mm PT31/long | |
| 3.3 | KVU0056-14 | Tip Ф1.4mm PT31/long | |
| 4 | KVF0078 | Diffuser PT-31 | |
| 5 | KVB0087 | Electrode PT31 | |
| 6 | KVB0094 | Electrode/PT31/long | |
| 7 | KVZ0032 | Plasma torch head PT31 | |
| 8 | KHQ0240 | Switch/kit/SG51/SG55/PT31 | |
| 9 | KGV0025 | Plasma handle PT31 | |
| 10 | KHJ0860 | Small joint TIG 9-17-20 | |
| 11 | KHJ0868 | Big spring support for TIG 18-26 | |
| 12 | Cable assembely | ||
| 12.1 | KVN00504055-00 | Cable assembely/PT31/4MMQ/5M M16*1.5 | |
| 12.2 | KVN00504055-98 | Cable assembely/PT31/4MMQ/5M M16*1.5/E | |
| 13 | KHQ0757 | Conntector 2 holes | |
| 14 | KHJ0029 | Protection nut CH19 |
● Complete Torch
| Code | Ref. | Description | |
| KVT6650 | Plasma torch/PT31/5M M16*1.5 | ||
| KVT6250 | Plasma torch/PT31/5M M16*1.5/E; | ||
