● Product Parameters

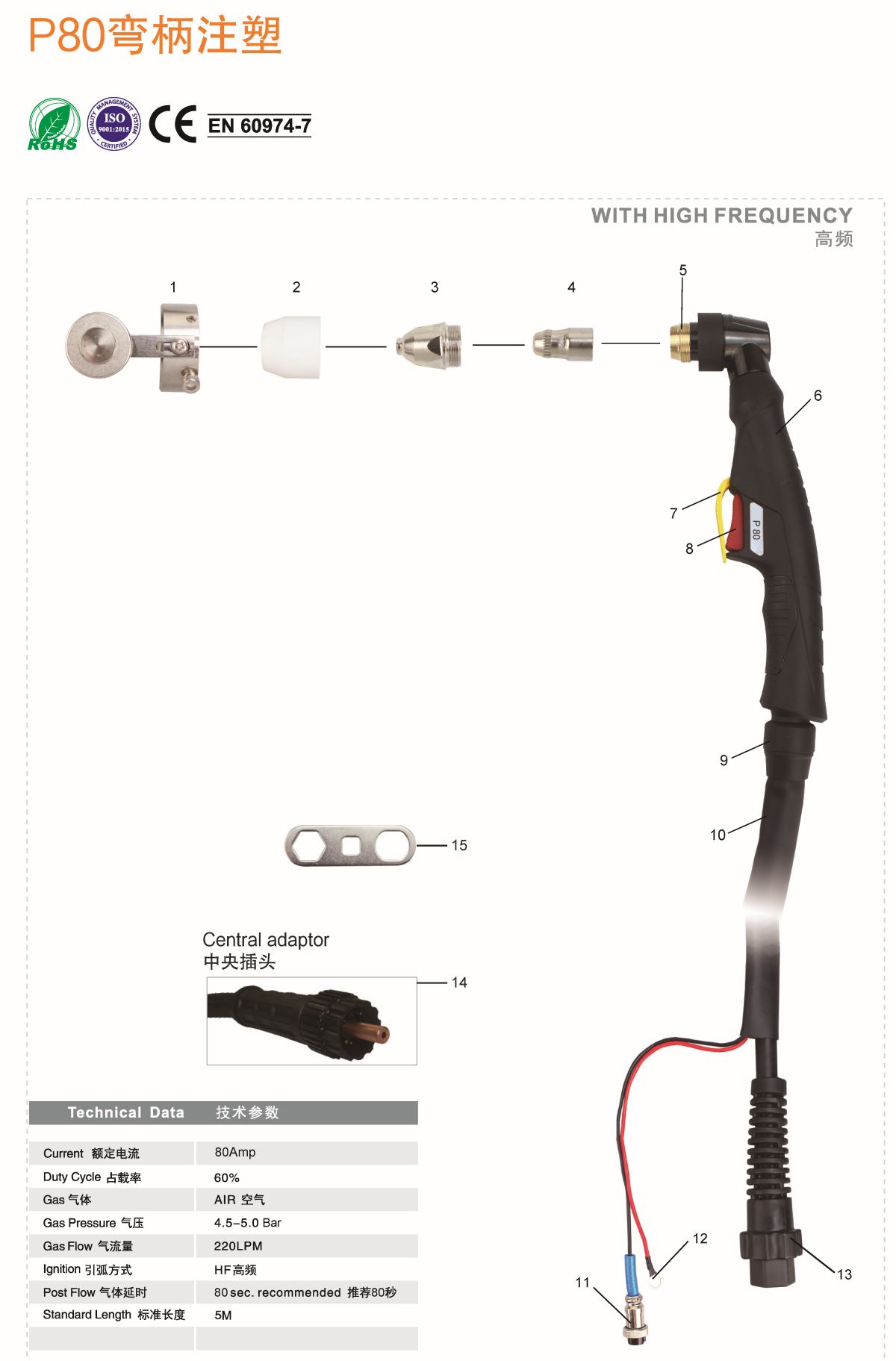

| Position | Code | Ref. | Description |
| 1 | KSM0709 | Isolated Wheel/P80 | |
| 2 | KVS0013-02 | TGN02004 | Ceramic outside nozzle/Panasonic P80 |
| 3 | Tip | ||
| 3.1 | KVU0039-10 | TET01110 | Tip Ф1.0mm/P80 |
| 3.2 | KVU0039-13 | TET01130 | Tip Ф1.3mm/P80 |
| 3.3 | KVU0039-15 | TET01512 | Tip Ф1.5mm/P80 |
| 3.4 | KVU0039-17 | Tip Ф1.7mm/panasonic P80 | |
| 4 | KVB0020 | TET02033 | Electorde/P80 |
| 5 | Torch Head | ||
| 5.1 | KVZ1048 | Plasma Torch Head/P80 | |
| 5.2 | KVZ1048-01 | Plasma Torch Head/P80/4 holes | |
| 6 | KGV0666 | Plasma handle P80 | |
| 7 | KHJ0534 | Switch protection shield of plasma torech/OEM/2017 | |
| 8 | KHQ0700 | Switch protection shield of plasma torech/OEM/2017 | |
| 9 | KHJ0893 | Switch control line connector (female) | |
| 10 | Cable assembely | ||
| 10.1 | KVN00810050-96 | Cable assembely/P80/8MMQ/5M center adapter | |
| 10.2 | KVN00810105-96 | Cable assembely/P80/10MMQ/10M M16*1.5 | |
| 10.3 | KVN00808054-96 | Cable assembely/P80/8MMQ/5M M14*1.5 | |
| 11 | KHQ0757 | Conntector 2 PINS/F | |
| 12 | KTY2083 | Connector M8/2MMQ | |
| 13 | KHJ0544 | Spring/CH19 /CH19Central adaptor torch side Plasma 5 pins | |
| 14 | KZX0078 | Central adaptor torch side Plasma 5 pins | |
| 15 | KCG6009 | Spanner for P80 |
● Complete Torch
| Code | Ref. | Description | |
| KVT6899 | Plasma cutting torch/curved injection molding handle P80 10MMQ 5M center adapter/6 holes | ||
| KVT6898 | Plasma cutting torch/curved injection molding handle P80 10MMQ 5M M16×1.5/6 holes | ||
| KVT6893 | Plasma cutting torch/curved injection molding handle P80 10MMQ 10M M16×1.5/6 holes | ||
| KVT6899-00 | Plasma cutting torch/curved injection molding handle P80 10MMQ 5M center adapter/4 holes | ||
| KVT6898-00 | Plasma cutting torch/curved injection molding handle P80 10MMQ 5M M16×1.5/4 holes | ||
| KVT6893-00 | Plasma cutting torch/curved injection molding handle P80 10MMQ 10M M16×1.5/4 holes | ||
