● Product Parameters

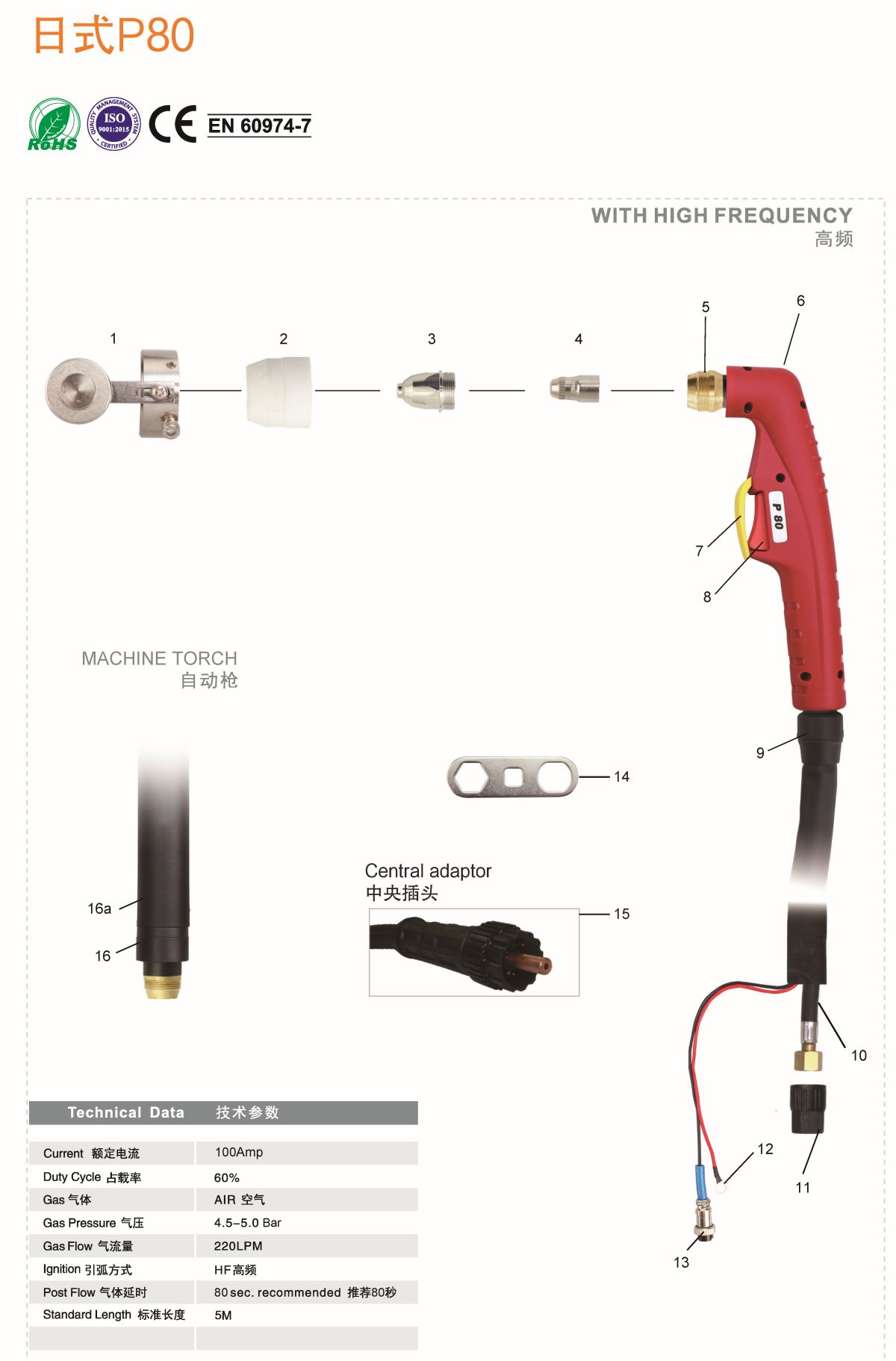

| Position | Code | Ref. | Description |
| 1 | KSM0709 | Isolated Wheel/P80 | |
| 2 | KVS0013 | TGN02004 | Ceramic Outside Nozzle/P80 |
| 3 | Tip | ||
| 3.1 | KVU0039-10 | TET01110 | Tip Ф1.0mm/P80 |
| 3.2 | KVU0039-13 | TET01130 | Tip Ф1.3mm/P80 |
| 3.3 | KVU0039-15 | TET01512 | Tip Ф1.5mm/P80 |
| 3.4 | KVU0039-17 | Tip Ф1.7mm/panasonic P80 | |
| 4 | KVB0020 | TET02033 | Electorde/Panasonic P80 |
| 5 | KVZ0093 | TKU08103 | Plasma Cutting Torch Head P80/Light |
| 6 | KGV0035 | Plasma Handle Manuale/A Seires/Red | |
| 7 | KHJ0722 | Protection Part/Plasma/Yellow | |
| 8 | KHQ0700 | Trigger | |
| 9 | KHJ0893 | Tig joint/small/new type | |
| 10 | Cable assembely | ||
| 10.1 | KVN00810050-00 | Cable assembely/P80/10MMQ/5M center adaptor | |
| 10.2 | KVN10810051-00 | Cable assembely/PP80/10MMQ/5M M16×1.5 | |
| 10.3 | KVN10810052-00 | Cable assembely/P80/10MMQ/5M ATT.1/4G | |
| 10.4 | KVN00810054-00 | Cable assembely/P80/10MMQ/5M ATT.3/8G | |
| 10.5 | KVN00810055-00 | Cable assembely/P80/10MMQ/5M M14×1.5 | |
| 10.6 | KVN00810050-00 | Cable assembely/P80/10MMQ/5M M16×1.5 | |
| 10.7 | KVN10810051-00 | Cable assembely/PP80/10MMQ/5M center adaptor | |
| 10.8 | KVN10810052-00 | Cable assembely/PP80/10MMQ/5M ATT.1/4G | |
| 10.9 | KVN10810054-00 | Cable assembely/PP80/10MMQ/5M ATT.3/8G | |
| 10.1 | KVN10810055-00 | Cable assembely/PP80/10MMQ/5M M14×1.5 | |
| 11 | KHJ0029 | Protection nut CH19 | |
| 12 | ITY2083 | Connector M8/2MMQ | |
| 13 | IHQ0757 | Conntector 2 holes | |
| 14 | ICG6009 | Spanner for P80 | |
| 15 | IZX0078 | Central adaptor torch side Plasma 5 pins | |
| 16 | IVZ0070 | Plasma machine torch head P80 | |
| 16a | IGV0705 | Fiberglass position tube/LTM torch |
● Complete Torch
| Code | Ref. | Description | |
| KVT0647 | Plasma Cutting Torch P80/10mmq/5m Central Adapter | ||
| KVT0646 | Plasma Cutting Torch /P80 /10mmq /5m 3/8G | ||
| KVT0985 | Plasma Cutting Torch /P80 /10mmq /5m M16×1.5 | ||
| KVT0981 | Plasma Cutting Torch /P80 /10mmq /5m 1/4G | ||
| KVT0982 | Plasma Cutting Torch /P80 /10mmq /5m M14×1.5 | ||
| KVT8102 | Plasma Cutting Torch /P80 /14mmq /5m M16×1.5 | ||
| KVT8103 | Plasma Cutting Torch /P80 /12mmq /5m M16×1.5 | ||
| KVT0100 | Plasma auto torch/PP80/5M 1/4G | ||
| KVT0106 | Plasma auto torch/PP80/5M 3/8G | ||
| KVT0107 | Plasma auto torch/PP80/5M M14*1.5 | ||
| KVT0108 | Plasma auto torch/PP80/5M M16*1.5 | ||
| KVT0109 | Plasma auto torch/PP80/5M center adaptor | ||
