● Product Parameters

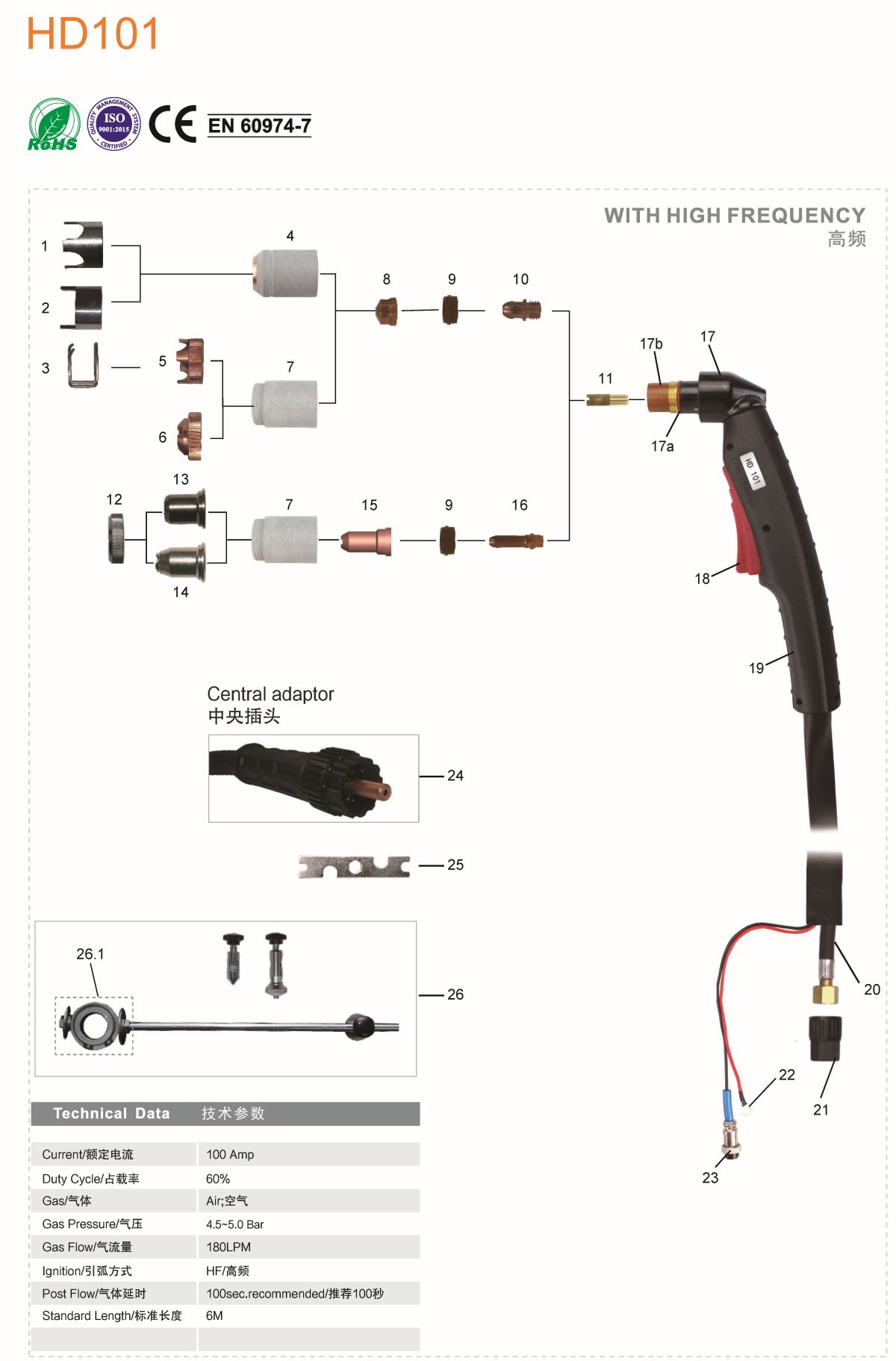

| Position | Code | Ref. | Description |
| 1 | KSM0069 | CV0014 | Four Pointed Spacer/LT101-141 |
| 2 | KSM0067 | CV0012 | Double Pointed Spacer/LT101-151 |
| 3 | KSM0066 | CV0011 | Spacer Spring LT100-151 |
| 4 | KVS0666-05 | PC0111 | Outside Nozzle LT101/Grey |
| 5 | KSM0084 | CV0039 | Four Point Crown Shield With Insulator/LT101-141 |
| 6 | KSM0078 | CV0023 | Spacer For Contact Cutting/LT101-141 |
| 7 | KVS0680-05 | PC0130 | Contact Nozzle Retaining Cap/LT101/Grey |
| 8 | Tip | ||
| 8.1 | KVU0606-11 | PD0101-11 | Tip Φ1.1 LT101-141 |
| 8.2 | KVU0606-14 | PD0101-14 | Tip Φ1.4 LT101-141 |
| 8.3 | KVU0606-17 | PD0101-17 | Tip Φ1.7 LT101-141 |
| 9 | KVF0606 | PE0101 | Diffuser Lt101-141 |
| 10 | KVB0606 | PR0101 | Electrode Plasma LT101-141 |
| 11 | KZN0517 | Air tube/LT100-101 | |
| 12 | KSM0099 | W0300184 | Locking Nut/Lt150 |
| 13 | KSM0003 | CV0008 | Contact cutting attachment/LT101-151 |
| 14 | KSM0004 | CV0009 | Long Contact Cutting Attachement/Lt100-151 |
| 15 | Tip | ||
| 15.1 | KVU0662-11 | Extended tip Ф1.1 mm LT101-151 | |
| 15.2 | KVU0662-14 | PD0117-14 | Extended tip Ф1.4 mm LT101-151 |
| 15.3 | KVU0662-17 | PD0117-17 | Extended tip Ф1.7 mm LT101-151 |
| 15.4 | KVU0666 | Extended tip Ф1.2 mm LT101-151 | |
| 16 | KVB0661 | PR0116 | Extended electrode Plasma LT101 |
| 17 | KVZ0604 | Plasma cutting torch head A101 | |
| 17a | KFT0686 | EA0131 | "O" ring Ф 18.77×1.78mm in silicon |
| 17b | KVF9006 | Front insulator/LT101 | |
| 18 | KHQ0436 | Switch kit for PLASMA | |
| 19 | KGV0662 | Plasma handle/heavy duty/LT50-LT151/black | |
| 20 | Cable assembely | ||
| 20.1 | KVN00210065-35 | Cable assembely/LT100-101/10MMQ/6M M16×1.5/2 wires/epdm | |
| 20.2 | KVN00210060-35 | Cable assembely/LT100-101/10MMQ/6M center adapter/2 wires/epdm | |
| 21 | KHJ0029 | Protection nut CH19 | |
| 22 | KTY2083 | Connector M8/2MMQ | |
| 23 | KHQ0757 | Conntector 2 holes | |
| 24 | KZX0078 | Centre adapter torchside plasma 5 PINS | |
| 25 | KCG6006 | Spanner for Plasma | |
| 26 | KSM0077 | Circle cutting attachment/LT101-151 | |
| 26.1 | KSM0076 | Wheel spacer with spanner LT100-101 |
● Complete Torch
| Code | Ref. | Description | |
| KVT6957-00 | Plasma cutting torch LT100/6M center adapter/heavy duty | ||
| KVT6958-00 | Plasma cutting torch LT100/6M M16×1.5/heavy duty | ||
