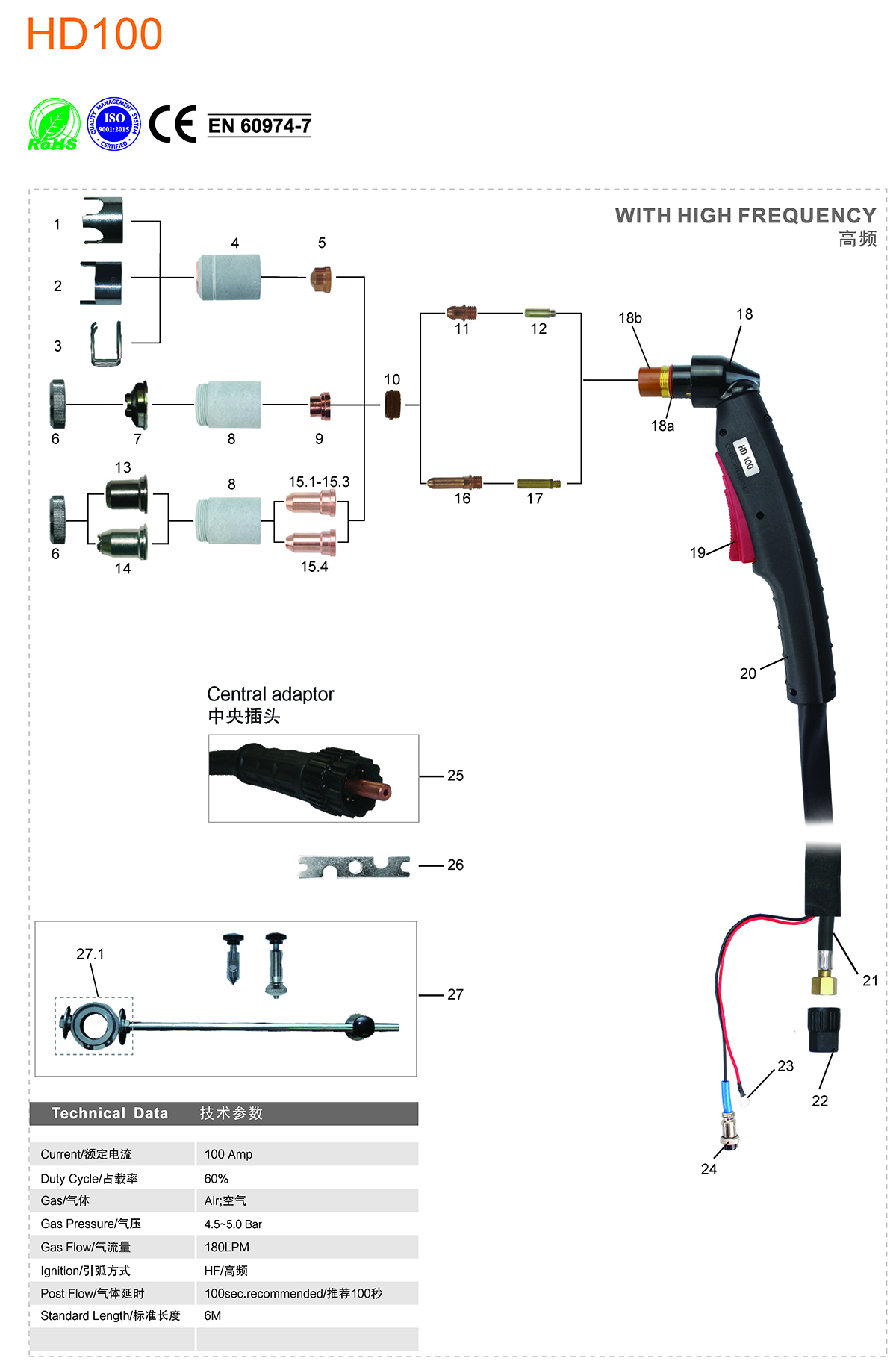

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KSM0069 | W0300177 | Four pointed spacer/LT100-150 |
| 2 | KSM0067 | 1408 / W0300131 | Double pointed spacer/LT100-150 |
| 3 | KSM0066 | W0300130 | Spacer spring LT100-150 |
| 4 | KVS0082-05 | W0300129 | Outside nozzle LT100/grey |
| 5 | Tip | ||
| 5.1 | KVU0071-11 | 1371 / W0300125 | Tip Φ1.1mm LT100/150 |
| 5.2 | KVU0071-13 | 1372 / W0300174 | Tip Φ1.3mm LT100/150 |
| 5.3 | KVU0071-16 | 1373 / W0300175 | Tip Φ1.6mm LT100/150 |
| 6 | KSM0099 | W0300184 | Locking nut |
| 7 | KSM0083 | W0300180 | Spacer for contact cutting/LT100-150 |
| 8 | KVS0083-05 | W0300138 | Contact nozzle retaining cap/LT100/grey |
| 9 | Tip | ||
| 9.1 | KVU0073-13 | W0300135 | Flat Tip Φ1.35/LT100-150 |
| 9.2 | KVU0073-16 | W0300137 | Flat Tip Φ1.6/LT100-150 |
| 10 | KVF0004 | 1377 / W0300124 | Diffuser LT100/150 |
| 11 | KVB0089 | 1376 / W0300123 | Electrode HF LT100/150 |
| 12 | KZN0769 | W0300122 | Air tube/CB100 |
| 13 | KSM0003 | W0300182 | Shield cap hand tip (Max 50A)/LT100-151 |
| 14 | KSM0004 | W0300183 | Spacer for contact cutting hand tip /LT100-151 |
| 15 | Tip | ||
| 15.1 | KVU0075-13 | W0300178 | Extended tip Φ 1.3/LT100-150 |
| 15.2 | KVU0075-16 | W0300179 | Extended tip Φ1.6/LT100-150 |
| 15.3 | KVU0075-18 | Extended tip Φ1.8/LT100-150 | |
| 15.4 | KVU0080-11 | 1369 / W0300134 | Contact extended tip /LT100-150 |
| 16 | KVB0095 | 1517 / W0300133 | Extended electrode/HF LT100-150 |
| 17 | KZN0762 | Extended air tube/LT100-101 | |
| 18 | KVZ0046 | Plasma cutting torch head 100 | |
| 18a | KFT0689 | 1398 / W0300121 | “O” RING/LT150/red silicone |
| 18b | KVF9006 | Front insulator/LT100-101 | |
| 19 | KHQ0436 | Switch kit for PLASMA | |
| 20 | KGV0662 | Plasma handle/heavy duty/LT50-LT151/black | |
| 21 | Cable assembely | ||
| 21.1 | KVN00210065-35 | Cable assembely/LT100-101/10MMQ/6M M16×1.5/2 wires/epdm | |
| 21.2 | KVN00210060-35 | Cable assembely/LT100-101/10MMQ/6M center adapter/2 wires/epdm | |
| 22 | KHJ0029 | Protection nut CH19 | |
| 23 | KTY2083 | Connector M8/2MMQ | |
| 24 | KHQ0757 | Conntector 2 holes | |
| 25 | KZX0078 | Centre adapter torchside plasma 5 PINS | |
| 26 | KCG6006 | Spanner for Plasma | |
| 27 | KSM0077 | Circle cutting attachment/LT101-151 | |
| 27.1 | KSM0076 | Wheel spacer with spanner LT100-101 |
● Complete Torch
| Code | Ref. | Description |
| KVT6859-00 | Plasma cutting torch LT100/6M M16×1.5/heavy duty | |
| KVT6857-00 | Plasma cutting torch LT100/6M center adapter/heavy duty |
