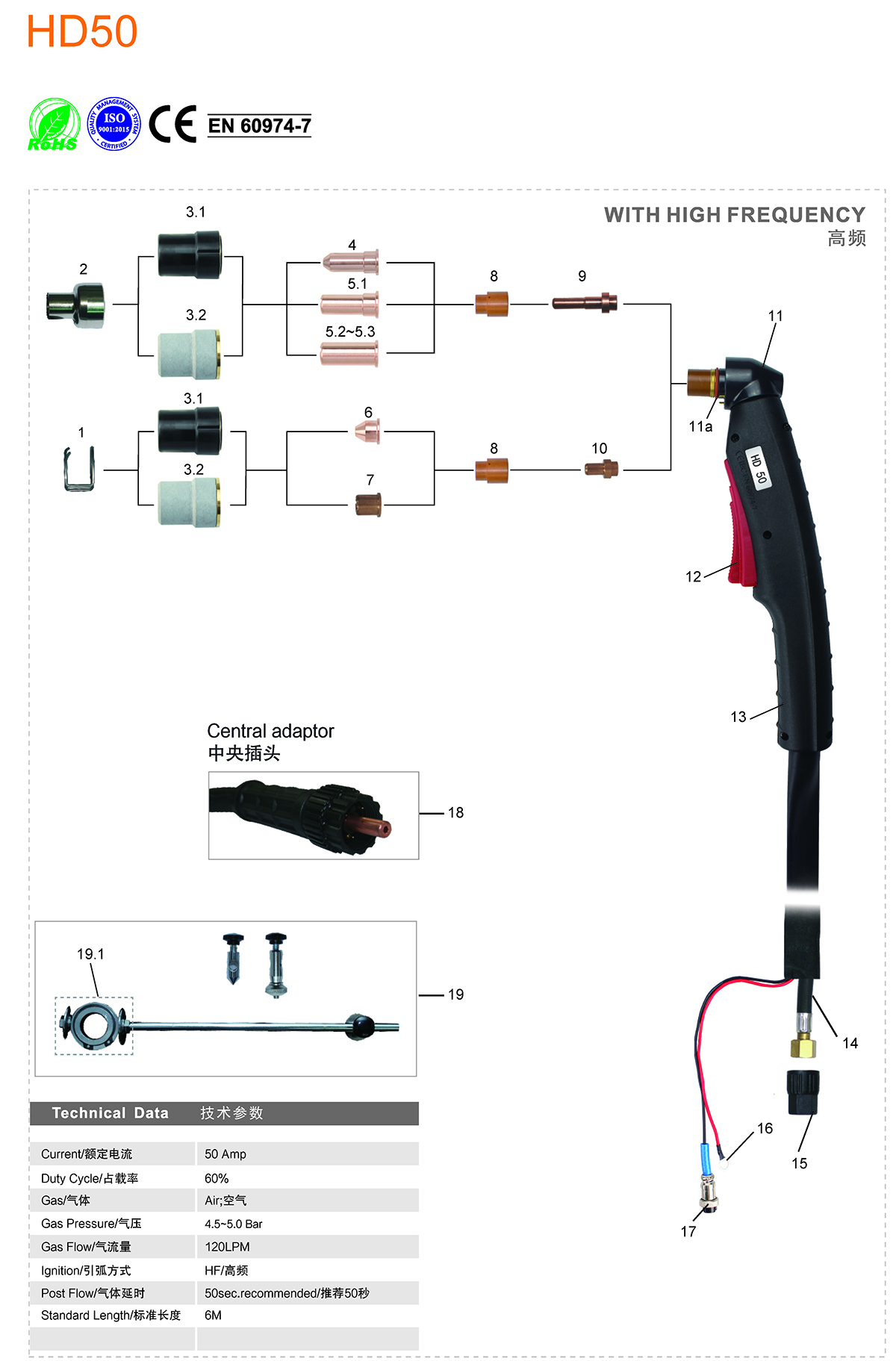

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KSM0603 | Spacer spring/LT50 | |
| 2 | KSM0006 | Shield cap for extended tip/LT50 | |
| 3 | Outside nozzle | ||
| 3.1 | KVS0008-03 | 5.710.121 | Outside nozzle/bakelite/LT50 |
| 3.2 | KVS0008-05 | Outside nozzle/maximum life/gray glass fiber/LT50 | |
| 4 | KVU0069-10 | 1306 | Extended conical tip Ф1.0mm/LT50 |
| 5 | Extended tip | ||
| 5.1 | KVU0019-10 | 1370 | Extended tipФ1.0mm/LT50 |
| 5.2 | KVU0018-10 | 1395 | Extended tipФ1.0mm/LT50-70 |
| 5.3 | KVU0018-11 | Extended tipФ1.1mm/LT50-70 | |
| 6 | KVU0064-10 | 1305 | Conical tipФ1.0mm/LT50-70 |
| 7 | Tip | ||
| 7.1 | KVU0033-10 | 1396 | TipФ1.0mm/LT50-70/L=12.3mm |
| 7.2 | KVU0033-11 | TipФ1.1mm/LT50-70/L=12.3mm | |
| 7.3 | KVU0033-12 | TipФ1.2mm/LT50-70/L=12.3mm | |
| 7.4 | KVU0065-10 | 1304 | TipФ1.0mm/LT50-70/L=11.2mm |
| 8 | KVF0002 | Diffuser LT50-70 | |
| 9 | KVB0015 | 1518-HF | Extended electrode HF Plasma LT50 |
| 10 | KVB0062 | 1521-HF | Electrode HF Plasma LT50 |
| 11 | KVZ1088 | Torch head CB50/overload | |
| 11a | KFT0707 | “O”ring Φ13×16.6×1.8MM /LT50-70/red silicone | |
| 12 | KHQ0436 | Switch kit for plasma | |
| 13 | KGV0662 | Plasma handle/heavy duty/LT50-LT151/black | |
| 14 | Cable assembely | ||
| 14.1 | KVN00006060-35 | Cable assembely/LT50-70/6MMQ/6M M16×1.5/2 wires/epdm | |
| 14.2 | KVN00006065-35 | Cable assembely/LT50-70/6MMQ/6M center adapter/2 wires/epdm | |
| 15 | KHJ0029 | Protection nut CH19 | |
| 16 | KTY2083 | Connector M8/2MMQ | |
| 17 | KHQ0757 | Conntector 2 holes | |
| 18 | KZX0078 | Centre adapter torchside plasma 5 PINS | |
| 19 | KSM0081 | Circle cutting attachment/LT50 | |
| 19.1 | KSM0082 | Wheel spacer with spanner/LT50 |
● Complete Torch
| Code | Ref. | Description |
| KVT6809-00 | Plasma cutting torch LT50/6M M16x1.5/heavy duty | |
| KVT6807-00 | Plasma cutting torch LT50/6M center adapter/heavy duty |
