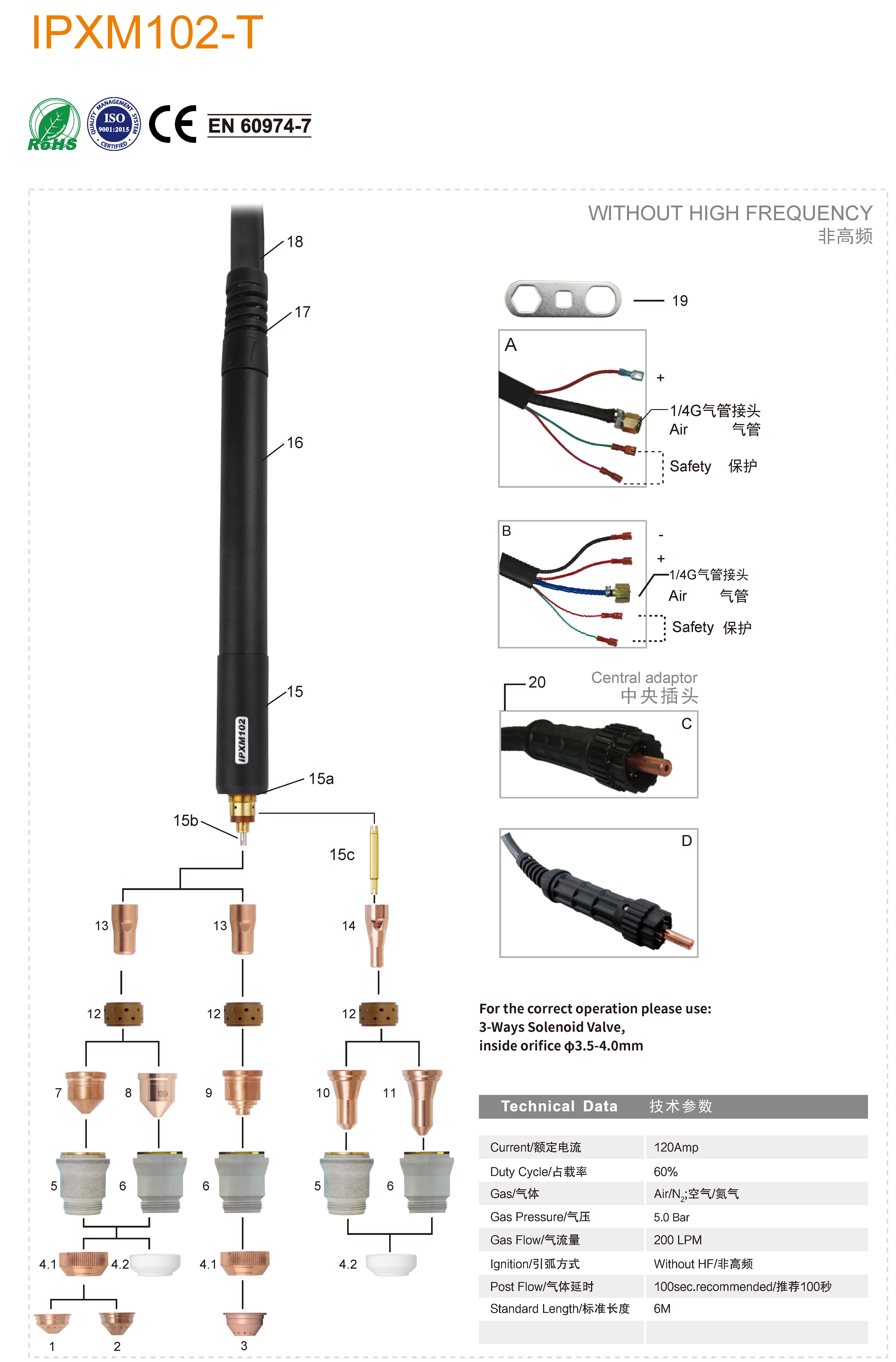

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KSM0653 | Shield cap/IPXM102/40-80A/machine | |
| 2 | KSM0654 | Shield cap/IPXM102/100-120A/machine | |
| 3 | KSM0766 | Shield cap/IPX102/Gouging | |
| 4 | Shield cap | ||
| 4.1 | KSM0655 | Shield cap/IPX102 | |
| 4.2 | KSM0655-01 | Shield cap/IPX102/Alumina cup | |
| 5 | KVS0634-05 | Outside nozzle IPX102/6 holes/40-80A/gray glass fiber | |
| 6 | KVS0631-05 | Outside nozzle IPX102/8 holes/100-120A/gray glass fiber | |
| 7 | Tip | ||
| 7.1 | KVU0789-10 | Tip Φ1.0mm/40A/IPX102 | |
| 7.2 | KVU0789-11 | Tip Φ1.1mm/50A/IPX102 | |
| 7.3 | KVU0789-12 | Tip Φ1.2mm/60A/IPX102 | |
| 7.4 | KVU0789-14 | Tip Φ1.4mm/80A/IPX102 | |
| 8 | Tip | ||
| 8.1 | KVU0791-16 | Tip Φ1.6mm/100A/IPX102 | |
| 8.2 | KVU0791-18 | Tip Φ1.8mm/120A/IPX102 | |
| 9 | KVU0757 | Tip 40-120A/IPX102/Gouging | |
| 10.1 | KVU0755-10 | Extended tip Φ1.0mm/40A/IPX102 | |
| 10.2 | KVU0755-11 | Extended tip Φ1.1mm/50A/IPX102 | |
| 10.3 | KVU0755-12 | Extended tip Φ1.2mm/60A/IPX102 | |
| 10.4 | KVU0755-14 | Extended tip Φ1.4mm/80A/IPX102 | |
| 11 | KVU0759-16 | Extended tip Φ1.6mm/100A/IPX102 | |
| 12 | KVF0051 | Diffuser IPX102 | |
| 13 | KVB0631 | Electrode IPX102 | |
| 14 | KVB0637 | Extended electrode IPX102 | |
| 15 | KVZ0723 | Plasma machine torch head IPXM102-T | |
| 15a | KFT8557 | Oring Φ19.6×16mm/IPX102/RED SIL | |
| 15b | KZN0707 | Air tube/IPX102 | |
| 15c | KZN0644 | Long air tube/IPX102 | |
| 16 | KGV0706 | Fiberglass position tube/PTM torch | |
| 17 | KHJ0931 | Cable suppor spring/big/TIG,PLASMA/black | |
| 18 | Cable assembely | ||
| 18.1 | KVN01210063-300 | Cable assembely/IPT100/IPX102/6M/2 wires/integrated | |
| 18.2 | KVN01210061-300 | Cable assembely/IPT100/IPX102/6M/2 wires/separated | |
| 18.3 | KVN01210060-300 | Cable assembely/IPT100/IPX102/6M/2 wires/centre adapter | |
| 18.4 | KVN1121006C-300 | Cable assembely/IPTM80/100/IPXM82/102/6M/coaxial cable/centre adapter | |
| 19 | KCG6009 | Spanner For P80 | |
| 20 | KZX0078 | Central adaptor torchside Plasma 5 pins |
● Complete Torch
| Code | Ref. | Description |
| KVT33091 | Plasma cutting torch IPXM102-T/6M/1/4G/integrated | |
| KVT33092 | Plasma cutting torch IPXM102-T/6M/1/4G/separated | |
| KVT33093 | Plasma cutting torch IPXM102-T/6M/center adaptor | |
| KVT33094 | Plasma cutting torch IPXM102-T/6M/coaxial cable/center adapter |
