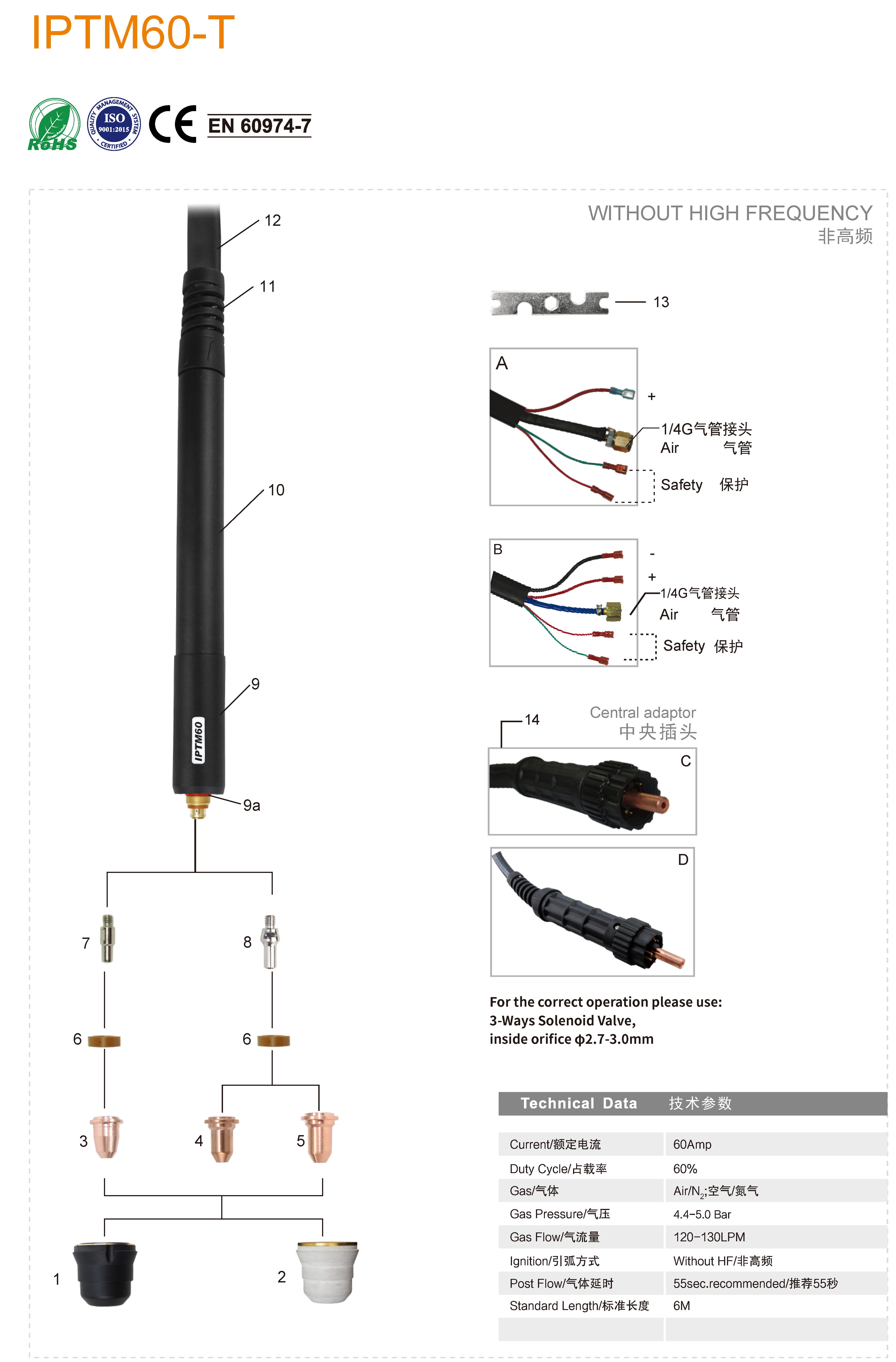

● Product Parameters
| 1 | KVS0661-03 | 60389 | Outside nozzle 6holes IPT60/bakelite |
| 2 | KVS1661-05 | Outside nozzle 6holes IPT60/Gray Glass fiber | |
| 3 | Tip | ||
| 3.1 | KVU0661-06 | PD0116-06 | Tip Φ0.6mm/20A IPT60 |
| 3.2 | KVU0661-08 | PD0116-08 | Tip Φ0.8mm/30A IPT60 |
| 3.3 | KVU0661-09 | PD0116-09 | Tip Φ0.9mm/40A IPT60 |
| 4 | Tip | ||
| 4.1 | KVU1660-06 | 51318.06 | Tip Φ0.6mm/20A IPT60/back striking |
| 4.2 | KVU1660-08 | 51318.08 | Tip Φ0.8mm/30A IPT60/back striking |
| 4.3 | KVU1660-09 | 51318.09 | Tip Φ0.9mm/40A IPT60/back striking |
| 4.4 | KVU1660-10 | Tip Φ1.0mm/50A IPT60/back striking | |
| 5 | Tip | ||
| 5.1 | KVU1668-10 | 51313P.10 | Flat tip Φ1.0mm/50A IPT60/backing striking |
| 5.2 | KVU1668-11 | 51313P.11 | Flat tip Φ1.1mm/60A IPT60/backing striking |
| 6 | KVF1601 | 60028 | Diffuser IPT20C-IPT60 |
| 7 | KVB0660 | PR0110 | Electrode Plasma IPT20C-IPT60 |
| 8 | KVB1048 | 52582 | Electrode Plasma IPT20C-IPT60/backing striking |
| 9 | KVZ0720 | Plasma machine torch head IPTM60-T/IPXM62-T | |
| 9a | KFT0709 | Oring Φ15XΦ18 IPT60 RED SIL | |
| 10 | KGV0706 | Fiberglass position tube/PTM TORCH | |
| 11 | KHJ0931 | Cable suppor spring/big/TIG,Plasma/black/MINOO | |
| 12 | Cable assembely | ||
| 12.1 | KVN01106060-300 | Cable assembely/IPT60/IPX62/6M/2 wires/centre adapter | |
| 12.2 | KVN01106063-300 | Cable assembely/IPT60/IPX62/6M/2 wires/integrated | |
| 12.3 | KVN01106061-300 | Cable assembely/IPT60/IPX62/6M/2 wires/separated | |
| 12.4 | KVN1110606C-300 | Cable assembely/IPTM60/IPXM62/6M/coaxial cable/centre adapter | |
| 13 | KCG6006 | Spanner for Plasma | |
| 14 | KZX0078 | Central adaptor torch side Plasma 5 pins |
● Complete Torch
| Code | Ref. | Description |
| KVT33041-00 | Plasma cutting torch IPTM60-T/6M/1/4G/integrated/back striking | |
| KVT33042-00 | Plasma cutting torch IPTM60-T/6M/1/4G/separated/back striking | |
| KVT33043-00 | Plasma cutting torch IPTM60-T/6M/center adaptor/back striking | |
| KVT33044-00 | Plasma cutting torch IPTM60-T/6M/coaxial cable/center adaptor/back striking |
