● Product Parameters

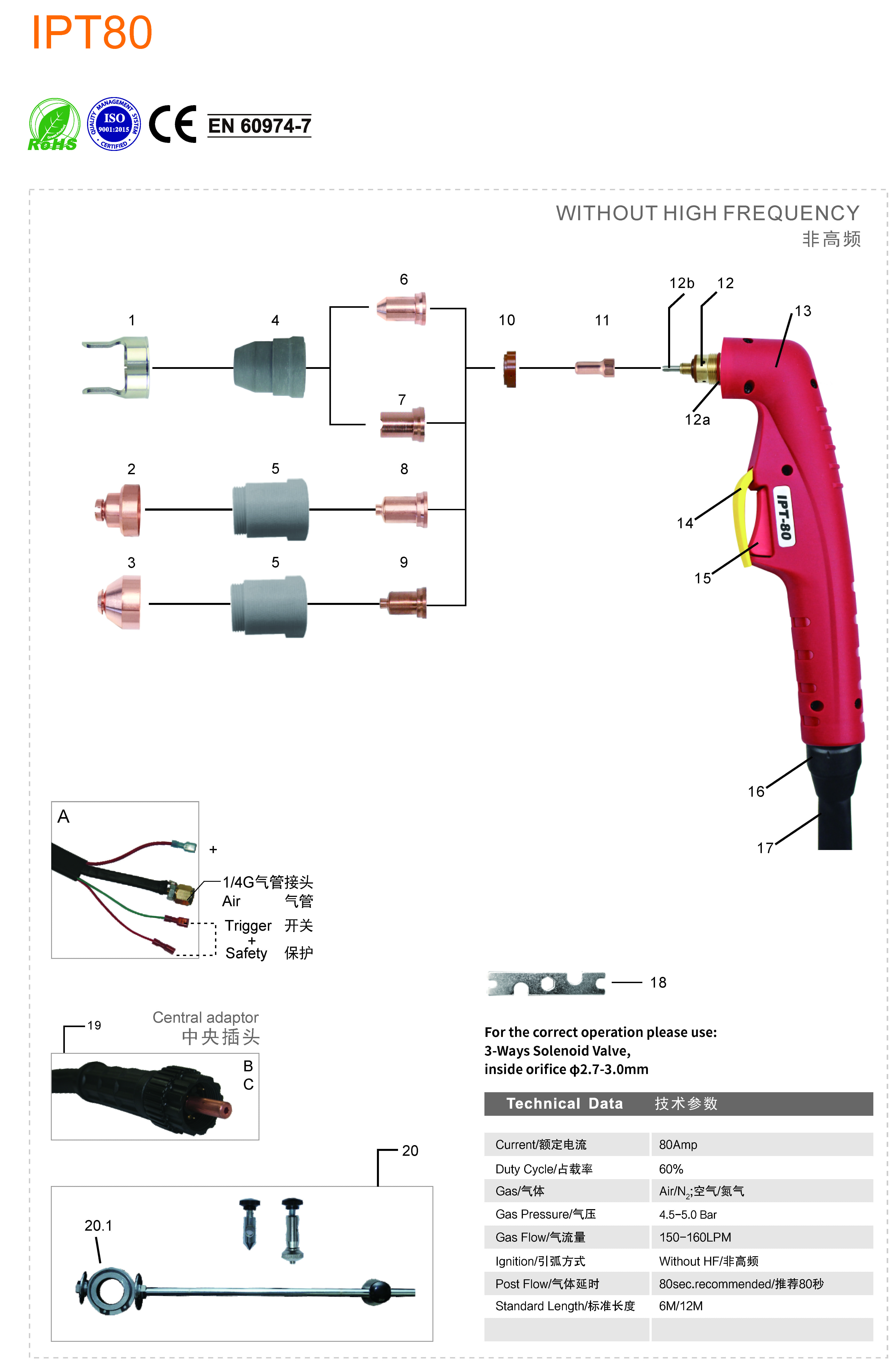

| Position | Code | Ref. | Description |
| 1 | KSM0089 | 60434 | Double pointed spacer/IPT80/backing striking |
| 2 | KSM0700 | 60504 | Shield cap/IPT80/Contact cutting/backing striking |
| 3 | KSM1064 | 60508 | Shield cap/IPT80/gouging |
| 4 | KVS1667-05 | 60510 | Outside nozzle IPT80/gray glass fiber |
| 5 | KVS1672-05 | 60511 | Outside nozzle IPT80/Contact cutting |
| 6 | Tip | ||
| 6.1 | KVU1670-10 | 51311.1 | Tip Φ1.0mm 50A/IPT80/back striking |
| 6.2 | KVU1670-11 | 51311.11 | Tip Φ1.1mm 60A/IPT80/back striking |
| 6.3 | KVU1670-12 | 51311.12 | Tip Φ1.2mm 70A/IPT80/back striking |
| 6.4 | KVU1670-13 | 51311.13 | Tip Φ1.3mm 80A/IPT80/back striking |
| 7 | KVU1671-09 | 51310.09 | Tip Φ0.9mm IPT80/Contact cutting/back striking |
| 8 | Tip | ||
| 8.1 | KVU1679-10 | 51311S.10 | Contact tip Φ1.0mm 50A/IPT80/back striking |
| 8.2 | KVU1679-11 | 51311S.11 | Contact tip Φ1.1mm 60A/IPT80/back striking |
| 8.3 | KVU1679-12 | 51311S.12 | Contact tip Φ1.2mm 70A/IPT80/back striking |
| 8.4 | KVU1679-13 | 51311S.13 | Contact tip Φ1.3mm 80A/IPT80/back striking |
| 9 | KVU1675-16 | 51311G.16 | Tip Φ1.6mm/80A/IPT80/gouging/back striking |
| 10 | KVF1665 | 60027 | Diffuser IPT80 |
| 11 | KVB1669 | 52558 | Electrode IPT80/back striking |
| 12 | KVZ0043-01 | Torch head IPT80/90° | |
| 12a | KFT0709 | 51620.6 | "O"ring Φ18x15mm IPT80 RED SIL |
| 12b | KZN0773 | 9800.42 | Air tube/IPT80 |
| 13 | KGV0031-01 | Plasma handle manual/IPT80-100/Red | |
| 14 | KHJ0722 | Protection part/Plasma/Yellow | |
| 15 | KHQ0070 | 185.0031 | Trigger |
| 16 | KHJ0893 | Joint/small/new type | |
| 17 | Cable assembly | ||
| 17.1 | KVN01210063-300 | Cable assembly/IPT80/6M/2 wires/integrated | |
| 17.2 | KVN01210123-300 | Cable assembly/IPT80/12M/2 wires/integrated | |
| 17.3 | KVN01210060-300 | Cable assembly/IPT80/6M/2 wires/centre adapto | |
| 17.4 | KVN01210120-300 | Cable assembly/IPT80/12M/2 wires/centre adaptor | |
| 17.5 | KVN01210066-300 | Cable assembly/IPT80/6M/4 wires/centre adaptor | |
| 17.6 | KVN01210126-300 | Cable assembly/IPT80/12M/4 wires/centre adaptor | |
| 18 | KCG6006 | 60368 | Spanner for Plasma |
| 19 | KZX0078 | Central adaptor torch side plasma 5 pins | |
| 20 | KSM0708 | 51853 | Circle cutting attachment IPT80 |
| 20.1 | KSM0671 | Roller stand IPT80/ with spanner |
● Complete Torch
| Code | Ref. | Description |
| KVT03051-00 | Plasma torch IPT80/6M/ 1/4G /integrated/2 wires/back striking | |
| KVT04051-00 | Plasma torch IPT80/12M/ 1/4G /integrated/2 wires/back striking | |
| KVT03053-00 | Plasma torch IPT80/6M/central adaptor/2 wires/back striking | |
| KVT04053-00 | Plasma torch IPT80/12M/central adaptor/2 wires/back striking | |
| KVT030530-00 | Plasma torch IPT80/6M/central adaptor/4 wires/back striking | |
| KVT040530-00 | Plasma torch IPT80/12M/central adaptor/4 wires/back striking |
