    BZ TORCHES Torch 24

    BZ TORCHES Torch 24

    Product Details

    ● Product Parameters

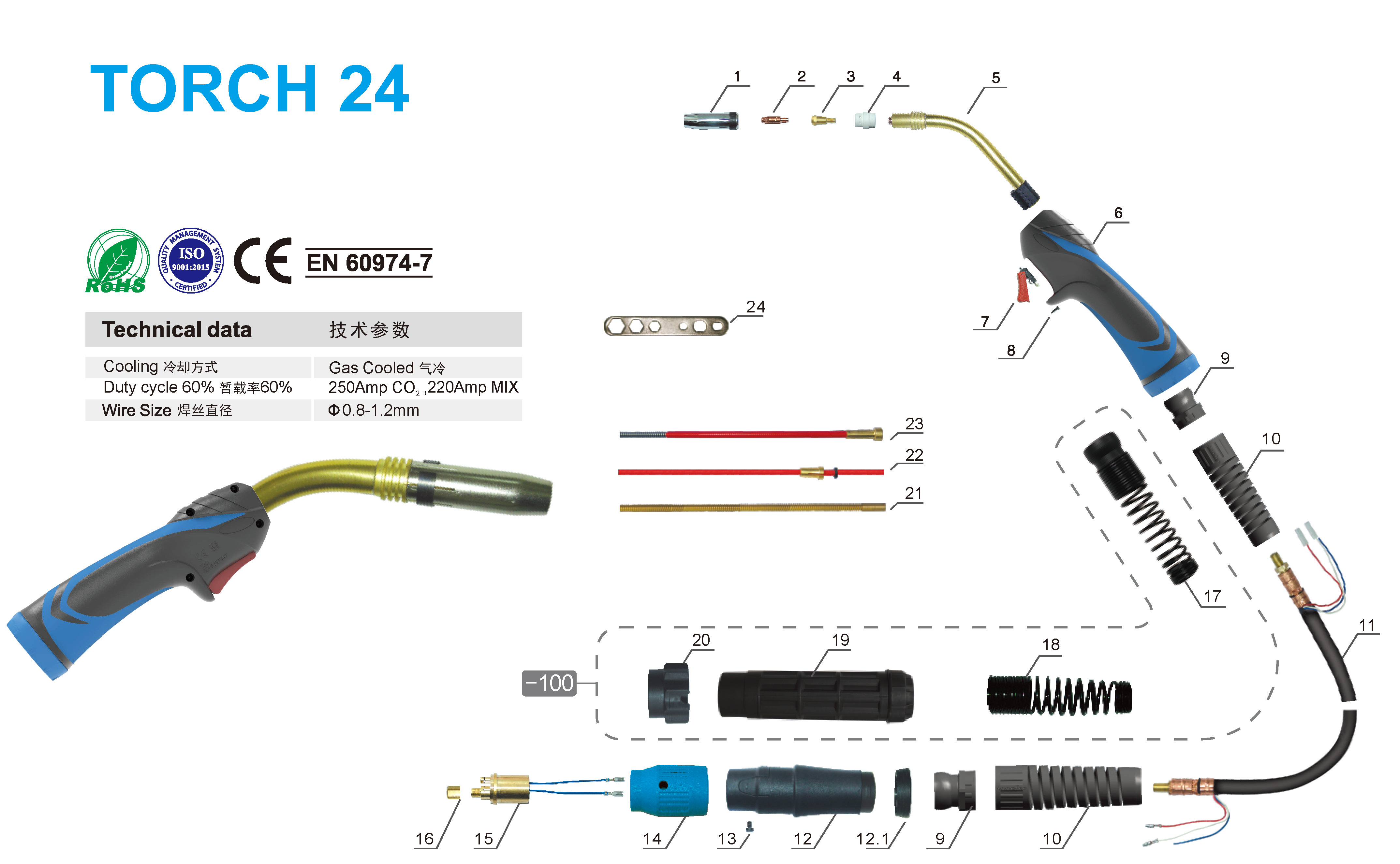

    Torch 24
    Position Code Ref. Description
    1 KCS0806 145.0080 Gas nozzleΦ12.5mm
    2 KCU0003-10 140.0253 Contact tip Φ1.0mmE -CU/M6*25
    3 KCU0683 142.0003 Contact tip holder 24KD M6x26mm
    4 KCF0539 012.0183 White ceramic gas diffuser 24KD
    5 KCZ0630 012 ,0001 Torch head 24KD
    6 KCV0890-01   MIG handle Blue/Grip
    7 KHQ0070 185.0031 Trigger
    8 KFT0874   Screw M3x10
    9 KHJ0021   Joint for MIG handle
    10 KFT0882   Spring for cable support
    11 KCN0664   Coaxial cable 3m
    12 KHJ0703   Back box
    12.1 KHJ0715   Housing for handle
    13 KFT0063   Screw M4*6
    14 KHJ0072   Adaptor nut
    15 KTB0059 501.2155 Euro central adaptorl bodyai cooling
    16 KZT0071   Liner nut
    17 KZH0864   Joint with spring
    18 KFT0897   Spring/cable support/black
    19 KHJ0645   Back box hole
    20 KHJ0070 501.0082 Gun plug nut
    21 KIC0220   Brass liner Φ4.0X2.0mm 0.35m
    22 KIC0160 126.0021 Teflon linerΦ2.0*4.0mm 3m Red
    23 KIC0560 124.0026 Insulated Red liner Φ1.0-1.2mm 3m
    24 KCG6000   Spanner for MIG torches



    ● Complete Torch

    Code Ref.   Description
    KCT2698-36   MIG 24KD torch 3m euro adaptor /spring pins
    KCT2699-36   MIG 24KD torch 4m euro adaptor /spring pins
    KCT2695-36   MIG 24KD torch 5m euro adaptor /spring pins
    ICT2698-100   MIG 24KD torch 3m with spring pins/innotec
    ICT2699-100   MIG 24KD torch 4m with spring pins/innotec
    ICT2695-100   MIG 24KD torch 5m with spring pins/innotec
