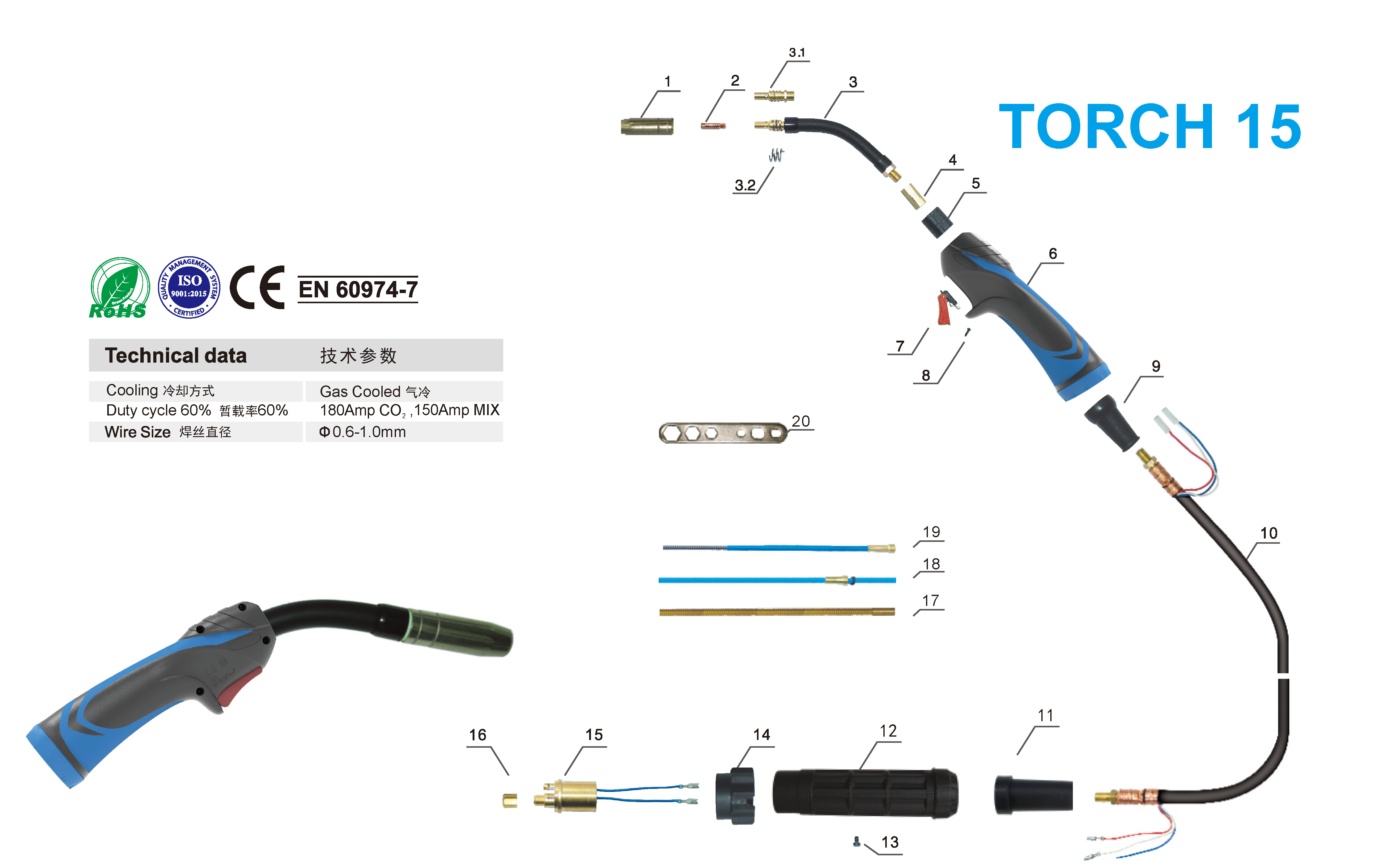

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KCS0063 | 145.0075 | Gas nozzle Φ12mm |
| 2 | KCU0003-08 | 140.0059 | Contact tip Φ0.8mmE-CU/M6*25 |
| 3 | KCZ0087 | 002,0009 | Torch head 15 with fitting |
| 3.1 | KZH0662 | 002.0078 | Gas diffuser 15AK |
| 3.2 | KFT0808 | 002.0058 | Spring 15AK |
| 4 | KZH0667 | Hexagonal fitting | |
| 5 | KHJ0030-01 | Plastic Body | |
| 6 | KCV0890-01 | MIG handle Blue/Grip | |
| 7 | KHQ0070 | 185.0031 | Trigger |
| 8 | KFT0874 | Screw M3*10 | |
| 9 | KHJ0782 | Joint for 15AK | |
| 10 | KCN0663 | 160.0065 | Coaxial cable 3m |
| 11 | KHJ0028 | Front cable support 12-16-25 MMQ | |
| 12 | KHJ0645-01 | Back box hole/short | |
| 13 | KFT0063 | Screw M4*6 | |
| 14 | KHJ0063 | Adaptor nut | |
| 15 | KTB0059 | 501.2155 | Euro central adaptor body/air cooling |
| 16 | KZT0071 | 501.0082 | Liner nut |
| 17 | KIC0220 | Brass terminal Φ2.0*4.0mm 0.35m | |
| 18 | KIC0100 | 126.0005 | Teflon liner Φ4.0*1.5mm 3m Blue |
| 19 | KIC0500 | 124.0011 | Blue liner Φ0.6-0.8mm 3m |
| 20 | KCG6000 | Spannerfor MIG torches |
● Complete Torch
| Code | Ref. | Description | |
| KCT2098-63 | MIG 15AK torch 3M with spring pins/E | ||
| KCT2099-63 | MIG 15AK torch 4M with spring pins/E | ||
| KCT2095-63 | MIG 15AK torch 5M with spring pins/E | ||
