● Product Parameters

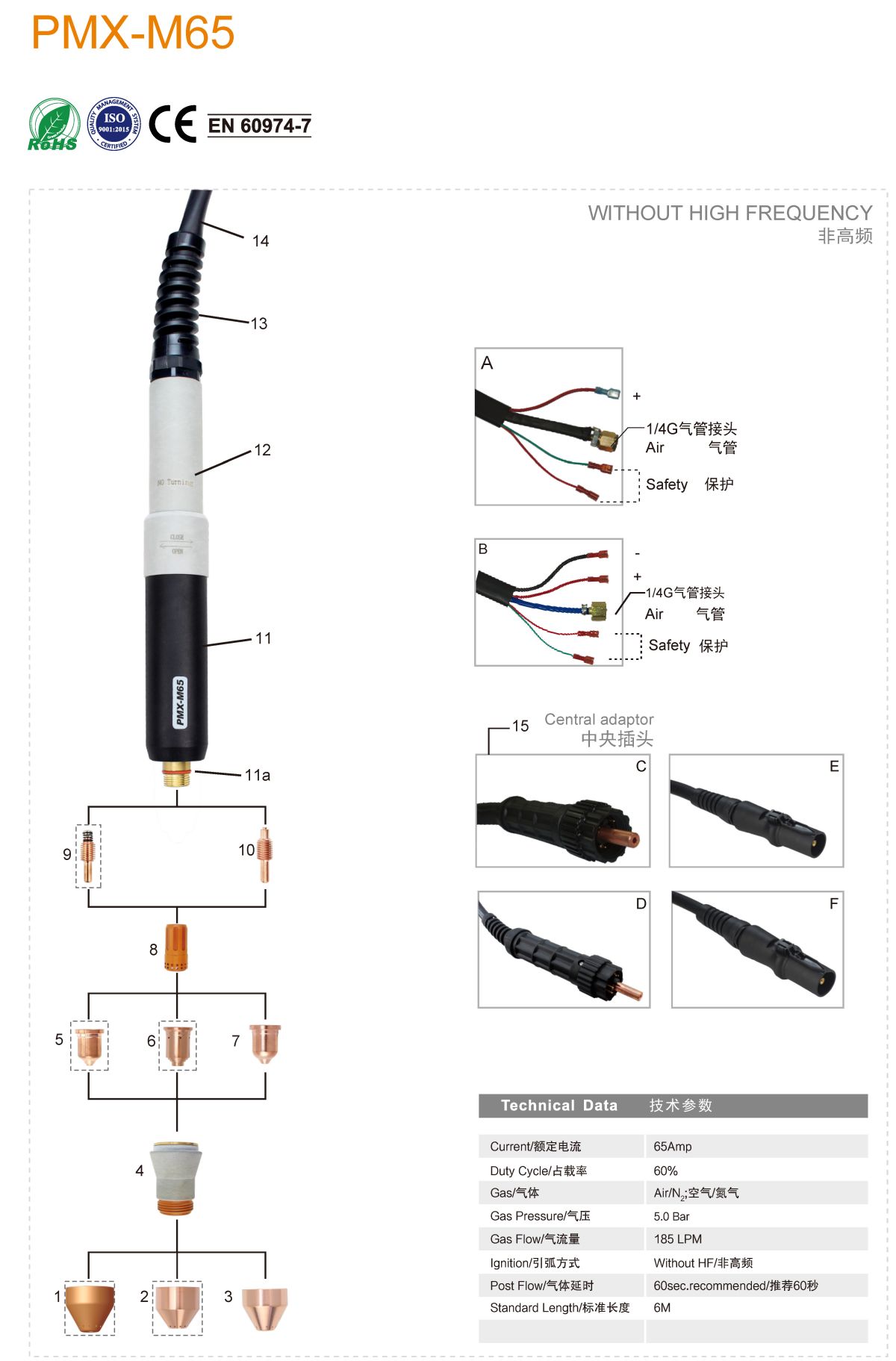

| Position | Code | Ref. | Description |
| 1 | HP220817 | Shield cap | |
| 2 | HP220798 | Shield cap/Gouging | |
| 3 | KSM0624 | Shield cap PMX65/85/machine/45A-85A/PRO | |
| 4 | KVS0693 | Outside nozzle PMX65/85/105/6 holes | |
| 5 | Tip | ||
| 5.1 | HP220941 | Tip/45A | |
| 5.2 | HP220819 | Tip/65A | |
| 6 | HP220797 | Tip/Gouging | |
| 7 | Tip | ||
| 7.1 | KVU0653-09 | Tip Φ0.9mm/PMX65/45A/PRO | |
| 7.2 | KVU0653-11 | Tip Φ1.1mm/PMX65/65A/PRO | |
| 8 | KVF3001 | Swirl ring PMX65/85 45-85A | |
| 9 | HP220842 | Electrode | |
| 10 | KVB0032 | Electrode PMX65/85/105/43.4 | |
| 11 | KVZ0651 | Plasma torch head/PMX65/85/105/M | |
| 11a | KFT0675 | "O"ring Φ17 x 20.6x1.8 /RED SILICONE | |
| 12 | KHJ0110 | Plasma machine handle kit | |
| 13 | Spring support | ||
| 13.1 | KHJ0899 | Spring support/PG21/Plasma/coaxial cable | |
| 13.2 | KHJ0899-02 | Spring support/PG21/Plasma/EPDM | |
| 14 | Cable assembely | ||
| 14.1 | KVN11906061-22 | Cable assembely/PMX-M65/6M/2 wires/separated | |
| 14.2 | KVN11906063-22 | Cable assembely/PMX-M65/6M/2 wires/integrated | |
| 14.3 | KVN11906060-22 | Cable assembely/PMX-M65/6M/2 wires/centre adapter | |
| 14.4 | KVN1190606C-22 | Cable assembely/PMX-M65/6M/coaxial cable/centre adapter | |
| 15 | KZX0078 | Centre adaptor torchside PLASMA 5 PINS |
● Complete Torch
| Code | Ref. | Description | |
| KVT13111 | Plasma cutting auto torch PMX-M65/6M/1/4G/integrated | ||
| KVT13112 | Plasma cutting auto torch PMX-M65/6M/1/4G/separated | ||
| KVT13113 | Plasma cutting auto torch PMX-M65/6M/epdm tube/center adapter | ||
| KVT13114 | Plasma cutting auto torch PMX-M65/6M/coaxial cable/center adapter | ||
| KVT13115 | Plasma cutting auto torch PMX-M65/6M/epdm tube/hypertherm adapter | ||
| KVT13116 | Plasma cutting auto torch PMX-M65/6M/coaxial cable/hypertherm adapter | ||
