● Product Parameters

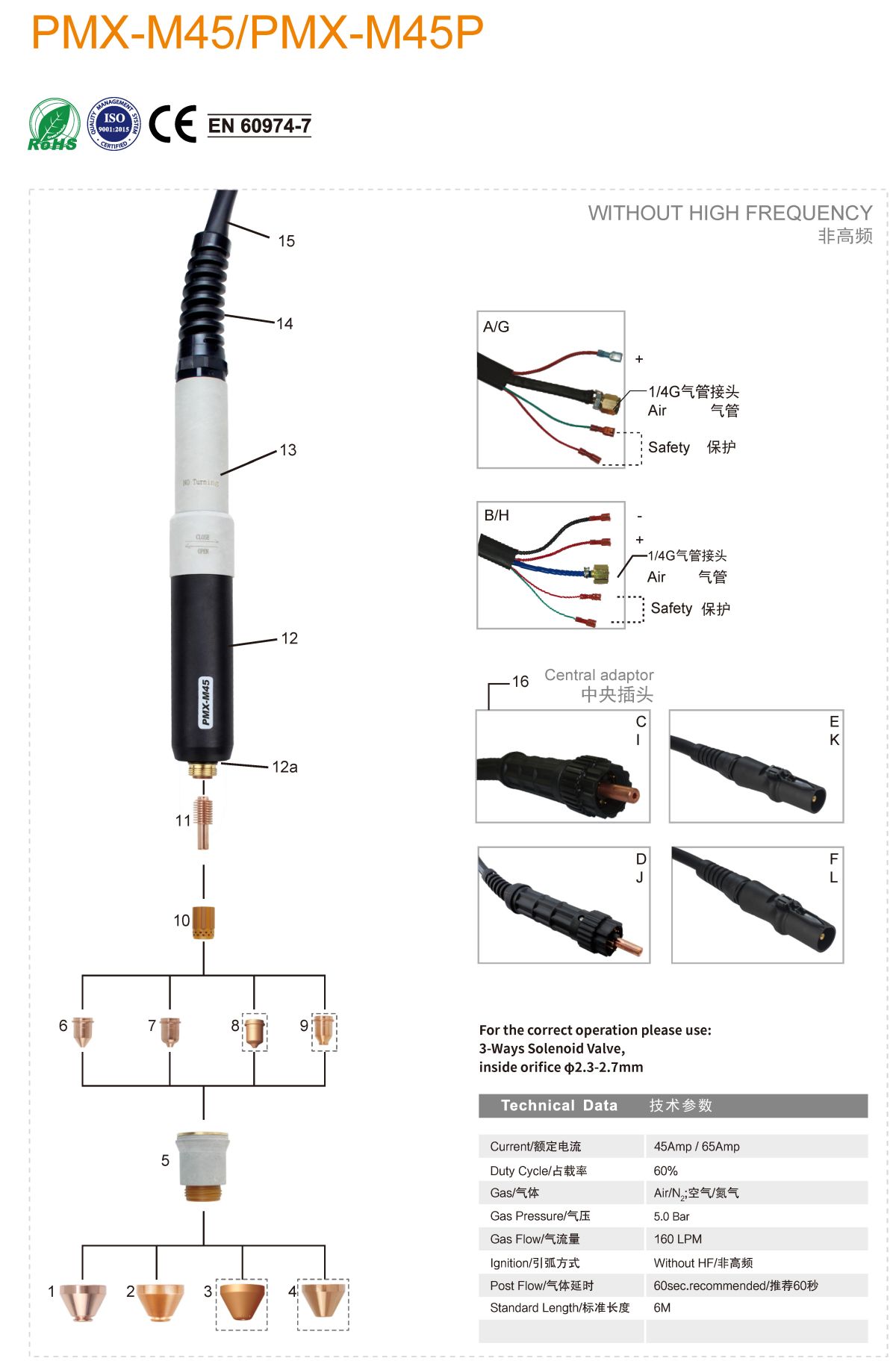

| Position | Code | Ref. | Description |
| 1 | KSM0626 | Shield cap/machine/PMX45/45A/TECMO | |
| 2 | KSM0625 | Shield cap PMX45/machine/PRO | |
| 3 | HP220673 | Shield cap | |
| 4 | HP220675 | Shield cap/Gouging | |
| 5 | KVS0692 | Outside nozzle PMX45 | |
| 6 | Tip | ||
| 6.1 | KVU0657-09 | Tip Φ0.9mm/PMX45/45A | |
| 6.2 | KVU0657-11 | Tip Φ1.1mm/PMX45P/65A | |
| 7 | Tip | ||
| 7.1 | KVU0659-09 | Tip Φ0.9mm/PMX45/45A/PRO | |
| 7.2 | KVU0659-11 | Tip Φ1.1mm/PMX45P/65A/PRO | |
| 8 | HP220671 | Tip | |
| 9 | HP220672 | Tip/Gouging | |
| 10 | KVF3000 | Swirl ring PMX45/45A | |
| 11 | KVB3045 | Electrode PMX45/45A | |
| 12 | KVZ0650 | Plasma cutting torch head/PMX45/M | |
| 12a | KFT8508 | O RING Φ16*1.8/NBR/BLACK | |
| 13 | KHJ0110 | Plasma machine handle kit | |
| 14 | Spring support | ||
| 14.1 | KHJ0899 | Spring support/PG21/Plasma/coaxial cable | |
| 14.2 | KHJ0899-02 | Spring support/PG21/Plasma/EPDM | |
| 15 | Cable assembly | ||
| 15.1 | KVN11804061-22 | Cable assembely/PMX-M45/6M/2 wires/separated | |
| 15.2 | KVN11804063-22 | Cable assembely/PMX-M45/6M/2 wires/integrated | |
| 15.3 | KVN11804060-22 | Cable assembely/PMX-M45/6M/2 wires/centre adapter | |
| 15.4 | KVN11906061-22 | Cable assembely/PMX-M65/6M/2 wires/separated | |
| 15.5 | KVN11906063-22 | Cable assembely/PMX-M65/6M/2 wires/integrated | |
| 15.6 | KVN11906060-22 | Cable assembely/PMX-M65/6M/2 wires/centre adapter | |
| 15.7 | KVN1190606C-22 | Cable assembely/PMX-M65/6M/coaxial cable/centre adapter | |
| 16 | KZX0078 | Centre adaptor torchside PLASMA 5 PINS |
● Complete Torch
| Code | Ref. | Description | |
| KVT13101 | Plasma cutting auto torch PMX-M30/M45/6M/1/4G/integrated | ||
| KVT13102 | Plasma cutting auto torch PMX-M30/M45/6M/1/4G/separated | ||
| KVT13103 | Plasma cutting auto torch PMX-M30/M45/6M/epdm tube/center adapter | ||
| KVT13104 | Plasma cutting auto torch PMX-M45P/6M/coaxial cable/center adapter | ||
| KVT13105 | Plasma cutting auto torch PMX-M45P/6M/epdm tube/hypertherm adapter | ||
| KVT13106 | Plasma cutting auto torch PMX-M30/M45/6M/coaxial cable/hypertherm adapter | ||
| KVT13101-01 | Plasma cutting auto torch PMX-M45P/6M/1/4G/integrated | ||
| KVT13102-01 | Plasma cutting auto torch PMX-M45P/6M/1/4G/separated | ||
| KVT13103-01 | Plasma cutting auto torch PMX-M45P/6M/epdm tube/center adapter | ||
| KVT13104-01 | Plasma cutting auto torch PMX-M45P/6M/coaxial cable/center adapter | ||
| KVT13105-01 | Plasma cutting auto torch PMX-M45P/6M/epdm tube/hypertherm adapter | ||
| KVT13106-01 | Plasma cutting auto torch PMX-M45P/6M/coaxial cable/hypertherm adapter | ||
