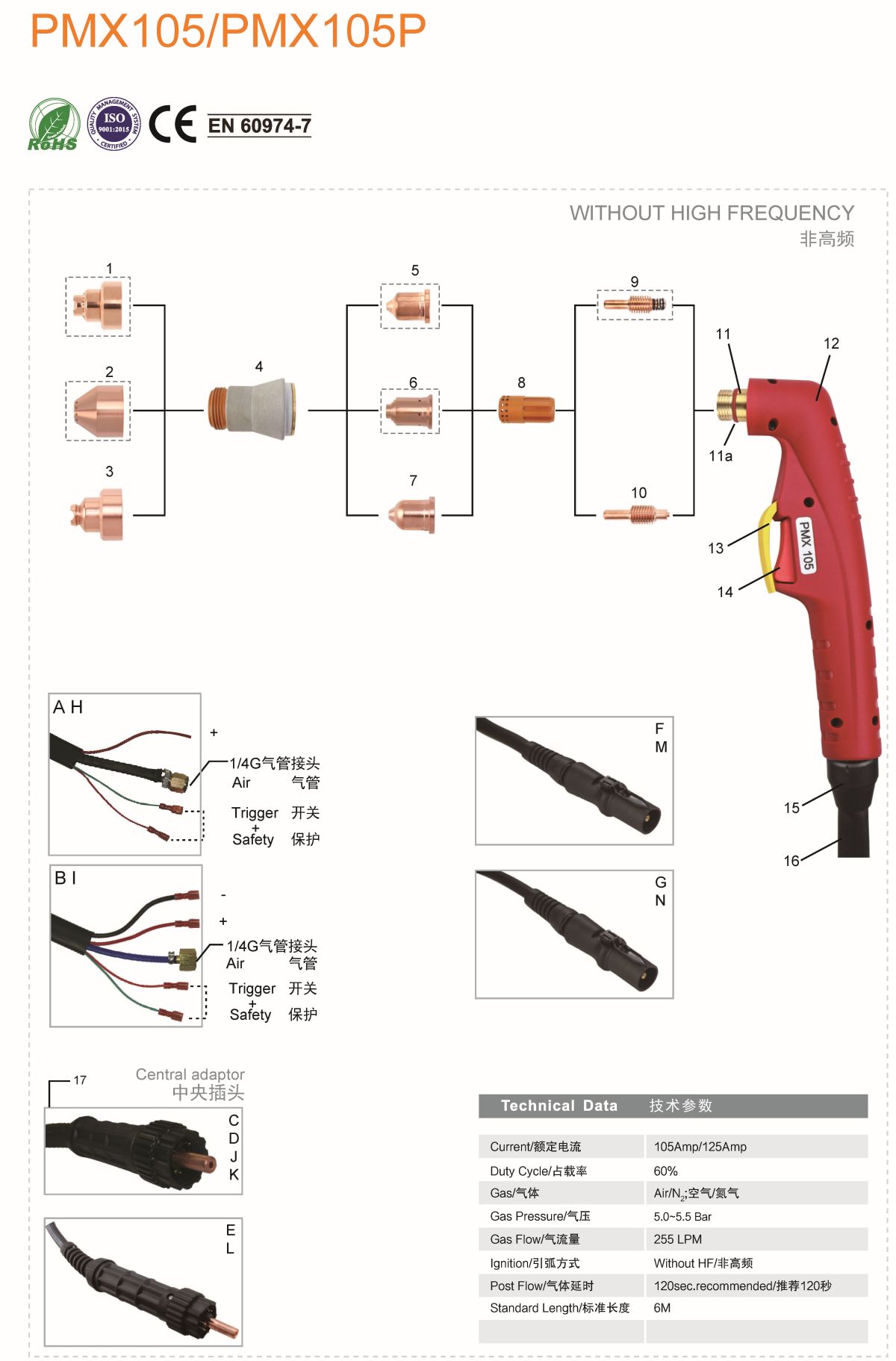

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | Shield cap | ||
| 1.1 | HP220818 | Shield cap/45A-85A | |
| 1.2 | HP220992 | Shield cap/105A | |
| 2 | HP220798 | Shield cap/Gouging | |
| 3 | Tip | ||
| 3.1 | KSM0623 | Shield cap PMX105/105P/hand/45A-85A/PRO | |
| 3.2 | KSM0621 | Shield cap PMX105/hand/105-125A/PRO | |
| 4 | Outside nozzle | ||
| 4.1 | KVS0693 | Outside nozzle PMX65/85/105/6 holes | |
| 4.2 | KVS0694 | Outside nozzle PMX65/85/105/10 holes | |
| 5 | Tip | ||
| 5.1 | HP220941 | Tip/45A | |
| 5.2 | HP220819 | Tip/65A | |
| 5.3 | HP220816 | Tip/85A | |
| 5.4 | HP220990 | Tip/105A | |
| 6 | Tip | ||
| 6.1 | HP220797 | Tip/45~85A/Gouging | |
| 6.2 | HP220991 | Tip/105A/Gouging | |
| 7 | Tip | ||
| 7.1 | KVU0653-09 | Tip Φ0.9mm/PM×105/45A/PRO | |
| 7.2 | KVU0653-11 | Tip Φ1.1mm/PM×105/65A/PRO | |
| 7.3 | KVU0653-13 | Tip Φ1.3mm/PM×105/85A/PRO | |
| 7.4 | KVU0653-15 | Tip Φ1.5mm/PM×105/105A/PRO | |
| 7.5 | KVU0653-18 | Tip Φ1.8mm/PM×105/125A/PRO | |
| 8 | KVF3003 | Swirl ring PM×105/105A | |
| 9 | HP220842 | Electrode | |
| 10 | KVB0032 | Electrode PM×65/85/105/43.4 | |
| 11 | KVZ0694 | Plasma cutting torch head/PMX65/85/105 | |
| 11a | KFT0675 | O RING Φ17 × 20.6x1.8 /RED SILICONE | |
| 12 | KGV0035-01 | Plasma handle manuale/A seires/red | |
| 13 | KHJ0722 | Protection part/plasma/yellow | |
| 14 | KHQ0070 | Trigger red | |
| 15 | KHJ0893 | Tig joint/small/new type | |
| 16 | Cable assembely | ||
| 16.1 | KVN02010061-300 | Cable assembely/PM×85/105/6M/2 WIRES/separated | |
| 16.2 | KVN02010063-300 | Cable assembely/PM×85/105/6M/2 wires/integrated | |
| 16.3 | KVN02010060-300 | Cable assembely/PM×85/105/6M/2 wires/centre adapter | |
| 16.4 | KVN02010066-300 | Cable assembely/PM×85/105/6M/4 wires/centre adapter | |
| 16.5 | KVN0201006C-300 | Cable assembely/PM×85/105/6M/coaxial cable/centre adapter | |
| 17 | KZX0078 | Centre adaptor torchside PLASMA 5 PINS |
● Complete Torch
| Code | Ref. | Description | |
| KVT03241 | Plasma cutting torch PM×105/6M/ 1/4G /integrated/2 wires | ||
| KVT03242 | Plasma cutting torch PM×105/6M/ 1/4G /separate/2 wires | ||
| KVT03243 | Plasma cutting torch PM×105/6M/central adaptor/2 wires | ||
| KVT032430 | Plasma cutting torch PM×105/6M/central adaptor/4 wires | ||
| KVT03244 | Plasma cutting torch PM×105/6M/central adapto/coaxial cabler | ||
| KVT03245 | Plasma cutting torch PM×105/6M/epdm tube/hypertherm adapter | ||
| KVT03246 | Plasma cutting torch PM×105/6M/coaxial cable/hypertherm adapter | ||
| KVT03241-01 | Plasma cutting torch PM×105P/6M/ 1/4G /integrated/2 wires | ||
| KVT03242-01 | Plasma cutting torch PM×105P/6M/ 1/4G /separate/2 wires | ||
| KVT03243-01 | Plasma cutting torch PM×105P/6M/central adaptor/2 wires | ||
| KVT032430-01 | Plasma cutting torch PM×105P/6M/central adaptor/4 wires | ||
| KVT03244-01 | Plasma cutting torch PM×105P/6M/central adapto/coaxial cabler | ||
| KVT03245-01 | Plasma cutting torch PM×105P/6M/epdm tube/hypertherm adapter | ||
| KVT03246-01 | Plasma cutting torch PM×105P/6M/coaxial cable/hypertherm adapter | ||
