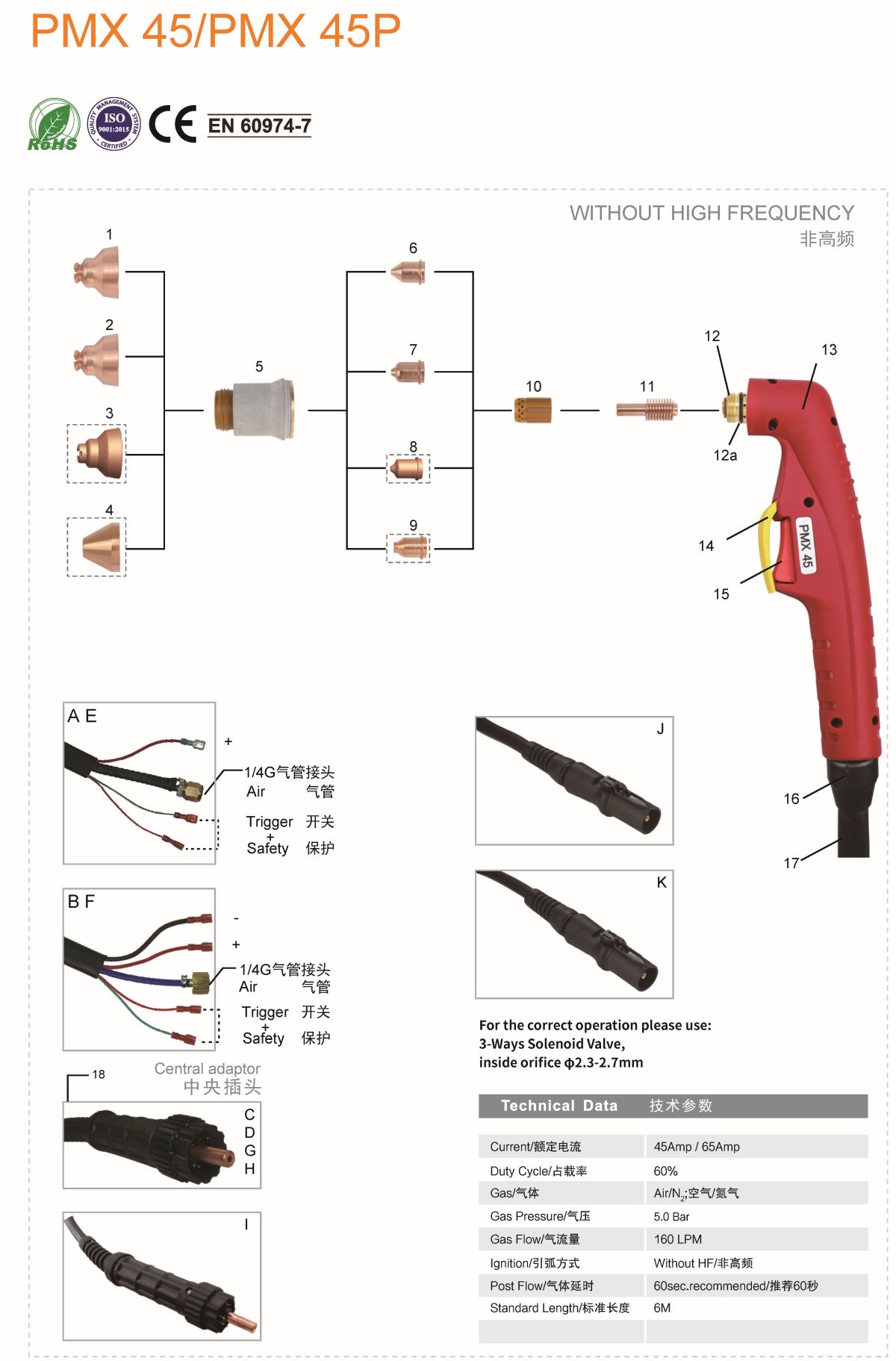

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KSM0674 | Shield cap PMX45/Hand/45A | |
| 2 | KSM0629 | Shield cap/Hand/PMX45/Pro | |
| 3 | HP220674 | Shield cap | |
| 4 | HP220675 | Shield cap/Gouging | |
| 5 | KVS0692 | Outside nozzle PMX45 | |
| 6 | Tip | ||
| 6.1 | KVU0657-09 | Tip Φ0.9mm/PMX45/45A | |
| 6.2 | KVU0657-11 | Tip Φ1.1mm/PMX45P/65A | |
| 7 | Tip | ||
| 7.1 | KVU0659-09 | Tip Φ0.9mm/PMX45/45A/PRO | |
| 7.2 | KVU0659-11 | Tip Φ1.1mm/PMX45P/65A/PRO | |
| 8 | HP220671 | Tip | |
| 9 | HP220672 | Tip/Gouging | |
| 10 | KVF3000 | Swirl ring PMX45/45A | |
| 11 | KVB3045 | Electrode PMX45/45A | |
| 12 | KVZ0693-01 | Plasma torch head/PMX45/HexagonCH20*5 | |
| 12a | KFT8508 | O RING Φ16*1.8/NBR/BLACK | |
| 13 | KGV0038-01 | Plasma handLe manuale/PT20-60/PX torch head | |
| 14 | KHJ0722 | Protection part/plasma/yellow | |
| 15 | KHQ0070 | Trigger red | |
| 16 | KHJ0898 | Plasma Joint/PT20-60 | |
| 17 | Cable assembly | ||
| 17.1 | KVN01804061-22 | Cable assembly/PMX45/6M/2 wires/integrated | |
| 17.2 | KVN01804063-22 | Cable assembly/PMX45/6M/2 wires/separate | |
| 17.3 | KVN01804060-22 | Cable assembly/PMX45/6M/2 wires/centre adaptor | |
| 17.4 | KVN01804066-22 | Cable assembly/PMX45/6M/4 wires/centre adaptor | |
| 17.5 | KVN01806061-22 | Cable assembly/PMX45/6M/2 wires/integrated | |
| 17.6 | KVN01806063-22 | Cable assembly/PMX45/6M/2 wires/separate | |
| 17.7 | KVN01806060-22 | Cable assembly/PMX45/6M/2 wires/centre adaptor | |
| 17.8 | KVN01806066-22 | Cable assembly/PMX45/6M/4 wires/centre adaptor | |
| 17.9 | KVN0180606C-300 | Cable assembly/PMX45/6M/Coaxial cable/centre adaptor | |
| 18 | KZX0078 | Centre adaptor torchside PLASMA 5 PINS |
● Complete Torch
| Code | Ref. | Description | |
| KVT03101 | Plasma cutting torch PM×45/6M/ 1/4G /integrated/2 wires | ||
| KVT03102 | Plasma cutting torch PM×45/6M/ 1/4G /separate/2 wires | ||
| KVT03103 | Plasma cutting torch PM×45/6M/central adaptor/2 wires | ||
| KVT031030 | Plasma cutting torch PM×45/6M/central adaptor/4 wires | ||
| KVT03101-01 | Plasma cutting torch PM×45P/6M/ 1/4G /integrated/2 wires | ||
| KVT03102-01 | Plasma cutting torch PM×45P/6M/ 1/4G /separate/2 wires | ||
| KVT03103-01 | Plasma cutting torch PM×45P/6M/central adaptor/2 wires | ||
| KVT031030-01 | Plasma cutting torch PM×45P/6M/central adaptor/4 wires | ||
| KVT03104 | Plasma cutting torch PM×45/6M/central adapto/coaxial cabler | ||
| KVT03104-01 | Plasma cutting torch PM×45P/6M/central adapto/coaxial cabler | ||
| KVT03105 | Plasma cutting torch PM×45/6M/epdm tube/hypertherm adapter | ||
| KVT03105-01 | Plasma cutting torch PM×45P/6M/epdm tube/hypertherm adapter | ||
| KVT03106 | Plasma cutting torch PM×45/6M/coaxial cable/hypertherm adapter | ||
| KVT03106-01 | Plasma cutting torch PM×45P/6M/coaxial cable/hypertherm adapter | ||
