● Product Parameters

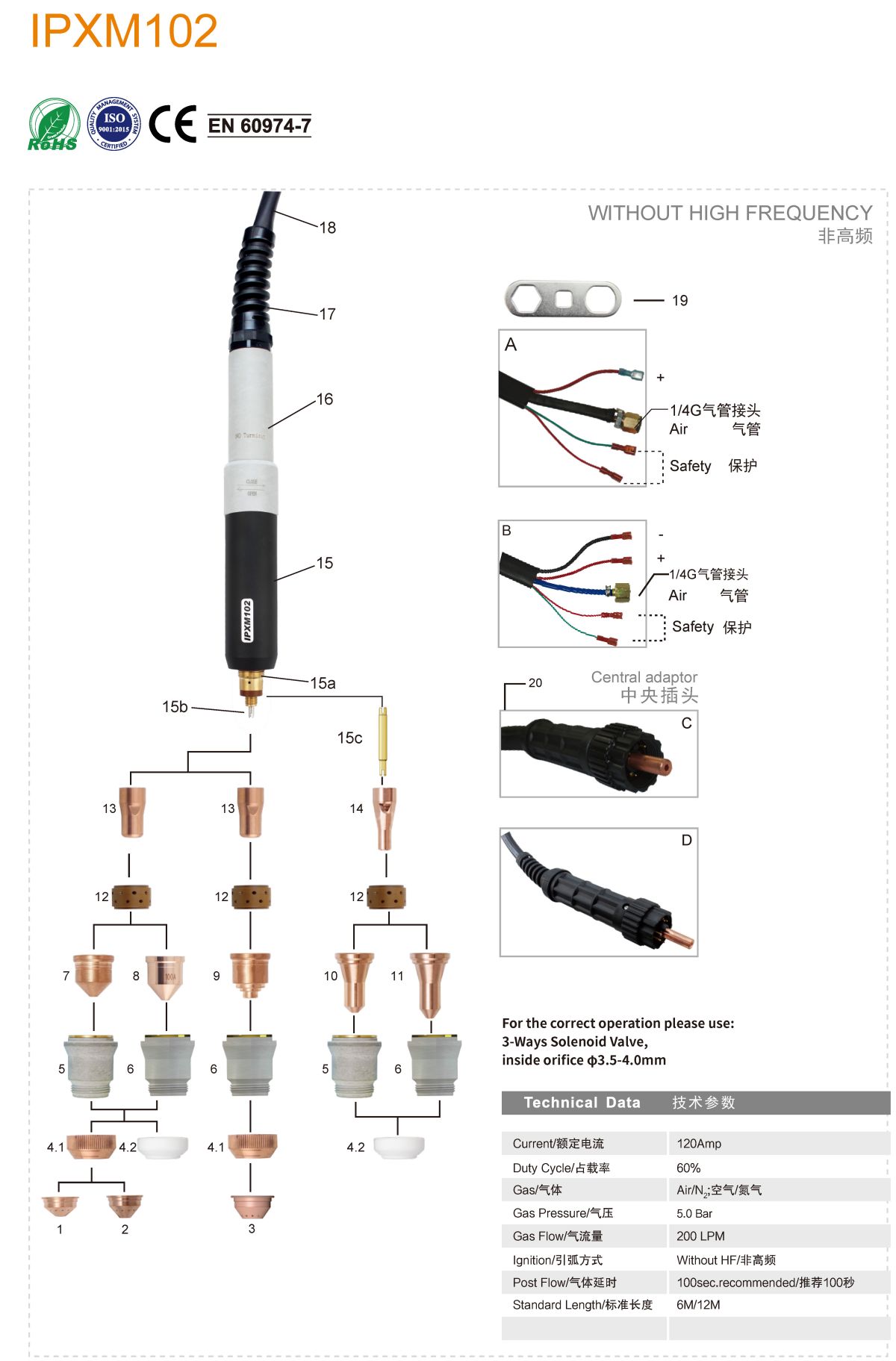

| Position | Code | Ref. | Description |
| 1 | KSM0653 | Shield cap/IPXM102/40-80A/machine | |
| 2 | KSM0654 | Shield cap/IPXM102/100-120A/machine | |
| 3 | KSM0766 | Shield cap/IPX102/Gouging | |
| 4 | Shield cap | ||
| 4.1 | KSM0655 | Shield cap/IPX102 | |
| 4.2 | KSM0655-01 | Shield cap/IPX102/Alumina cup | |
| 5 | KVS0634-05 | Outside nozzle IPX102/6 holes/40-80A/gray glass fiber | |
| 6 | KVS0631-05 | Outside nozzle IPX102/8 holes/100-120A/gray glass fiber | |
| 7 | TIP | ||
| 7.1 | KVU0789-10 | TIP Φ1.0mm/40A/IPX102 | |
| 7.2 | KVU0789-11 | TIP Φ1.1mm/50A/IPX102 | |
| 7.3 | KVU0789-12 | TIP Φ1.2mm/60A/IPX102 | |
| 7.4 | KVU0789-14 | TIP Φ1.4mm/80A/IPX102 | |
| 8 | TIP | ||
| 8.1 | KVU0791-16 | TIP Φ1.6mm/100A/IPX102 | |
| 8.2 | KVU0791-18 | TIP Φ1.8mm/120A/IPX102 | |
| 9 | KVU0757 | TIP 40-120A/IPX102/Gouging | |
| 10 | TIP | ||
| 10.1 | KVU0755-10 | Extended tip Φ1.0mm/40A/IPX102 | |
| 10.2 | KVU0755-11 | Extended tip Φ1.1mm/50A/IPX102 | |
| 10.3 | KVU0755-12 | Extended tip Φ1.2mm/60A/IPX102 | |
| 10.4 | KVU0755-14 | Extended tip Φ1.4mm/80A/IPX102 | |
| 11 | KVU0759-16 | Extended tip Φ1.6mm/100A/IPX102 | |
| 12 | KVF0051 | Diffuser IPX102 | |
| 13 | KVB0631 | Electrode IPX102 | |
| 14 | KVB0637 | Extended electrode IPX102 | |
| 15 | KVZ0620 | IPXM102 Torch head | |
| 15a | KFT8557 | "O"ring Φ19.6×16mm/IPX102/RED SIL | |
| 15b | KZN0707 | Air tube/IPX102 | |
| 15c | KZN0644 | Long air tube/IPX102 | |
| 16 | KHJ0110 | Plasma machine handle kit | |
| 17 | Spring support | ||
| 17.1 | KHJ0899 | Spring support/PG21/Plasma/coaxial cable | |
| 17.2 | KHJ0899-02 | Spring support/PG21/Plasma/EPDM | |
| 18 | Cable assembly | ||
| 18.1 | KVN11210063-22 | Cable assembly/IPXM102/6M/ 1/4G /2 wires/integrated | |
| 18.2 | KVN11210123-22 | Cable assembly/IPXM102/12M/ 1/4G /2 wires/integrated | |
| 18.3 | KVN11210061-22 | Cable assembly/IPXM102/6M/ 1/4G /2 wires/separation | |
| 18.4 | KVN11210121-22 | Cable assembly/IPXM102/12M/ 1/4G /2 wires/separation | |
| 18.5 | KVN11210060-22 | Cable assembly/IPXM102/6M/2 wires/centre adaptor | |
| 18.6 | KVN11210120-22 | Cable assembly/IPXM102/12M/2 wires/centre adaptor | |
| 18.7 | KVN1121106C-22 | Cable assembly/IPXM102/6M/central adaptor/coaxial cable | |
| 18.8 | KVN1121112C-22 | Cable assembly/IPXM102/12M/central adaptor/coaxial cable | |
| 19 | KCG6009 | Spanner For P80 | |
| 20 | KZX0078 | Central adaptor torchside Plasma 5 pins |
● Complete Torch
| Code | Ref. | Description | |
| KVT13091 | Plasma machine torch IPXM102/6M/ 1/4G /integrated/2 wires | ||
| KVT14091 | Plasma machine torch IPXM102/12M/ 1/4G /integrated/2 wires | ||
| KVT13092 | Plasma machine torch IPXM102/6M/ 1/4G /separation/2 wires | ||
| KVT14092 | Plasma machine torch IPXM102/12M/ 1/4G /separation/2 wires | ||
| KVT13093 | Plasma machine torch IPXM102/6M/central adaptor/2 wires | ||
| KVT14093 | Plasma machine torch IPXM102/12M/central adaptor/2 wires | ||
| KVT13094 | Plasma machine torch IPXM102/6M/central adaptor/coaxial cable | ||
| KVT14094 | Plasma machine torch IPXM102/12M/central adaptor/coaxial cable | ||
