● Product Parameters

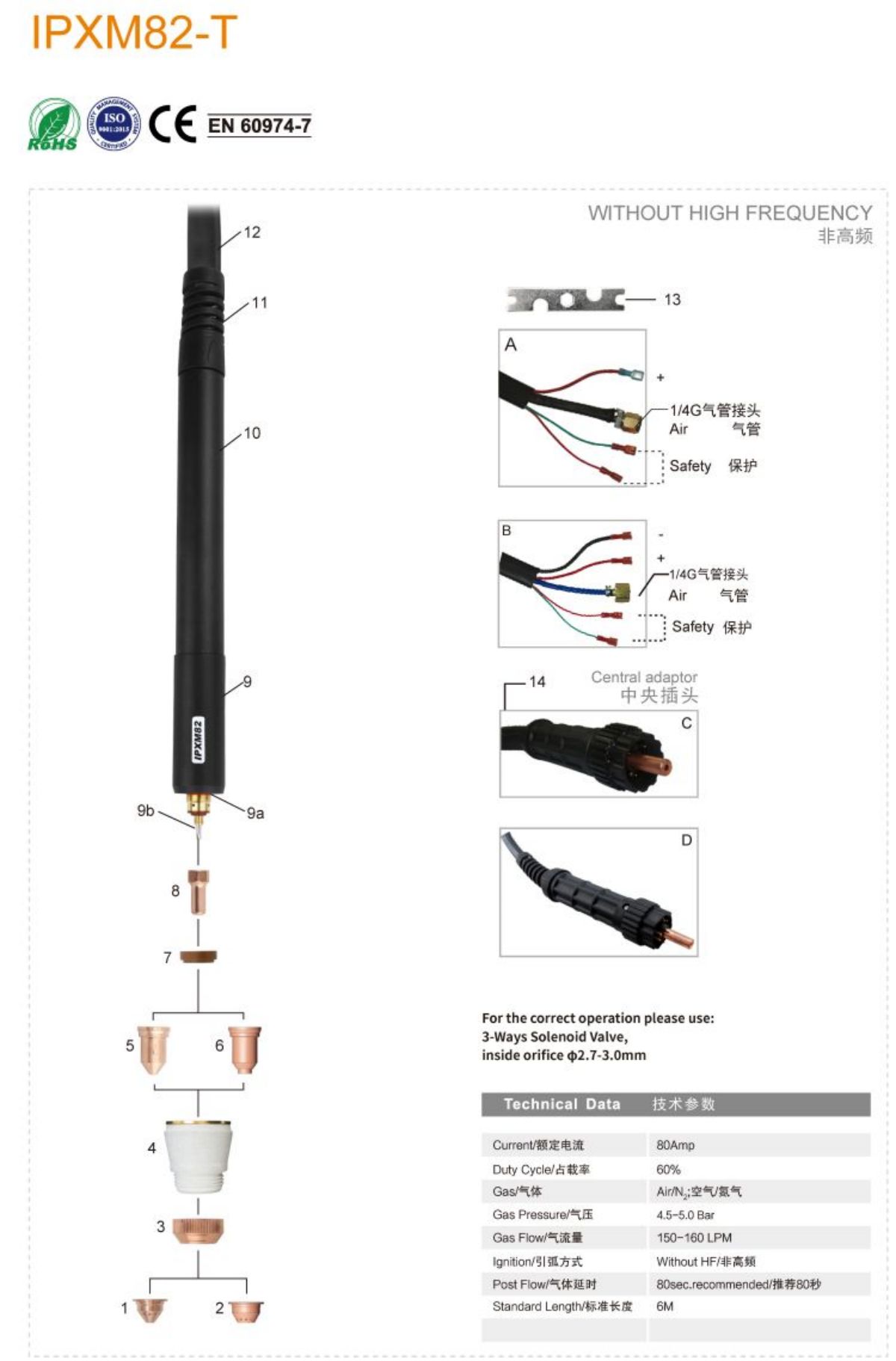

| Position | Code | Ref. | Description |
| 1 | KSM0652 | Shield cap/IPXM62/IPXM82/machine | |
| 2 | KSM0659 | Shield cap/IPX82/Gouging | |
| 3 | KSM0658 | Shield cap/IPX62/IPX82 | |
| 4 | KVS0630-05 | Outside nozzle IPX82/gray glass fiber | |
| 5 | Tip | ||
| 5.1 | KVU0790-09 | Tip Φ0.9mm/40A/IPX82 | |
| 5.2 | KVU0790-10 | Tip Φ1.0mm/50A/IPX82 | |
| 5.3 | KVU0790-11 | Tip Φ1.1mm/60A/IPX82 | |
| 5.4 | KVU0790-12 | Tip Φ1.2mm/70A/IPX82 | |
| 5.5 | KVU0790-13 | Tip Φ1.3mm/80A/IPX82 | |
| 6 | KVU0793 | Tip 30A-80A/IPX82/GOUGING | |
| 7 | KVF0050 | Diffuser IPX82 | |
| 8 | KVB1669 | 52558 | Electrode IPT80/IPX82 |
| 9 | KVZ0721 | Plasma machine torch head IPTM80-T/IPXM82-T | |
| 9a | KFT0709 | 51620.6 | Oring Φ15XΦ18 IPT80 RED SIL |
| 9b | KZN0773 | 9800.42 | Air tube/IPT80/IPX82 |
| 10 | KGV0706 | Fiberglass position tube/PTM torch | |
| 11 | KHJ0931 | Cable suppor spring/big/TIG,PLASMA/black | |
| 12 | Cable assembly | ||
| 12.1 | KVN01210063-300 | Cable assembly/IPX82/6M/2 wires/integrated | |
| 12.2 | KVN01210061-300 | Cable assembly/IPX82/6M/2 wires/separatae | |
| 12.3 | KVN01210060-300 | Cable assembly/IPX82/6M/2 wires/centre adaptor | |
| 12.4 | KVN01210066-300 | Cable assembly/IPX82/6M/4 wires/centre adaptor/ | |
| 13 | KCG6006 | Spanner for PLASMA | |
| 14 | KZX0078 | Centre adaptor torchside PLASMA 5 PINS |
● Complete Torch
| Code | Ref. | Description | |
| KVT33081 | Plasma cutting torch IPXM82-T/6M/1/4G/integrated | ||
| KVT33082 | Plasma cutting torch IPXM82-T/6M/1/4G/separated | ||
| KVT33083 | Plasma cutting torch IPXM82-T/6M/center adaptor | ||
| KVT33084 | Plasma cutting torch IPXM82-T/6M/coaxial cable/center adapter | ||
