● Product Parameters

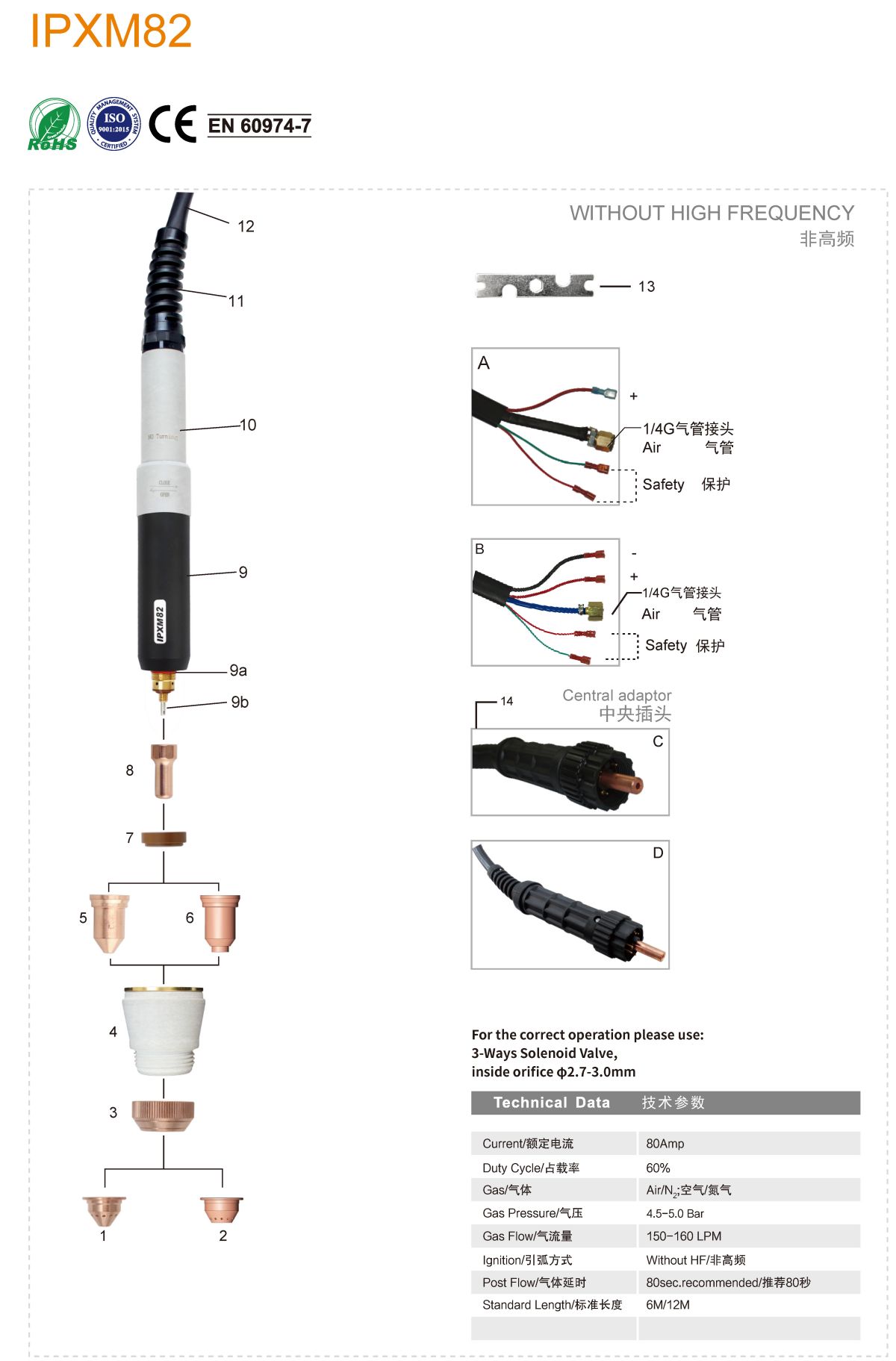

| Position | Code | Ref. | Description |
| 1 | KSM0652 | Shield cap/IPX82/machine | |
| 2 | KSM0659 | Shield cap/IPX82/Gouging | |
| 3 | KSM0658 | Shield cap/IPX62/IPX82 | |
| 4 | KVS0682-05 | Outside nozzle IPX82/gray glass fiber | |
| 5 | Tip | ||
| 5.1 | KVU0790-09 | Tip Φ0.9mm/40A/IPX82 | |
| 5.2 | KVU0790-10 | Tip Φ1.0mm/50A/IPX82 | |
| 5.3 | KVU0790-11 | Tip Φ1.1mm/60A/IPX82 | |
| 5.4 | KVU0790-12 | Tip Φ1.2mm/70A/IPX82 | |
| 5.5 | KVU0790-13 | Tip Φ1.3mm/80A/IPX82 | |
| 6 | KVU0793 | Tip 30A-80A/IPX82/GOUGING | |
| 7 | KVF0050 | Diffuser IPX82 | |
| 8 | KVB1669 | 52558 | Electrode IPT80/IPX82 |
| 9 | KVZ0621 | Torch head IPTM80/IPXM82 | |
| 9a | KFT0709 | 69800.42 | "O"ring Φ15XΦ18 IPT80 RED SIL |
| 9b | KZN0773 | 51620.6 | Air tube/IPT80/IPX82 |
| 10 | KHJ0110 | Plasma machine handle kit | |
| 11 | Spring support | ||
| 11.1 | KHJ0899 | Spring support/PG21/Plasma/coaxial cable | |
| 11.2 | KHJ0899-02 | Spring support/PG21/Plasma/EPDM | |
| 12 | Cable assembly | ||
| 12.1 | KVN11210063-22 | Cable assembly/IPXM82/6M/ 1/4G /2 wires/integrated | |
| 12.2 | KVN11210123-22 | Cable assembly/IPXM82/12M/ 1/4G /2 wires/integrated | |
| 12.3 | KVN11210061-22 | Cable assembly/IPXM82/6M/ 1/4G /2 wires/separation | |
| 12.4 | KVN11210121-22 | Cable assembly/IPXM82/12M/ 1/4G /2 wires/separation | |
| 12.5 | KVN11210060-22 | Cable assembly/IPXM82/6M/2 wires/centre adaptor | |
| 12.6 | KVN11210120-22 | Cable assembly/IPXM82/12M/2 wires/centre adaptor | |
| 12.7 | KVN1121106C-22 | Cable assembly/IPXM82/6M/central adaptor/coaxial cable | |
| 12.8 | KVN1121112C-22 | Cable assembly/IPXM82/12M/central adaptor/coaxial cable | |
| 13 | KCG6006 | Spanner For Plasma | |
| 14 | KZX0078 | Central adaptor torchside Plasma 5 pins |
● Complete Torch
| Code | Ref. | Description | |
| KVT13081 | Plasma machine torch IPXM82/6M/ 1/4G /integrated/2 wires | ||
| KVT14081 | Plasma machine torch IPXM82/12M/ 1/4G /integrated/2 wires | ||
| KVT13082 | Plasma machine torch IPXM82/6M/ 1/4G /separation/2 wires | ||
| KVT14082 | Plasma machine torch IPXM82/12M/ 1/4G /separation/2 wires | ||
| KVT13083 | Plasma machine torch IPXM82/6M/central adaptor/2 wires | ||
| KVT14083 | Plasma machine torch IPXM82/12M/central adaptor/2 wires | ||
| KVT13084 | Plasma machine torch IPXM82/6M/central adaptor/coaxial cable | ||
| KVT14084 | Plasma machine torch IPXM82/12M/central adaptor/coaxial cable | ||
