● Product Parameters

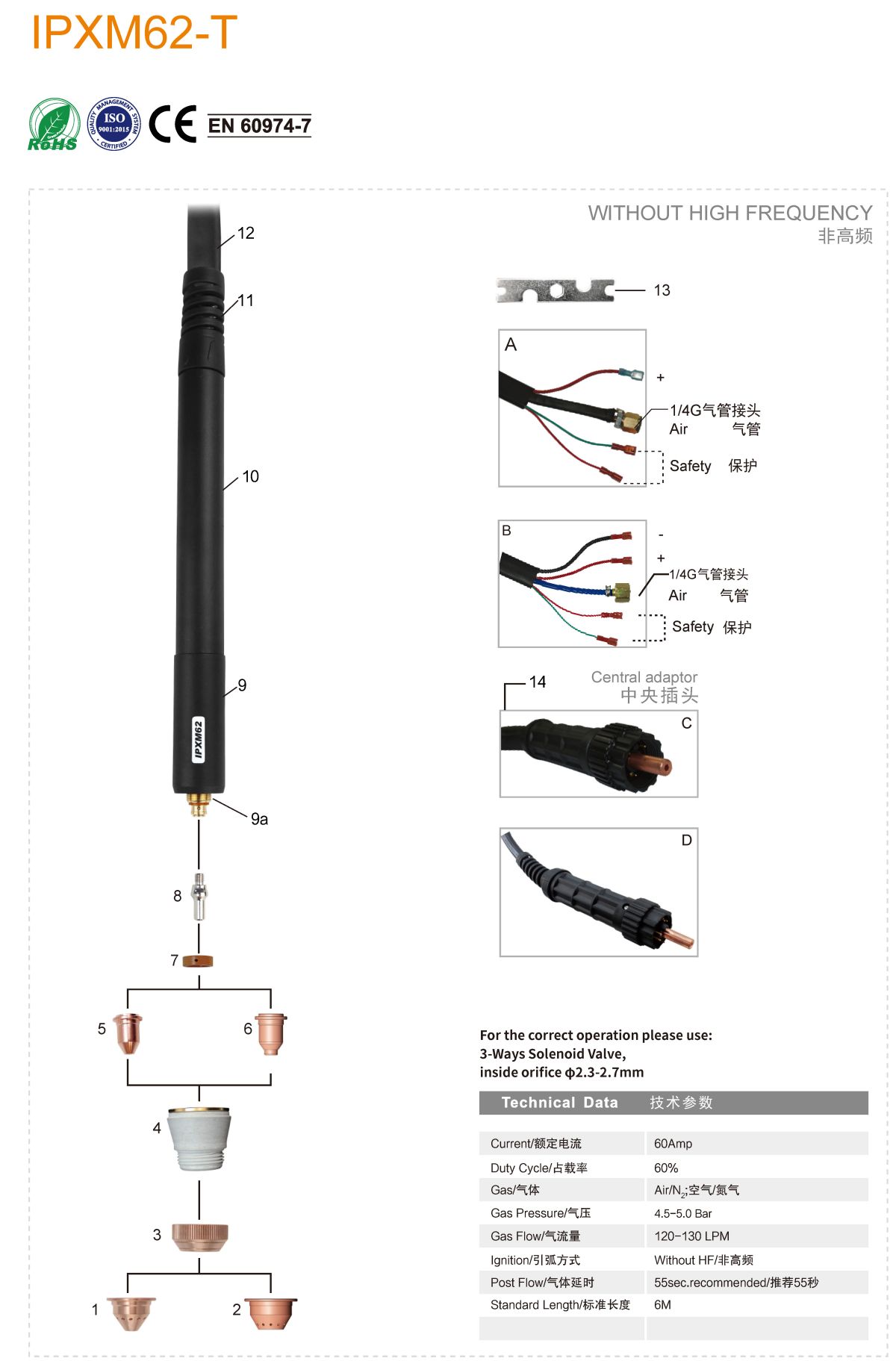

| Position | Code | Ref. | Description |
| 1 | KSM0652 | Shield cap/IPXM62/IPXM82/machine | |
| 2 | KSM0675 | Shield cap/IPX62/Gouging | |
| 3 | KSM0658 | Shield cap/IPX62/IPX82 | |
| 4 | KVS0632-05 | Outside nozzle IPX62/gray glass fiber | |
| 5 | Tip | ||
| 5.1 | KVU0792-08 | Tip Φ0.8mm/30A/IPX62 | |
| 5.2 | KVU0792-09 | Tip Φ0.9mm/40A/IPX62 | |
| 5.3 | KVU0792-10 | Tip Φ1.0mm/50A/IPX62 | |
| 5.4 | KVU0792-11 | Tip Φ1.1mm/60A/IPX62 | |
| 6 | KVU0756 | Tip 30A-60A/IPX62/Gouging | |
| 7 | KVF0052 | Diffuser IPX62 | |
| 8 | KVB1048 | 52582 | Electrode IPT20C-60/back striking |
| 9 | KVZ0720 | Plasma machine torch head IPTM60-T/IPXM62-T | |
| 9a | KFT0709 | "Oring" Φ15XΦ18 IPX62 RED SIL | |
| 10 | KGV0706 | Fiberglass position tube/PTM torch | |
| 11 | KHJ0931 | Cable suppor spring/big/TIG,PLASMA/black/minoo | |
| 12 | Cable assembely | ||
| 12.1 | KVN01106063-300 | Cable assembely/IPT60/IPX62/6M/2 wires/integrated | |
| 12.2 | KVN01106061-300 | Cable assembely/IPT60/IPX62/6M/2 wires/separated | |
| 12.3 | KVN01106060-300 | Cable assembely/IPT60/IPX62/6M/2 wires/centre adapter | |
| 12.4 | KVN1110606C-300 | Cable assembely/IPTM60/IPXM62/6M/coaxial cable/centre adapter | |
| 13 | KCG6006 | Spanner for Plasma | |
| 14 | KZX0078 | Central adaptor torch side Plasma 5 pins |
● Complete Torch
| Code | Ref. | Description | |
| KVT33071 | Plasma cutting torch IPXM62-T/6M/1/4G/integrated | ||
| KVT33072 | Plasma cutting torch IPXM62-T/6M/1/4G/separated | ||
| KVT33073 | Plasma cutting torch IPXM62-T/6M/center adaptor | ||
| KVT33074 | Plasma cutting torch IPXM62-T/6M/coaxial cable/center adapter | ||
