● Product Parameters

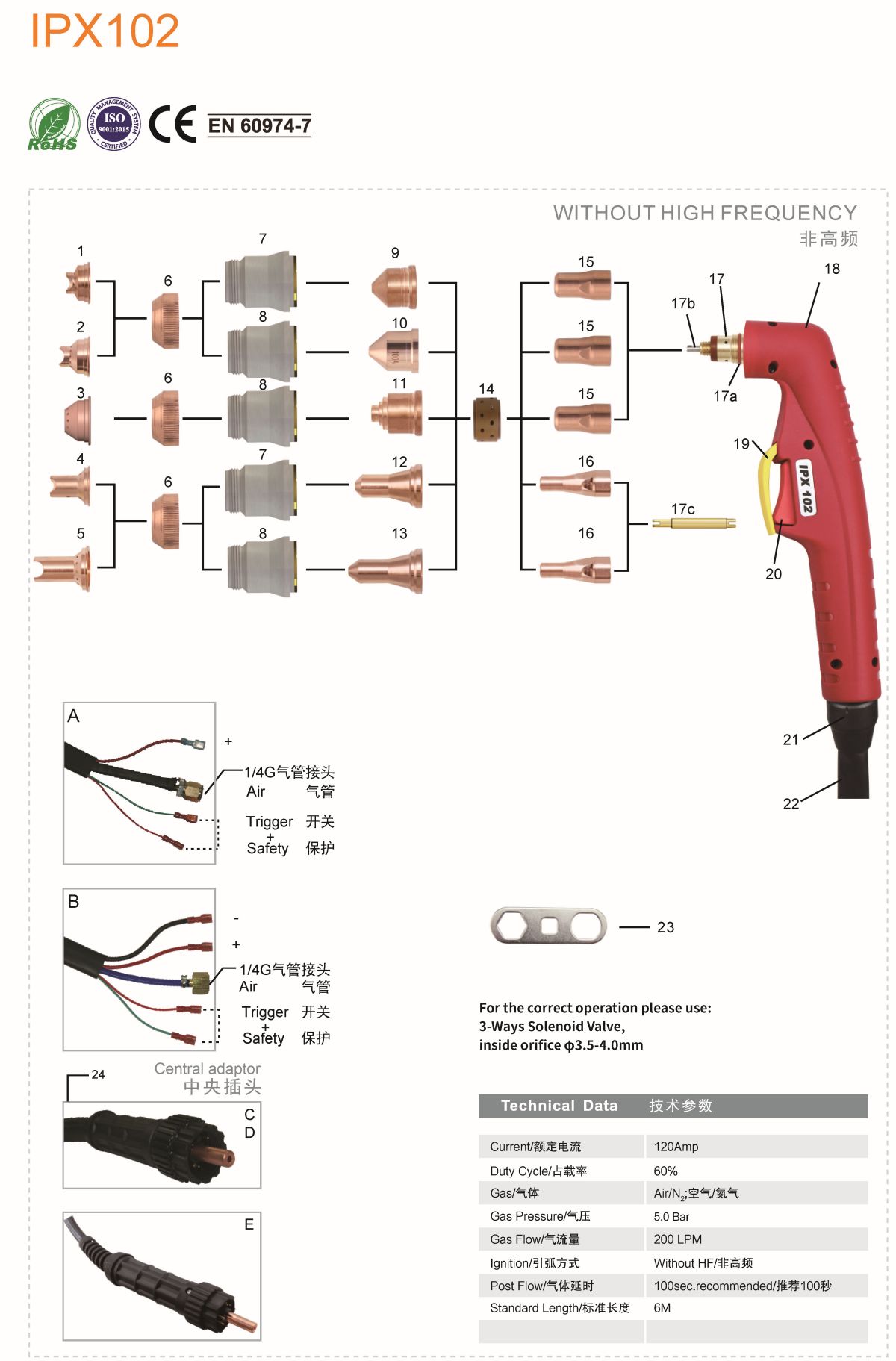

| Position | Code | Ref. | Description |
| 1 | KSM6664 | Shield cap/40-80A/IPX102/Hand | |
| 2 | KSM6665 | Shield cap/100-120A/IPX102/Hand | |
| 3 | KSM0766 | Shield cap/IPX102/Gouging | |
| 4 | KSM0767 | Extended shield cap/40-80A/IPX102 | |
| 5 | KSM0768 | Extended shield cap/100-120A/IPX102 | |
| 6 | KSM0655 | Shield cap/IPX102 | |
| 7 | KVS0634-05 | Outside nozzle IPX102/6 holes/40-80A/gray glass fiber | |
| 8 | KVS0631-05 | Outside nozzle IPX102/8 holes/100-120A/gray glass fiber | |
| 9 | Tip | ||
| 9.1 | KVU0789-10 | TIP Φ1.0mm/40A/IPX102 | |
| 9.2 | KVU0789-11 | TIP Φ1.1mm/50A/IPX102 | |
| 9.3 | KVU0789-12 | TIP Φ1.2mm/60A/IPX102 | |
| 9.4 | KVU0789-14 | TIP Φ1.4mm/80A/IPX102 | |
| 10 | Tip | ||
| 10.1 | KVU0791-16 | TIP Φ1.6mm/100A-120A/IPX102 | |
| 10.2 | KVU0791-18 | TIP Φ1.8mm/120A/IPX102 | |
| 11 | KVU0757 | TIP 40-120A/IPX102/Gouging | |
| 12 | Tip | ||
| 12.1 | KVU0755-10 | Extended tip Φ1.0mm/50A/IPX102 | |
| 12.2 | KVU0755-11 | Extended tip Φ1.1mm/60A/IPX102 | |
| 12.3 | KVU0755-12 | Extended tip Φ1.2mm/70A/IPX102 | |
| 12.4 | KVU0755-14 | Extended tip Φ1.4mm/90A/IPX102 | |
| 13 | KVU0759-16 | Extended tip Φ1.6mm/100-120A/IPX102 | |
| 14 | KVF0051 | Diffuser IPX102 | |
| 15 | KVB0631 | Electrode IPX102 | |
| 16 | KVB0637 | Extended electrode IPX102 | |
| 17 | KVZ0044-01 | Plasma torch head IPX102/90° | |
| 17a | KFT8557 | "O"ring Φ19.6×16mm/IPX102/RED SIL | |
| 17b | KZN0707 | Air tube/IPX102 | |
| 17c | KZN0644 | Long air tube/IPX102 | |
| 18 | KGV0031-01 | Plasma handle manual/IPT80-100 | |
| 19 | KHJ0722 | Protection part/plasma/yellow | |
| 20 | KHQ0070 | Trigger red | |
| 21 | KHJ0893 | Tig joint/small/new type | |
| 22.1 | KVN01210063-300 | Cable assembly/IPX102/6M/2 wires/integrated | |
| 22.2 | KVN01210061-300 | Cable assembly/IPX102/6M/2 wires/separate | |
| 22.3 | KVN01210060-300 | Cable assembly/IPX102/6M/2 wires/centre adaptor | |
| 22.4 | KVN01210066-300 | Cable assembly/IPX102/6M/4 wires/centre adaptor | |
| 22.5 | KVN0121106C-22 | Cable assembly/IPX102/6M/Coaxial cable/centre adaptor | |
| 23 | KCG6009 | Spanner for P80 | |
| 24 | KZX0078 | Centre adaptor torchside plasma 5 pins |
● Complete Torch
| Code | Ref. | Description | |
| KVT03091 | Plasma torch IPX102/6M/ 1/4G /integrated/2 wires | ||
| KVT04091 | Plasma cutting torch IPX102/12M/PX torch head/1/4G/integrated/2 wires | ||
| KVT03092 | Plasma torch IPX102/6M/ 1/4G /separate/2 wires | ||
| KVT04092 | Plasma cutting torch IPX102/12M/PX torch head/1/4G/separated/2 wires | ||
| KVT03093 | Plasma torch IPX102/6M/central adaptor/2 wires | ||
| KVT04093 | Plasma cutting torch IPX102/12M/PX torch head/center adapter/2 wires | ||
| KVT030930 | Plasma torch IPX102/6M/central adaptor/4 wires | ||
| KVT040930 | Plasma cutting torch IPX102/12M/PX torch head/center adapter/4 wires | ||
| KVT03094 | Plasma torch IPX102/6M/central adapto/coaxial cabler | ||
| KVT04094 | Plasma cutting torch IPX102/12M/PX torch head/coaxial cable/center adapter | ||
