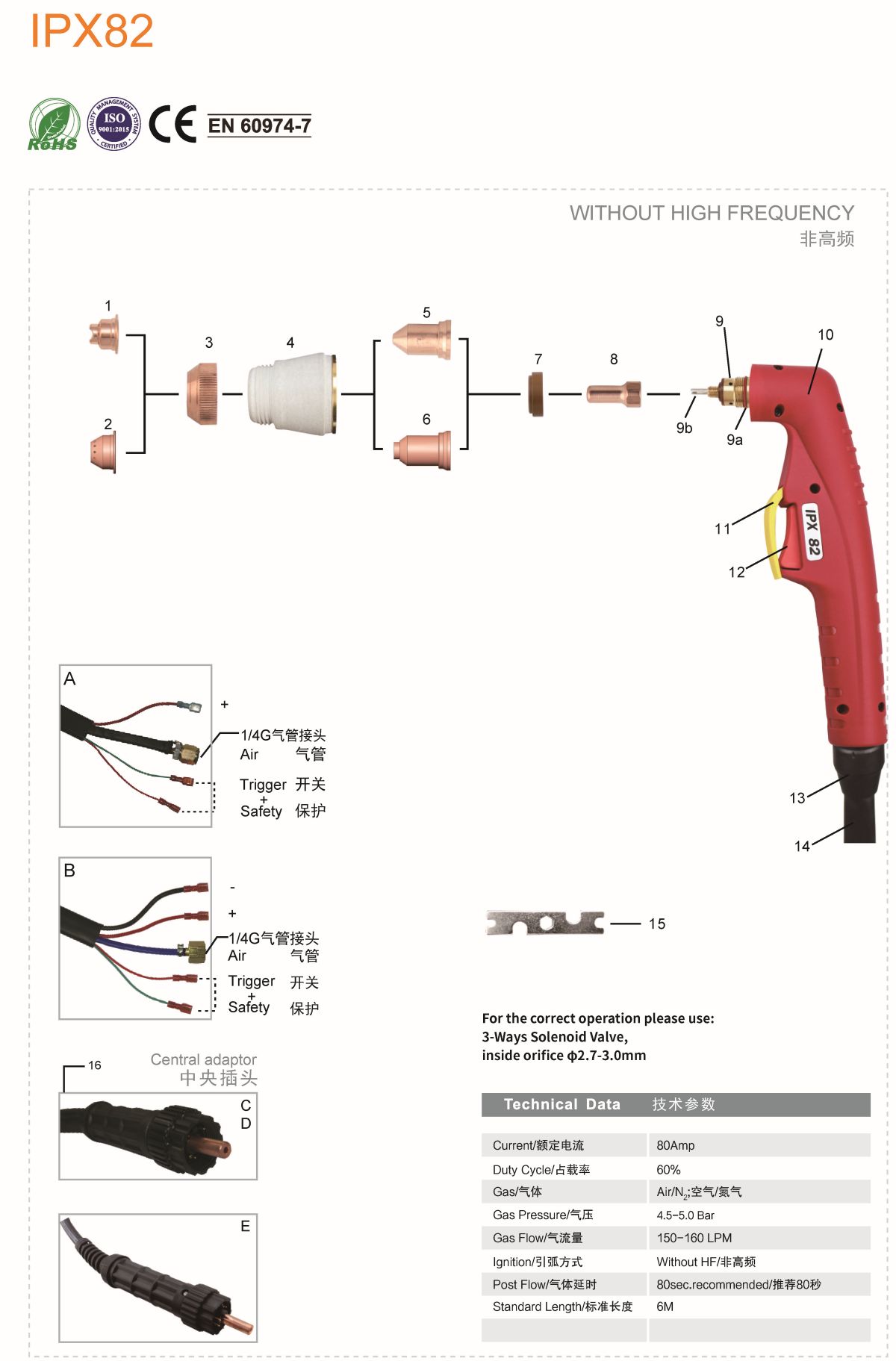

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KSM0678 | Shield cap/IPX82/Hand | |
| 2 | KSM0659 | Shield cap/IPX82/Gouging | |
| 3 | KSM0658 | Shield cap/IPX62/IPX82 | |
| 4 | KVS0630-05 | Outside nozzle IPX82/gray glass fiber | |
| 5 | Tip | ||
| 5.1 | KVU0790-09 | Tip Φ0.9mm/40A/IPX82 | |
| 5.2 | KVU0790-10 | Tip Φ1.0mm/50A/IPX82 | |
| 5.3 | KVU0790-11 | Tip Φ1.1mm/60A/IPX82 | |
| 5.4 | KVU0790-12 | Tip Φ1.2mm/70A/IPX82 | |
| 5.5 | KVU0790-13 | Tip Φ1.3mm/80A/IPX82 | |
| 6 | KVU0793 | Tip 30A-80A/IPX82/GOUGING | |
| 7 | KVF0050 | Diffuser IPX82 | |
| 8 | KVB1669 | 52558 | Electrode IPT80/IPX82 |
| 9 | KVZ0692 | Torch head IPX82/90° | |
| 9a | KFT0709 | 51620.6 | "O"ring Φ15XΦ18 IPT80 RED SIL |
| 9b | KZN0773 | 9800.42 | Air tube/IPT80/IPX82 |
| 10 | KGV0038-01 | Plasma handLe manuale/red/IPX torch head | |
| 11 | KHJ0722 | Protection part/plasma/yellow | |
| 12 | KHQ0070 | Trigger 21.8MM red | |
| 13 | KHJ0893 | Joint/small/new type | |
| 14 | Cable assembly | ||
| 14.1 | KVN01210063-300 | Cable assembly/IPX82/6M/2 wires/integrated | |
| 14.2 | KVN01210061-300 | Cable assembly/IPX82/6M/2 wires/separatae | |
| 14.3 | KVN01210060-300 | Cable assembly/IPX82/6M/2 wires/centre adaptor | |
| 14.4 | KVN01210066-300 | Cable assembly/IPX82/6M/4 wires/centre adaptor/ | |
| 14.5 | KVN0121106C-22 | Cable assembly/IPX82/6M/coaxial cable/centre adaptor | |
| 15 | KCG6006 | Spanner for plasma | |
| 16 | KZX0078 | Centre adaptor torchside plasma 5 pins |
● Complete Torch
| Code | Ref. | Description | |
| KVT03081 | Plasma torch IPX82/6M/ 1/4G /integrated/2 wires | ||
| KVT04081 | Plasma cutting torch IPX82/12M/PX torch head/1/4G/integrated/2 wires | ||
| KVT03082 | Plasma torch IPX82/6M/ 1/4G/separatae/2 wires | ||
| KVT04082 | Plasma cutting torch IPX82/12M/PX torch head/1/4G/separated/2 wires | ||
| KVT03083 | Plasma torch IPX82/6M/central adaptor/2 wires | ||
| KVT04083 | Plasma cutting torch IPX82/12M/PX torch head/center adapter/2 wires | ||
| KVT030830 | Plasma torch IPX82/6M/central adaptor/4 wires | ||
| KVT040830 | Plasma cutting torch IPX82/12M/PX torch head/center adapter/4 wires | ||
| KVT03084 | Plasma torch IPX82/6M/central adaptor/coaxial cable | ||
| KVT04084 | Plasma cutting torch IPX82/12M/PX torch head/coaxial cable/center adapter | ||
