● Product Parameters

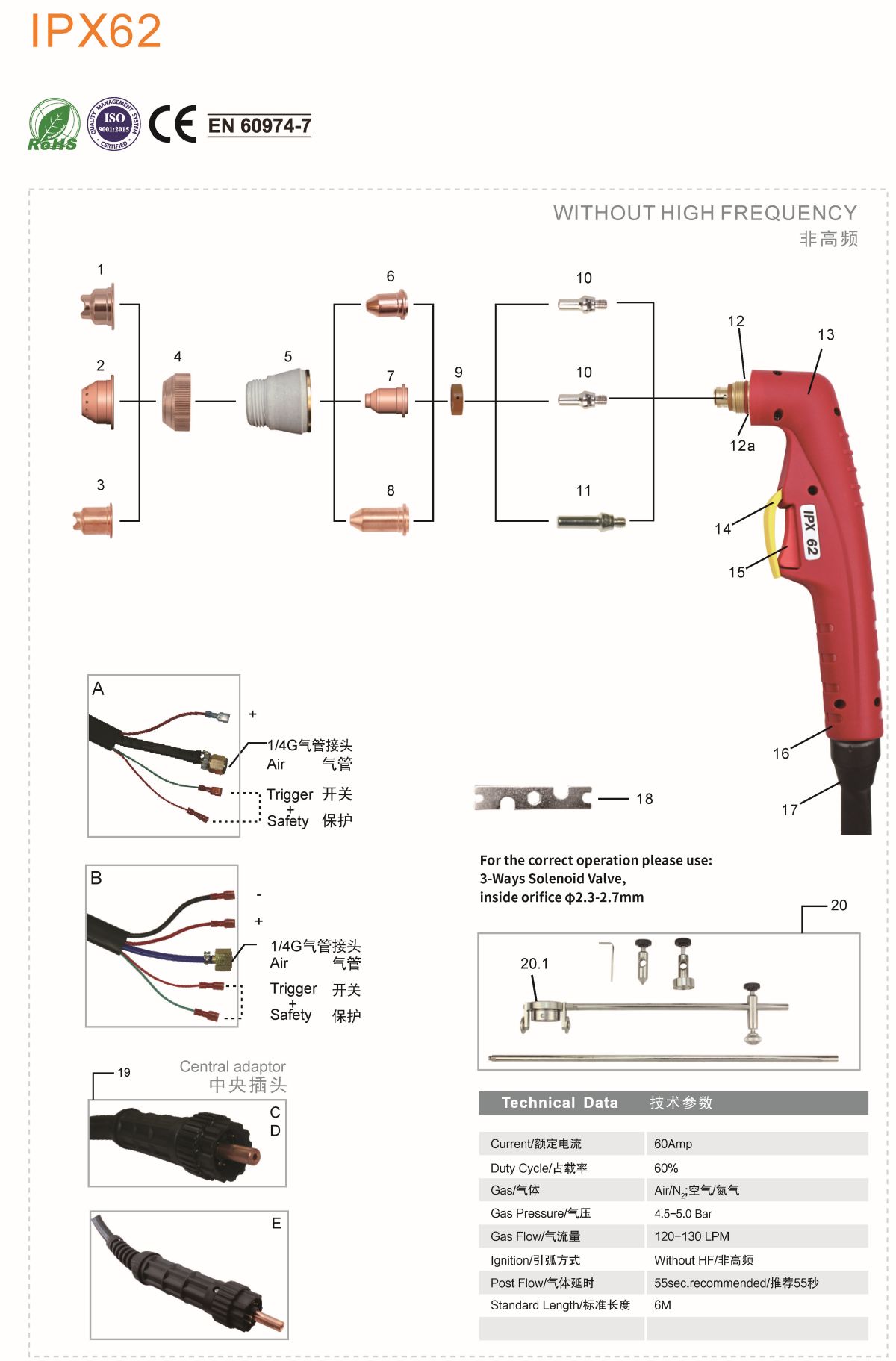

| Position | Code | Ref. | Description |
| 1 | KSM0620 | Shield cap/IPX62/Hand | |
| 2 | KSM0675 | Shield cap/IPX62/Gouging | |
| 3 | KSM0679 | Extended Shield cap/IPX62 | |
| 4 | KSM0658 | Shield cap/IPX62/IPX82 | |
| 5 | KVS0632-05 | Outside nozzle IPX62/gray glass fiber | |
| 6 | Tip | ||
| 6.1 | KVU0792-08 | Tip Φ0.8mm/30A/IPX62 | |
| 6.2 | KVU0792-09 | Tip Φ0.9mm/40A/IPX62 | |
| 6.3 | KVU0792-10 | Tip Φ1.0mm/50A/IPX62 | |
| 6.4 | KVU0792-11 | Tip Φ1.1mm/60A/IPX62 | |
| 7 | KVU0756 | Tip 30A-60A/IPX62/Gouging | |
| 8 | Tip | ||
| 8.1 | KVU0794-08 | Extended tip Φ0.8mm/30A/IPX62 | |
| 8.2 | KVU0794-09 | Extended tip Φ0.9mm/40A/IPX62 | |
| 8.3 | KVU0794-10 | Extended tip Φ1.0mm/50A/IPX62 | |
| 8.4 | KVU0794-11 | Extended tip Φ1.1mm/60A/IPX62 | |
| 9 | KVF0052 | Diffuser IPX62 | |
| 10 | KVB1048 | 52582 | Electrode IPT20C-60/back striking |
| 11 | KVB1049 | 52583 | Extended electrode IPT20C-60/back striking |
| 12 | KVZ0076 | IPX-45/60 hand torch head | |
| 12a | KFT0709 | 51620.6 | "O"ring Φ15XΦ18 IPX62 RED SIL |
| 13 | KGV0038-01 | Plasma handle manual/PT20-60/IPX torch head | |
| 14 | KHJ0722 | Protection part/Plasma/Yellow | |
| 15 | KHQ0070 | 7301.2 | Trigger red |
| 16 | KHJ0898 | Plasma Joint/IPT20-60 | |
| 17 | Cable assembly | ||
| 17.1 | KVN01106063-22 | Cable assembly/IPX62/6M/2 wires/integrated | |
| 17.2 | KVN01106061-22 | Cable assembly/IPX62/6M/2 wires/separate | |
| 17.3 | KVN01106060-22 | Cable assembly/IPX62/6M/2 wires/centre adaptor | |
| 17.4 | KVN01106066-22 | Cable assembly/IPX62/6M/4 wires/centre adaptor | |
| 17.5 | KVN0110606C-22 | Cable assembly/IPX62/6M/coaxial cable/centre adaptor | |
| 18 | KCG6006 | Spanner for Plasma | |
| 19 | KZX0078 | Central adaptor torch side Plasma 5 pins | |
| 20 | KSM0032 | Circle cutting attachment/IPT20-60 | |
| 20.1 | KSM0702 | Wheel spacer with spanner IPT20-60 |
● Complete Torch
| Code | Ref. | Description | |
| KVT03071 | Plasma torch IPX62/6M/ 1/4G /integrated/2 wires | ||
| KVT03072 | Plasma torch IPX62/6M/ 1/4G /separate/2 wires | ||
| KVT03073 | Plasma torch IPX62/6M/central adaptor/2 wires | ||
| KVT030730 | Plasma torch IPX62/6M/central adaptor/4 wires | ||
| KVT03074 | Plasma torch IPX62/6M/central adaptor/coaxial cable | ||
