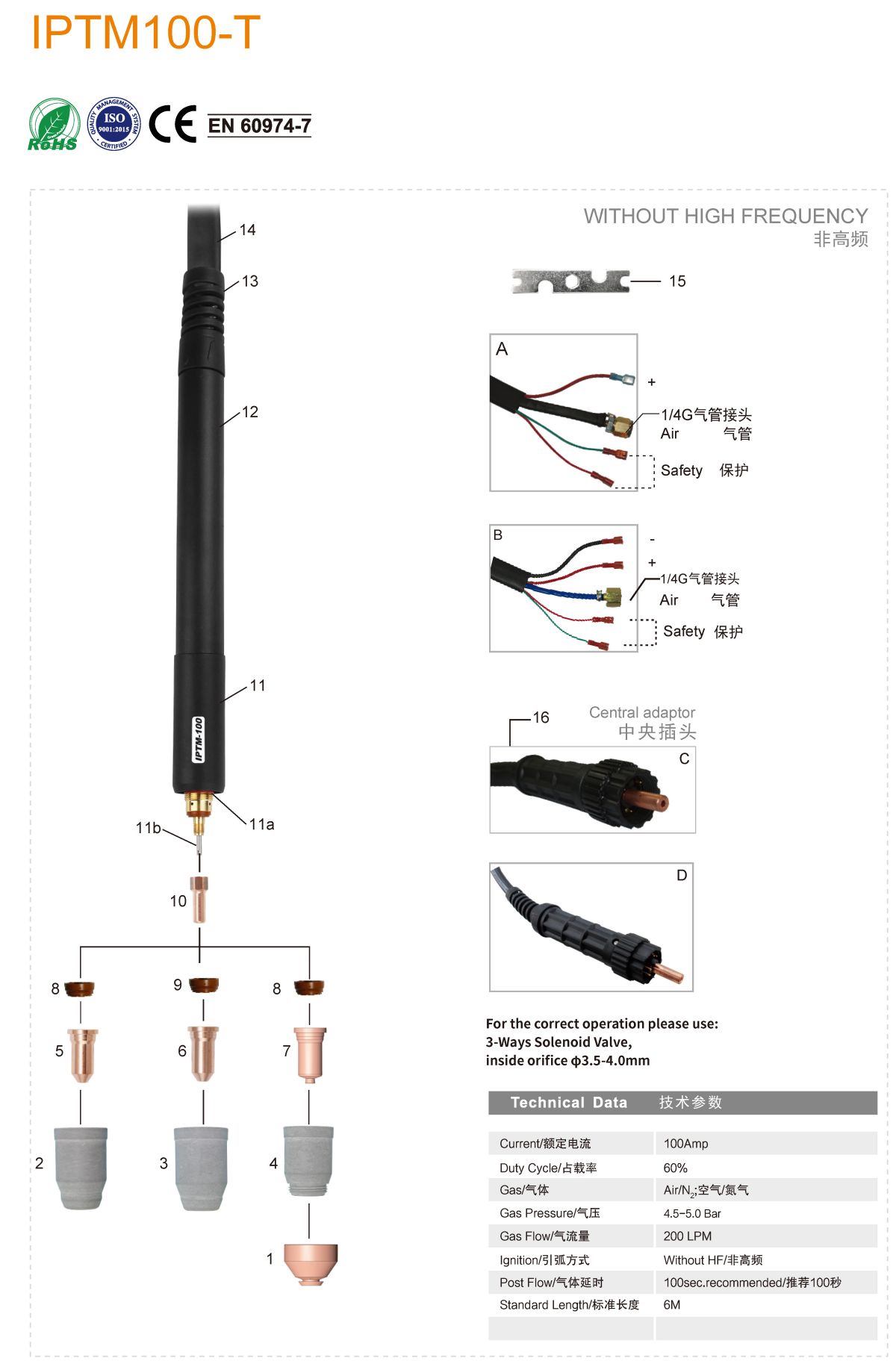

● Product Parameters
| Position | Code | Ref. | Description |
| 1 | KSM1064 | 60508 | Shield cap/gouging |
| 2 | KVS1678-05 | 60500 | Outside IPT100/30-70A/Gray glass fiber |
| 3 | KVS1676-05 | 60501 | Outside nozzle IPT100/80-120A/Gray glass fiber |
| 4 | KVS1674-05 | 60502 | Outside nozzle IPT100/Contact cut and gouging |
| 5 | Tip | ||
| 5.1 | KVU1678-10 | 51246.1 | Tip Φ1.0mm/50A/ IPT100/back striking |
| 5.2 | KVU1678-11 | 51246.11 | Tip Φ1.1mm/60A/ IPT100/back striking |
| 5.3 | KVU1678-12 | 51246.12 | Tip Φ1.2mm/70A/ IPT100/back striking |
| 6 | Tip | ||
| 6.1 | KVU1676-14 | 51248.14 | Tip Φ1.4mm/90A/ IPT100/back striking |
| 6.2 | KVU1676-15 | 51248.15 | Tip Φ1.5mm/100A/ IPT100/back striking |
| 6.3 | KVU1676-16 | 51248.16 | Tip Φ1.6mm/100-120A/ IPT100/back striking |
| 7 | KVU1687-22 | 51278G.22 | Tip gouging IPT100/120A/gouing/back striking |
| 8 | KVF1662 | 60025 | Diffuser IPT100/30-70A |
| 9 | KVF1661 | 60026 | Diffuser IPT100/80-120A and gouging |
| 10 | KVB1676 | 52556 | Electrode plasma IPT100 |
| 11 | KVZ0722 | Plasma machine torch head IPTM100-T | |
| 11a | KFT0705 | "O"ring Φ 18X21 PT100 red silicone/HS70/-40~230℃ | |
| 11b | KZN0774 | Air tube/PT100 | |
| 12 | KGV0706 | Fiberglass position tube/PTM torch | |
| 13 | KHJ0931 | Cable suppor spring/big/TIG,PLASMA/black/minoo | |
| 14 | Cable assembely | ||
| 14.1 | KVN01210061-300 | Cable assembely/IPT100/IPX102/6M/2 wires/separated | |
| 14.2 | KVN01210063-300 | Cable assembely/IPT100/IPX102/6M/2 wires/integrated | |
| 14.3 | KVN01210060-300 | Cable assembely/IPT100/IPX102/6M/2 wires/centre adapter | |
| 14.4 | KVN1121006C-300 | Cable assembely/IPT100/IPX102/6M/coaxial cable/6*8/centre adapter | |
| 15 | KCG6006 | Spanner for Plasma | |
| 16 | KZX0078 | Central adaptor torch side plasma 5 pins |
● Complete Torch
| Code | Ref. | Description | |
| KVT33061-00 | Plasma cutting torch IPTM100-T/6M/1/4G/integrated/back striking | ||
| KVT33062-00 | Plasma cutting torch IPTM100-T/6M/1/4G/separated/back striking | ||
| KVT33063-00 | Plasma cutting torch IPTM100-T/6M/center adaptor/back striking | ||
| KVT33064-00 | Plasma cutting torch IPTM100-T/6M/coaxial cable/center adaptor/back striking | ||
