● Product Parameters

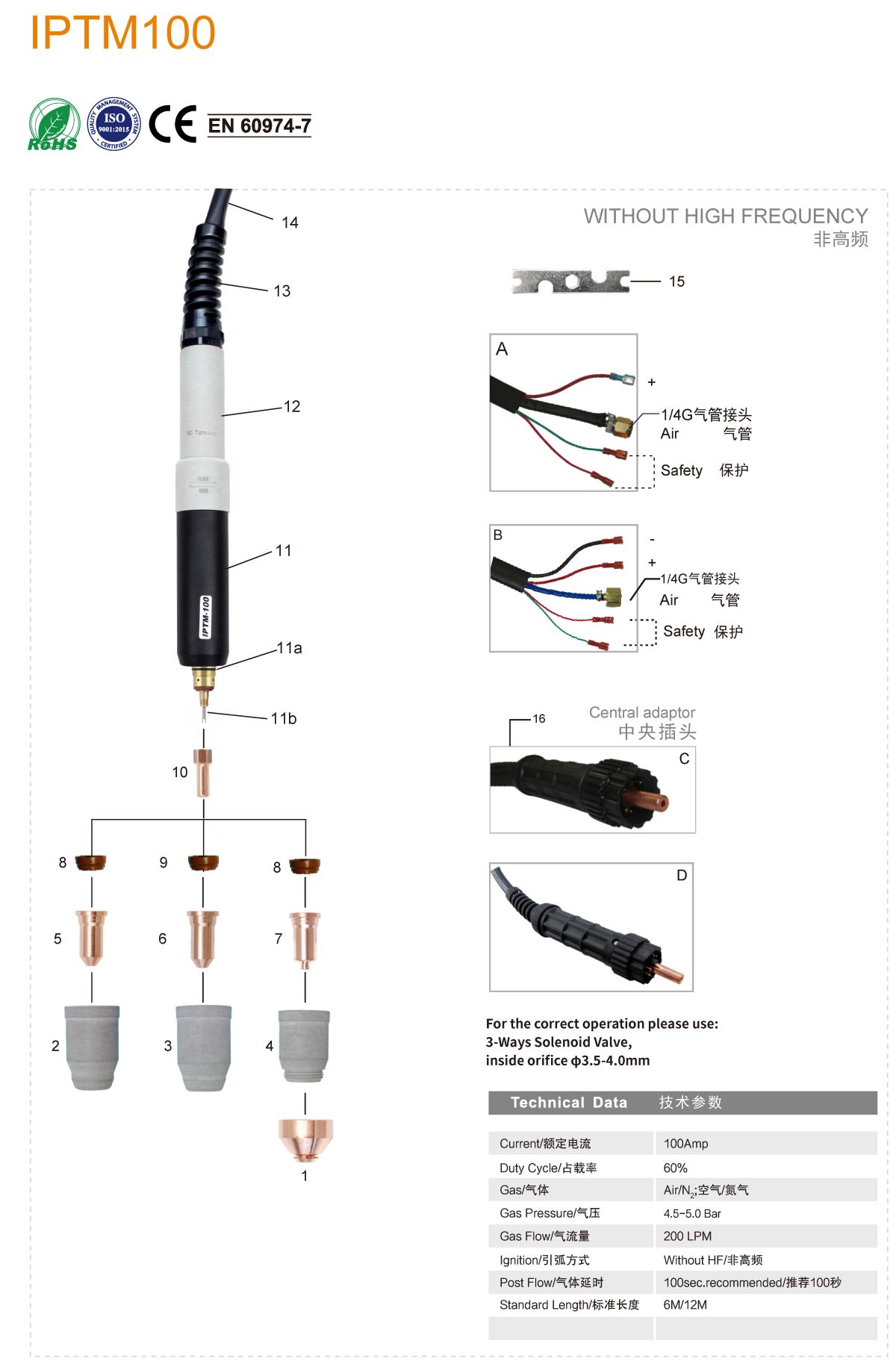

| Position | Code | Ref. | Description |
| 1 | KSM1064 | 60508 | Shield cap/gouging |
| 2 | KVS1678-05 | 60500 | Outside IPT100/30-70A/Gray glass fiber |
| 3 | KVS1676-05 | 60501 | Outside nozzle IPT100/80-120A/Gray glass fiber |
| 4 | KVS1674-05 | 60502 | Outside nozzle IPT100/Contact cut and gouging |
| 5 | Tip | ||
| 5.1 | KVU1678-10 | 51246.1 | Tip Φ1.0mm/50A/ IPT100/back striking |
| 5.2 | KVU1678-11 | 51246.11 | Tip Φ1.1mm/60A/ IPT100/back striking |
| 5.3 | KVU1678-12 | 51246.12 | Tip Φ1.2mm/70A/ IPT100/back striking |
| 6 | Tip | ||
| 6.1 | KVU1676-14 | 51248.14 | Tip Φ1.4mm/90A/ IPT100/back striking |
| 6.2 | KVU1676-15 | 51248.15 | Tip Φ1.5mm/100A/ IPT100/back striking |
| 6.3 | KVU1676-16 | 51248.16 | Tip Φ1.6mm/100-120A/ IPT100/back striking |
| 7 | KVU1687-22 | 51278G.22 | Tip gouging IPT100/120A/gouing/back striking |
| 8 | KVF1662 | 60025 | Diffuser IPT100/30-70A |
| 9 | KVF1661 | 60026 | Diffuser IPT100/80-120A and gouging |
| 10 | KVB1676 | 52556 | Electrode plasma IPT100 |
| 11 | KVZ0630 | IPXM100 Torch head | |
| 11a | KFT0705 | 51190.41 | "O"ring Φ18x21mm IPT100 |
| 11b | KZN0774 | 9700.48 | Air tube IPT100 |
| 12 | KHJ0110 | Plasma machine handle kit | |
| 13 | Spring support | ||
| 13.1 | KHJ0899 | Spring support/PG21/Plasma/coaxial cable | |
| 13.2 | KHJ0899-02 | Spring support/PG21/Plasma/EPDM | |
| 14 | Cable assembly | ||
| 14.1 | KVN11210063-22 | Cable assembly/IPTM100/6M/ 1/4G /2 wires/integrated | |
| 14.2 | KVN11210123-22 | Cable assembly/IPTM100/12M/ 1/4G /2 wires/integrated | |
| 14.3 | KVN11210061-22 | Cable assembly/IPTM100/6M/ 1/4G /2 wires/separation | |
| 14.4 | KVN11210121-22 | Cable assembly/IPTM100/12M/ 1/4G /2 wires/separation | |
| 14.5 | KVN11210060-22 | Cable assembly/IPTM100/6M/2 wires/centre adaptor | |
| 14.6 | KVN11210120-22 | Cable assembly/IPTM100/12M/2 wires/centre adaptor | |
| 14.7 | KVN1121106C-22 | Cable assembly/IPTM100/6M/central adaptor/coaxial cable | |
| 14.8 | KVN1121112C-22 | Cable assembly/IPTM100/12M/central adaptor/coaxial cable | |
| 15 | KCG6006 | Spanner For Plasma | |
| 16 | KZX0078 | Central adaptor torchside Plasma 5 pins |
● Complete Torch
| Code | Ref. | Description | |
| KVT13061-00 | Plasma machine torch IPTM100/6M/ 1/4G /integrated/2 wires/back striking | ||
| KVT14061-00 | Plasma machine torch IPTM100/12M/ 1/4G /integrated/2 wires/back striking | ||
| KVT13062-00 | Plasma machine torch IPTM100/6M/ 1/4G /separation/2 wires/back striking | ||
| KVT14062-00 | Plasma machine torch IPTM100/12M/ 1/4G /separation/2 wires/back striking | ||
| KVT13063-00 | Plasma machine torch IPTM100/6M/central adaptor/2 wires/back striking | ||
| KVT14063-00 | Plasma machine torch IPTM100/12M/central adaptor/2 wires/back striking | ||
| KVT13064-00 | Plasma machine torch IPTM100/6M/central adaptor/coaxial cable/back striking | ||
| KVT14064-00 | Plasma machine torch IPTM100/12M/central adaptor/coaxial cable/back striking | ||
