● Product Parameters

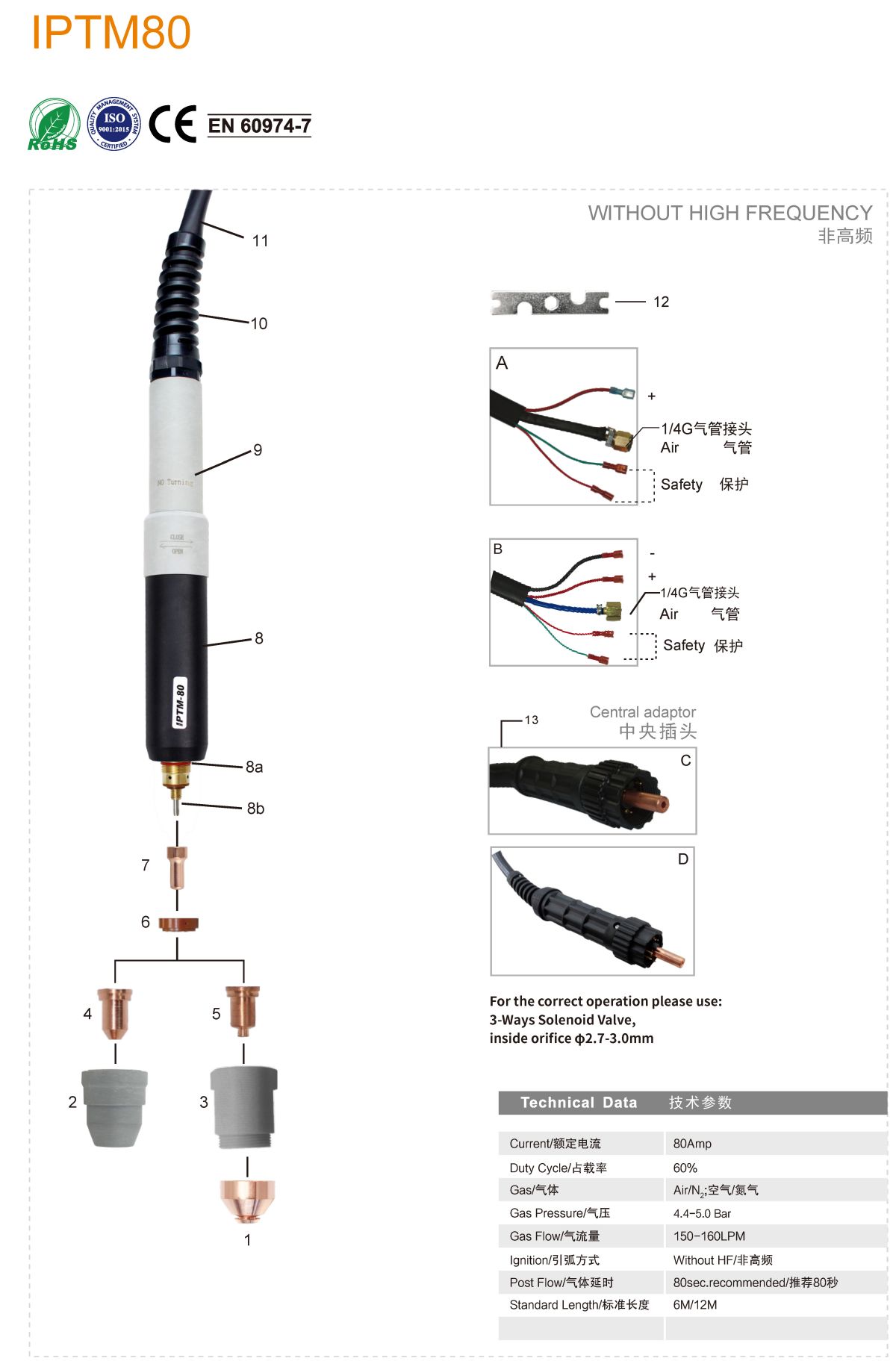

| Position | Code | Ref. | Description |
| 1 | KSM1064 | 60508 | Shield cap/IPT80/gouging |
| 2 | KVS1667-05 | 60510 | Outside nozzle IPT80/gray glass fiber |
| 3 | KVS1672-05 | 60511 | Outside nozzle IPT80/gouging |
| 4 | Tip | ||
| 4.1 | KVU1670-10 | 51311.1 | Tip Φ1.0mm 50A/IPT80/back striking |
| 4.2 | KVU1670-11 | 51311.11 | Tip Φ1.1mm 60A/IPT80/back striking |
| 4.3 | KVU1670-12 | 51311.12 | Tip Φ1.2mm 70A/IPT80/back striking |
| 4.4 | KVU1670-13 | 51311.13 | Tip Φ1.3mm 80A/IPT80/back striking |
| 5 | KVU1675-16 | 51311G.16 | Tip Φ1.6mm/80A/IPT80/gouging/back striking |
| 6 | KVF1665 | 60027 | Diffuser IPT80 |
| 7 | KVB1669 | 52558 | Electrode Plasma IPT80 |
| 8 | KVZ0621 | Torch head IPTM80/IPXM82 | |
| 8a | KFT0709 | 51620.6 | "O"ring Φ18x15mm IPT80 RED SIL |
| 8b | KZN0773 | 9800.42 | Air tube/IPT80 |
| 9 | KHJ0110 | Plasma machine handle kit | |
| 10 | Spring support | ||
| 10.1 | KHJ0899 | Spring support/PG21/Plasma/coaxial cable | |
| 10.2 | KHJ0899-02 | Spring support/PG21/Plasma/EPDM | |
| 11 | Cable assembly | ||
| 11.1 | KVN11210063-22 | Cable assembly/IPTM80/6M/ 1/4G /2 wires/integrated | |
| 11.2 | KVN11210123-22 | Cable assembly/IPTM80/12M/ 1/4G /2 wires/integrated | |
| 11.3 | KVN11210061-22 | Cable assembly/IPTM80/6M/ 1/4G /2 wires/separation | |
| 11.4 | KVN11210121-22 | Cable assembly/IPTM80/12M/ 1/4G /2 wires/separation | |
| 11.5 | KVN11210060-22 | Cable assembly/IPTM80/6M/2 wires/centre adaptor | |
| 11.6 | KVN11210120-22 | Cable assembly/IPTM80/12M/2 wires/centre adaptor | |
| 11.7 | KVN1121106C-22 | Cable assembly/IPTM80/6M/central adaptor/coaxial cable | |
| 11.8 | KVN1121112C-22 | Cable assembly/IPTM80/12M/central adaptor/coaxial cable | |
| 12 | KCG6006 | Spanner For Plasma | |
| 13 | KZX0078 | Central adaptor torchside Plasma 5 pins |
● Complete Torch
| Code | Ref. | Description | |
| KVT13051-00 | Plasma machine torch IPTM80/6M/ 1/4G /integrated/2 wires/back striking | ||
| KVT14051-00 | Plasma machine torch IPTM80/12M/ 1/4G /integrated/2 wires/back striking | ||
| KVT13052-00 | Plasma machine torch IPTM80/6M/ 1/4G /separation/2 wires/back striking | ||
| KVT14052-00 | Plasma machine torch IPTM80/12M/ 1/4G /separation/2 wires/back striking | ||
| KVT13053-00 | Plasma machine torch IPTM80/6M/central adaptor/2 wires/back striking | ||
| KVT14053-00 | Plasma machine torch IPTM80/12M/central adaptor/2 wires/back striking | ||
| KVT13054-00 | Plasma machine torch IPTM80/6M/central adaptor/coaxial cable/back striking | ||
| KVT14054-00 | Plasma machine torch IPTM80/12M/central adaptor/coaxial cable/back striking | ||
